3-Inch Flush-Mount Off-Road Spot Light with Perimeter DRL

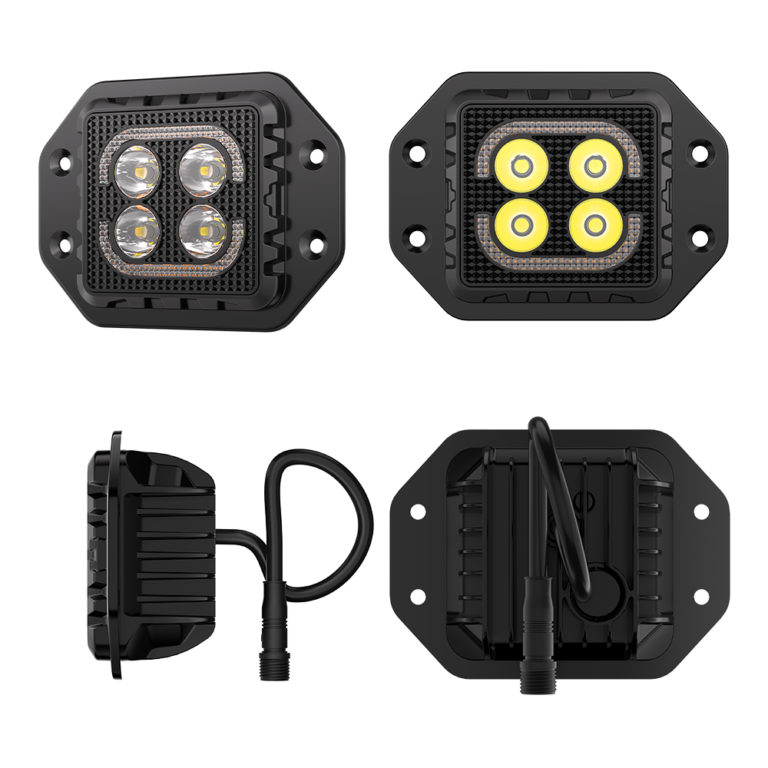

This 3-inch flush-mount off-road spot light kit uses a pair of compact B-series four-optic lamps with a yellow perimeter DRL and a supplied wiring harness. The flush-mount side-ear housing and perimeter DRL treatment are the main selection differences for buyers comparing compact four-optic off-road spot-light configurations.

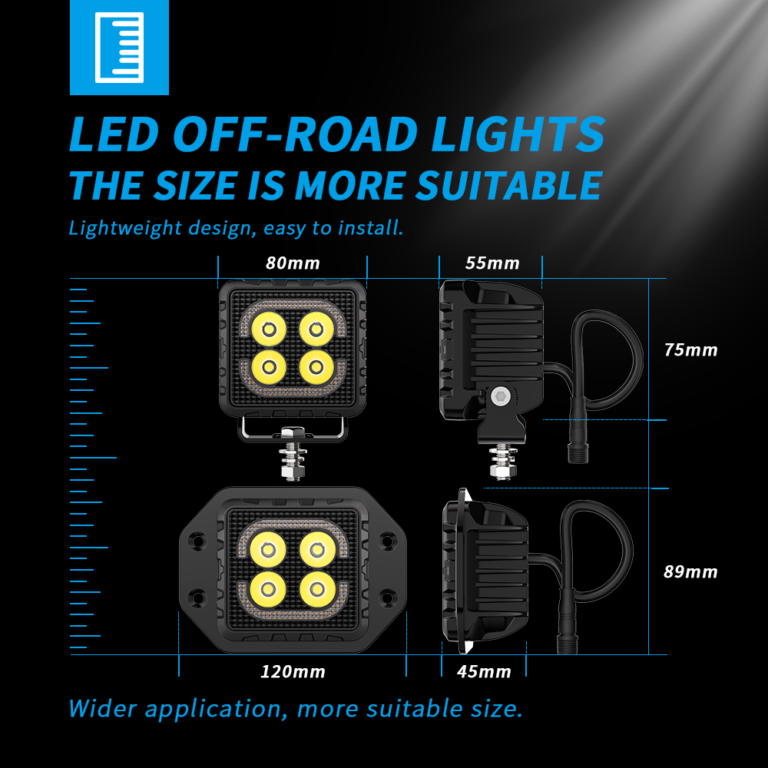

Confirmed catalog data includes 9–36V DC input, 18.6W rated power at 12V, 1.54A current draw, IP68/IP69K protection and a 3 m cable. The lamp uses four 5W CSP3535 main LEDs with eighteen 0.5W SMD3030 DRL LEDs and 4400 lm theoretical output. The aluminum flush-mount housing measures 120 × 89 × 45 mm, giving distributors and project buyers clear optical, electrical, mounting and kit-configuration data for comparison. Beam-distance claims are intentionally omitted because the canonical catalog does not contain a usable BF3-B4 distance value.
