3-Inch Flush-Mount Off-Road Spot Light Kit

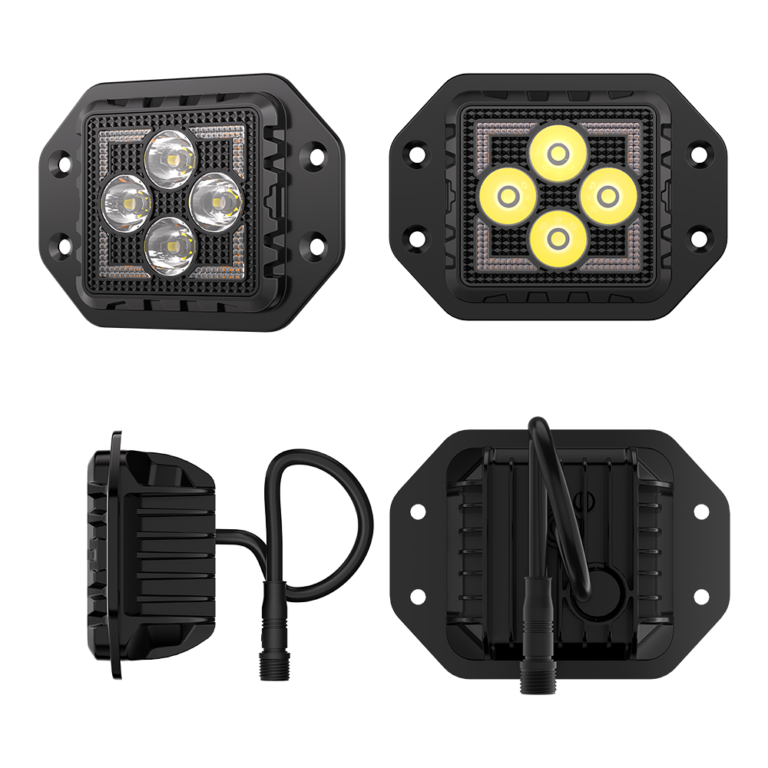

This 3-inch flush-mount off-road spot light kit uses a pair of compact B-series four-optic lamps with yellow accent lighting and a supplied wiring harness. The flush-mount side-ear housing is the key selection difference from the bracket-mount A-series version, while the spot-beam function remains aligned with the same off-road auxiliary-lighting task.

Confirmed catalog data includes 9–36V DC input, 18W rated power at 12V, 1.5A current draw, IP68/IP69K protection and a 3 m cable. The lamp uses four 5W CSP3535 main LEDs with twelve 0.5W SMD3030 accent/DRL LEDs, with 3200 lm theoretical output and 1301 lm measured luminous flux. The aluminum flush-mount housing measures 120 × 89 × 45 mm, giving distributors and project buyers clear mounting, electrical and kit-configuration data for comparison.
