3-Inch Bracket-Mount Off-Road Spot Light Kit

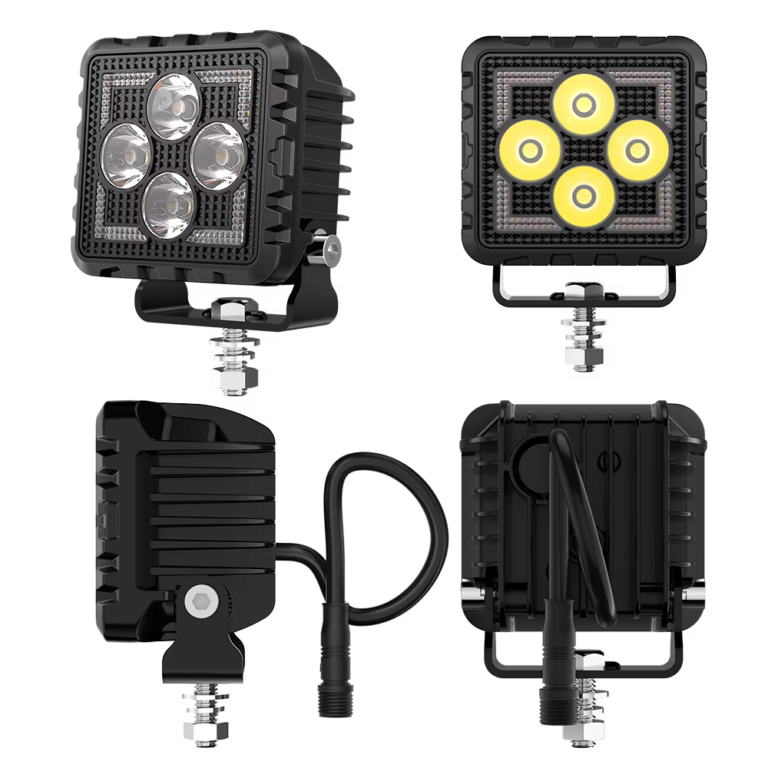

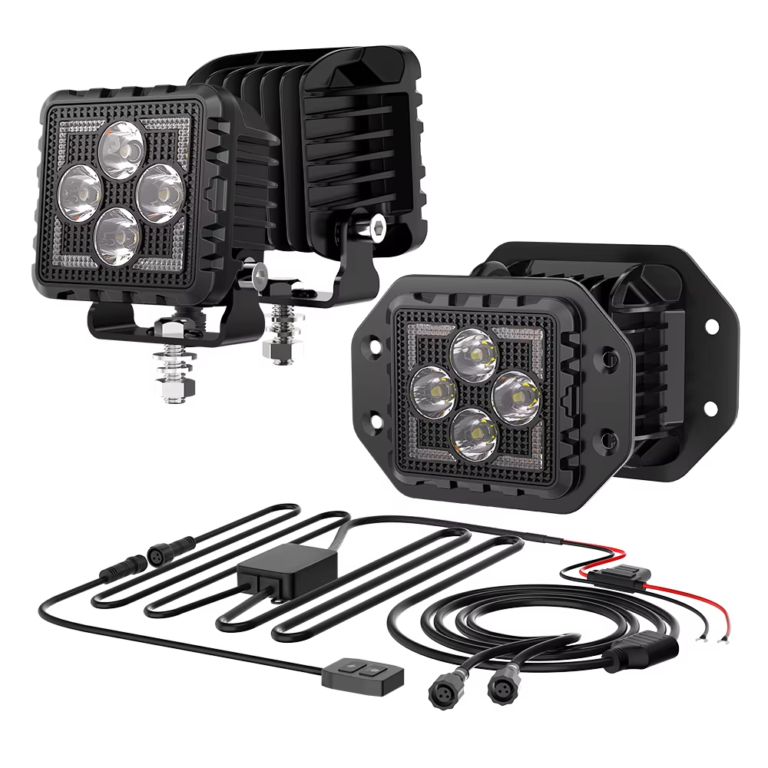

This 3-inch bracket-mount off-road spot light kit uses a pair of compact A-series four-optic lamps with yellow corner DRL accents and a supplied wiring harness. The bottom U-shaped bracket is the key selection difference from the flush-mount B-series version, while the spot-beam function remains aligned with the same off-road auxiliary-lighting task.

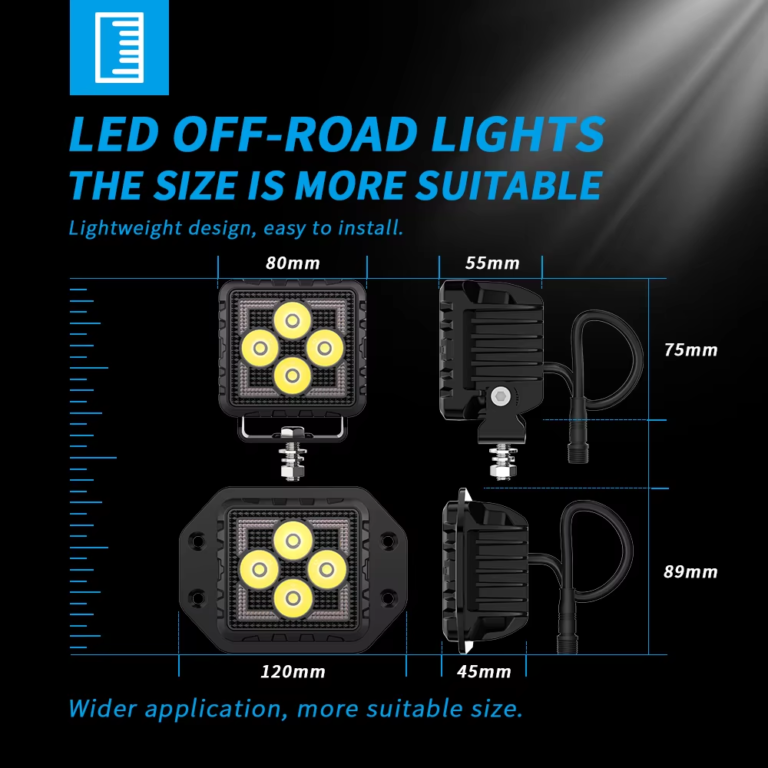

Confirmed catalog data includes 9–36V DC input, 18W rated power at 12V, 1.5A current draw, IP68/IP69K protection and a 3 m cable. The lamp uses four 5W CSP3535 main LEDs with twelve 0.5W SMD3030 DRL LEDs, with 3200 lm theoretical output, 1296 lm measured luminous flux and a 1 lux test point at 150 m. The aluminum bracket-mounted envelope is approximately 80 × 90 × 55 mm, giving distributors and project buyers clear optical, electrical, mounting and kit-configuration data for comparison.
