3-Inch Bracket-Mount Combo-Beam Off-Road Light Kit

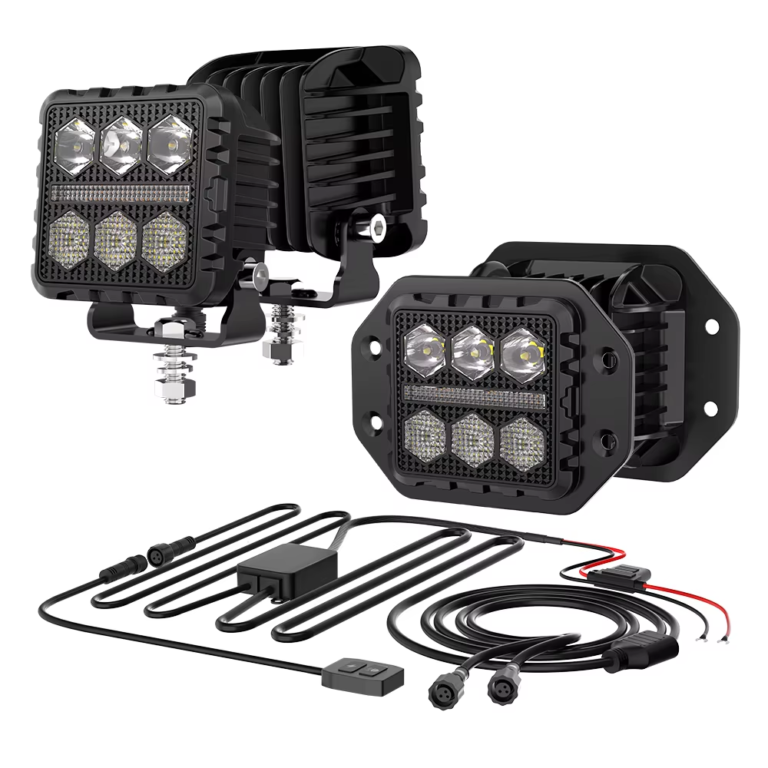

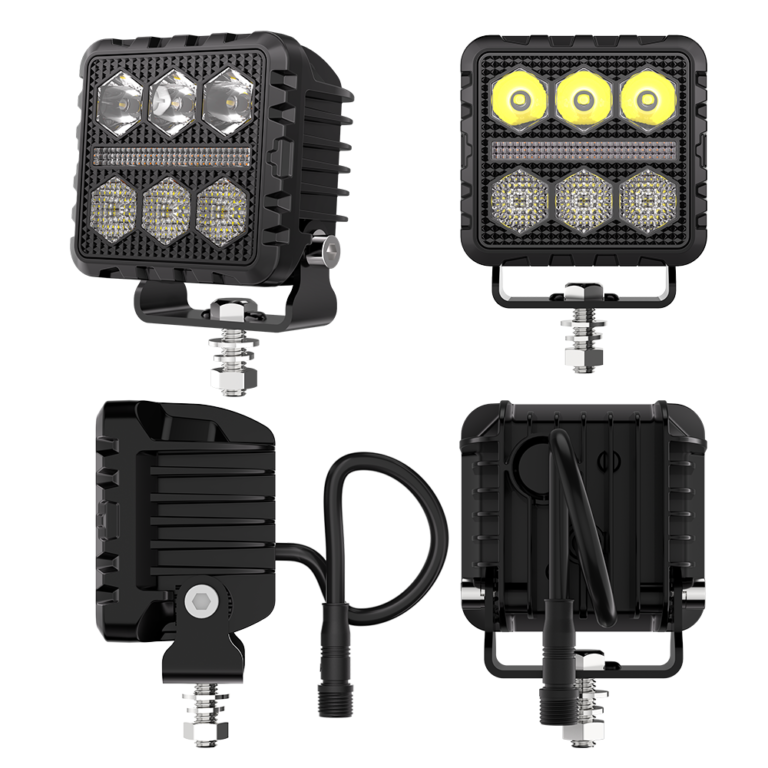

This 3-inch bracket-mount combo-beam off-road light kit uses a pair of compact A-series six-optic lamps with a yellow center DRL bar and a supplied wiring harness. Its Spot + Flood beam designation combines forward-focused and broader auxiliary-lighting roles, while the bottom U-shaped bracket distinguishes it from the flush-mount B-series version.

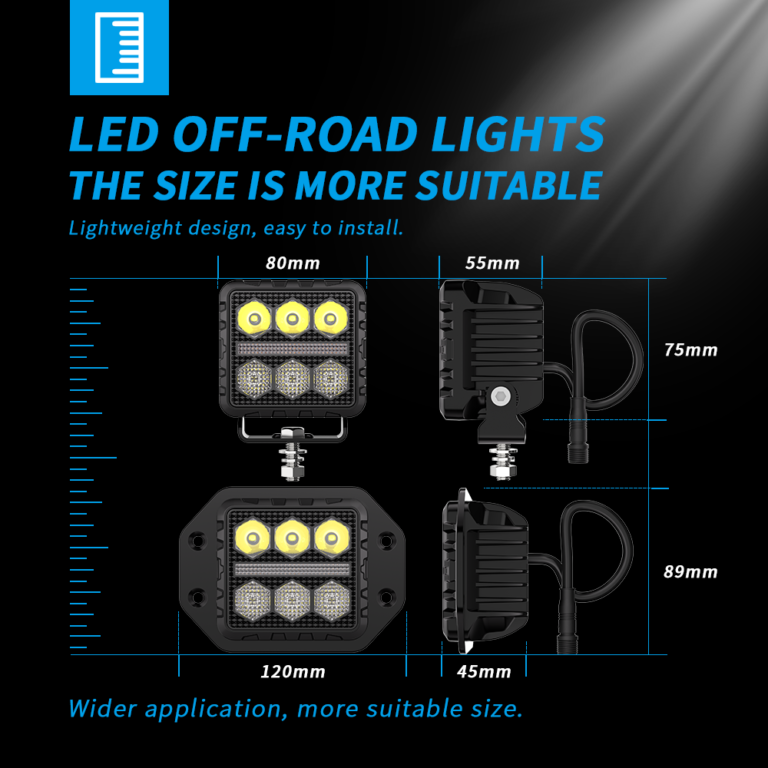

Confirmed catalog data includes 9–36V DC input, 17.8W rated power at 12V, 1.48A current draw, IP68/IP69K protection and a 3 m cable. The lamp uses six 5W CSP3535 main LEDs with six 0.5W SMD3030 DRL LEDs, with 2400 lm theoretical output, 1428 lm measured luminous flux and a 1 lux test point at 112 m. The aluminum bracket-mounted envelope is approximately 80 × 90 × 55 mm, giving distributors and project buyers clear beam, electrical, mounting and kit-configuration data for comparison.
