3-Inch Bracket-Mount Off-Road Spot Light with Perimeter DRL
SKU: BF3-A4por
✓
3-Inch Bracket-Mount Off-Road Spot Light with Perimeter DRL
SET+ Wire harness
SKU: BF3-A4por
Contact for Price
In stock
This 3-inch bracket-mount off-road spot light kit uses a pair of compact A-series four-optic lamps with a yellow perimeter DRL and a supplied wiring harness. The bottom U-shaped bracket and perimeter DRL treatment are the main selection differences for buyers comparing compact four-optic off-road spot-light configurations.
Confirmed catalog data includes 9–36V DC input, 18.5W rated power at 12V, 1.51A current draw, IP68/IP69K protection and a 3 m cable. The lamp uses four 5W CSP3535 main LEDs with eighteen 0.5W SMD3030 DRL LEDs, with 4400 lm theoretical output and a 1 lux test point at 129 m. The aluminum bracket-mounted envelope is approximately 80 × 90 × 55 mm, giving distributors and project buyers clear optical, electrical, mounting and kit-configuration data for comparison.
Voltage
9-36V DC
Rated Power
18.5W @ 12V
Current
1.51A @ 12V
LED Configuration

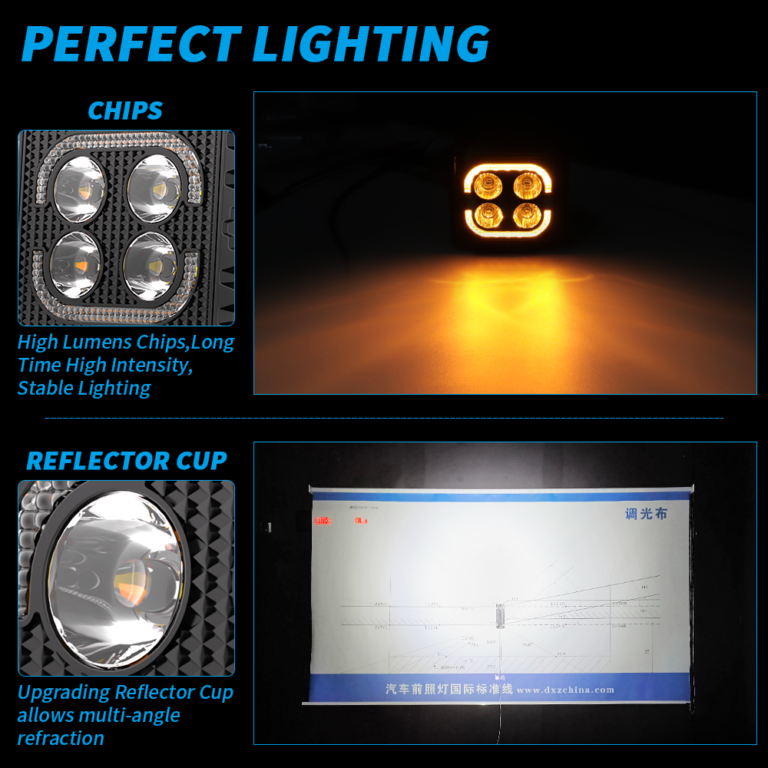

Main 4 × 5W CSP3535 + DRL 18 × 0.5W SMD3030
Beam Pattern
Spot
Light Color
White + Yellow
Theoretical Lumens
4400 lm
Illuminance Test Point
1 lux @ 129 m
IP Rating

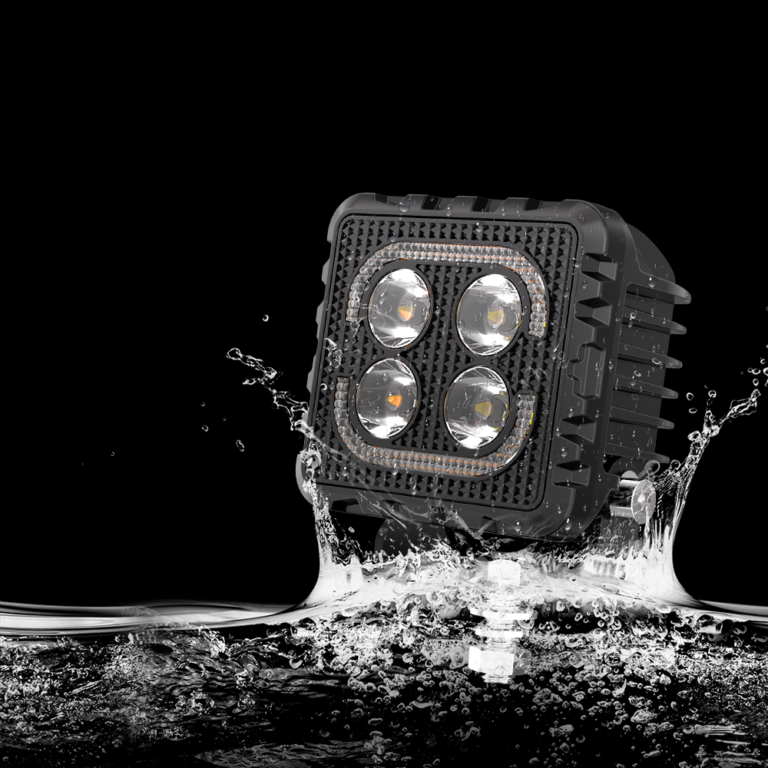

IP68/IP69K
Operating Temperature
-40°C to 85°C
Cable Length
3 m
Certification
CE / ECE R10
Housing Material
Aluminum
Product Form

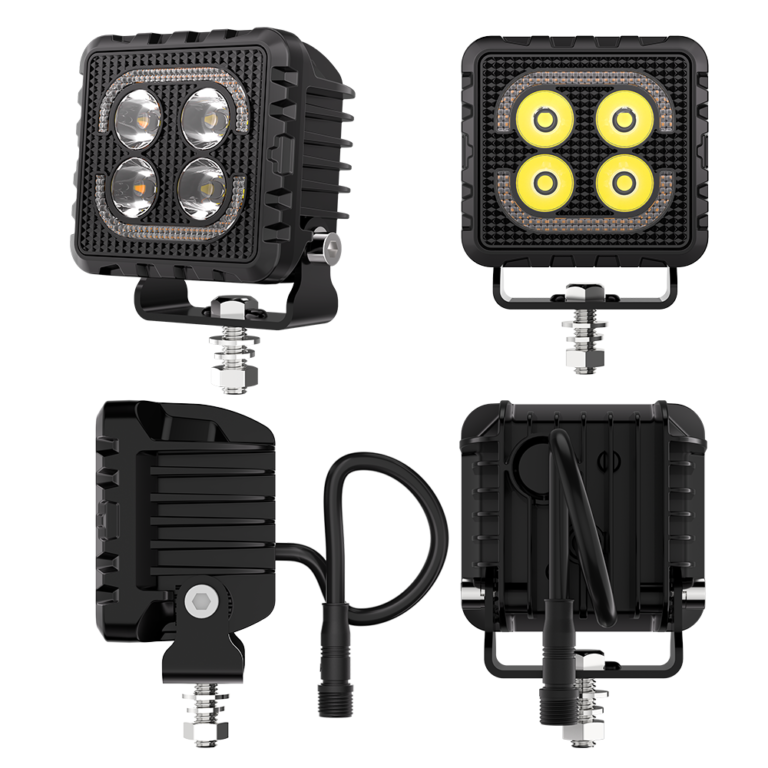

3-inch bracket-mount square LED pod pair
Lamp Dimensions
80 × 90 × 55 mm overall envelope
Mounting Type

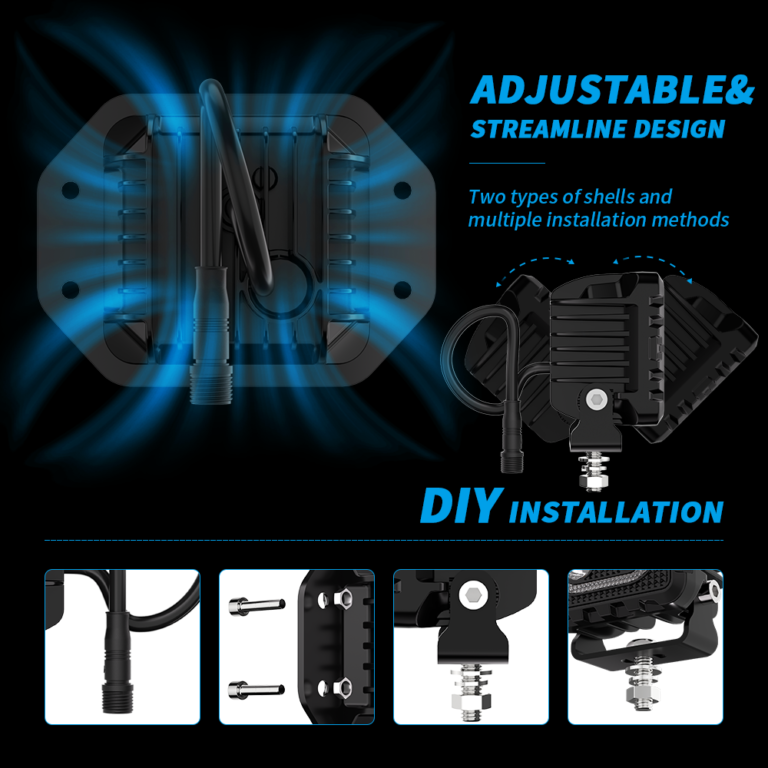

Bottom U-shaped adjustable bracket
Product Configuration
Set + wiring harness
Package Size
240 × 225 × 85 mm
Gross Weight per Set
1400 g
Quantity per Carton
10 sets
Carton Size
475 × 415 × 260 mm
Carton Gross Weight
14.8 kg
