6-Inch Five-Lens Off-Road Spot Light Kit
SKU: BF6-1F-5por
✓
6-Inch Five-Lens Off-Road Spot Light Kit
SET+ Wire harness
SKU: BF6-1F-5por
Contact for Price
In stock

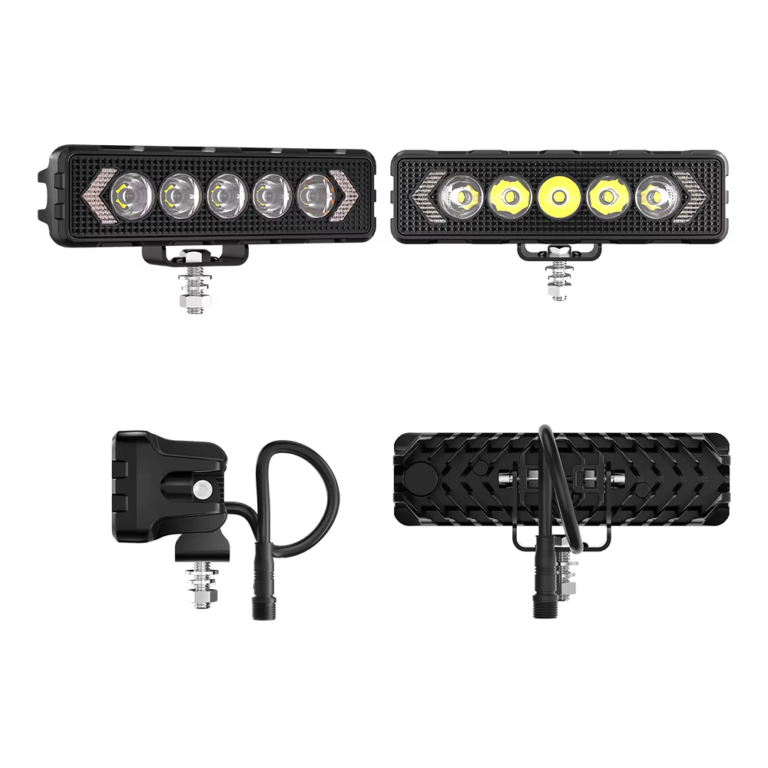

This 6-inch five-lens off-road spot light kit uses a compact rectangular auxiliary lamp with five main optical modules, yellow arrow-shaped DRL accents and a supplied wiring harness. Its spot-beam role suits buyers comparing a more concentrated forward-lighting configuration within the BF6 family, while the five-lens front layout provides a clear visual difference from the six-lens alternative.
Confirmed selection data includes 9–36V DC input, 18W rated power at 12V, 1.5A current draw, IP68/IP69K protection and a 3 m cable. Canonical lamp data specifies five 5W CSP3535 main LEDs with eight 0.5W SMD3030 DRL LEDs, 2600 lm theoretical output, 1518 lm measured luminous flux and a 1 lux test point at 132 m. The aluminum housing measures 160 × 59 × 46 mm with a bottom adjustable bracket, giving distributors and project buyers clear electrical, mounting and configuration data for comparison.
Voltage
9-36V DC
Rated Power
18W @ 12V
Current
1.5A @ 12V
LED Configuration
Main 5 × 5W CSP3535 + DRL 8 × 0.5W SMD3030
Beam Pattern
Spot
Light Color
White + Yellow
Theoretical Lumens
2600 lm
Measured Luminous Flux
1518 lm
Illuminance Test Point
1 lux @ 132 m
IP Rating
IP68/IP69K
Operating Temperature
-40°C to 85°C
Cable Length
3 m
Housing Material
Aluminum
Product Form
6-inch rectangular five-lens auxiliary light
Dimensions

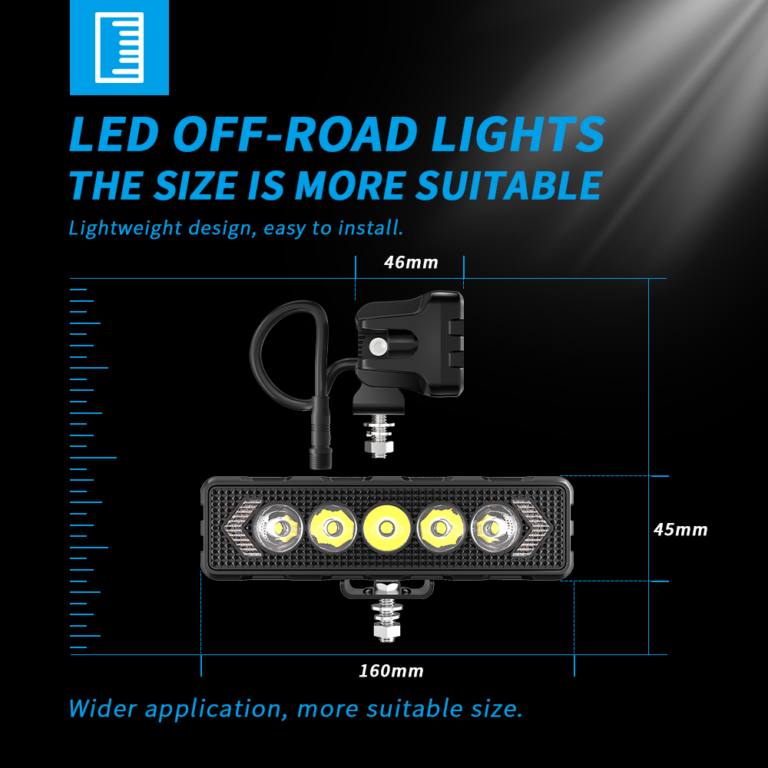

160 × 59 × 46 mm
Mounting Type
Bottom adjustable bracket
Product Configuration

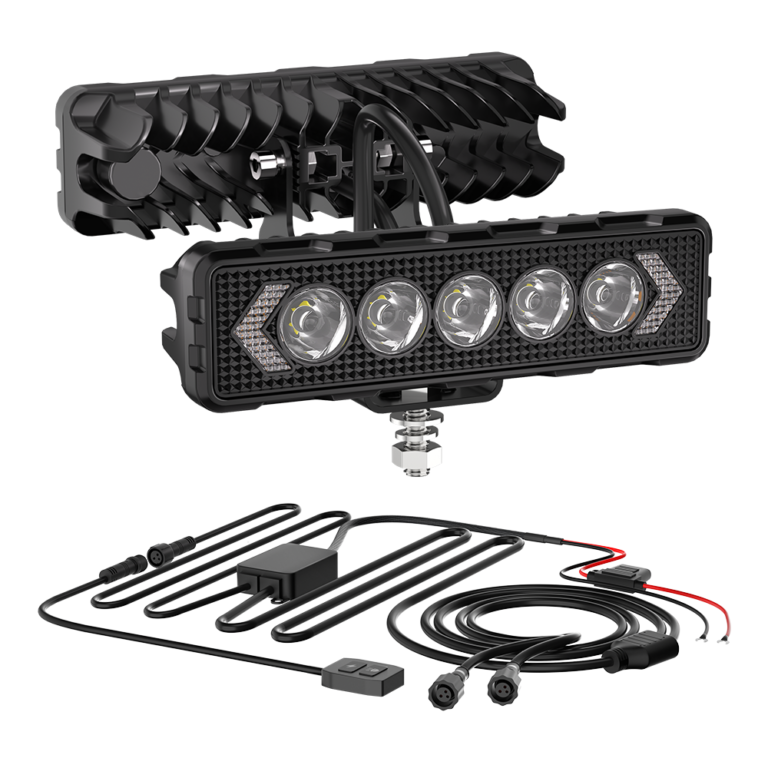

Set + wiring harness
Package Size
240 × 220 × 85 mm
Gross Weight per Set
1360 g
Quantity per Carton
10 sets
Carton Size
470 × 470 × 260 mm
Carton Gross Weight
14.4 kg
6-Inch Five-Lens Off-Road Light Kit with Yellow Arrow Accents
A six-inch off-road light with five white spot lenses, yellow arrow accents, IP68 aluminum housing, 9-32V input, and a supplied wiring harness.
