6-Inch Off-Road Flood Light Kit with X DRL

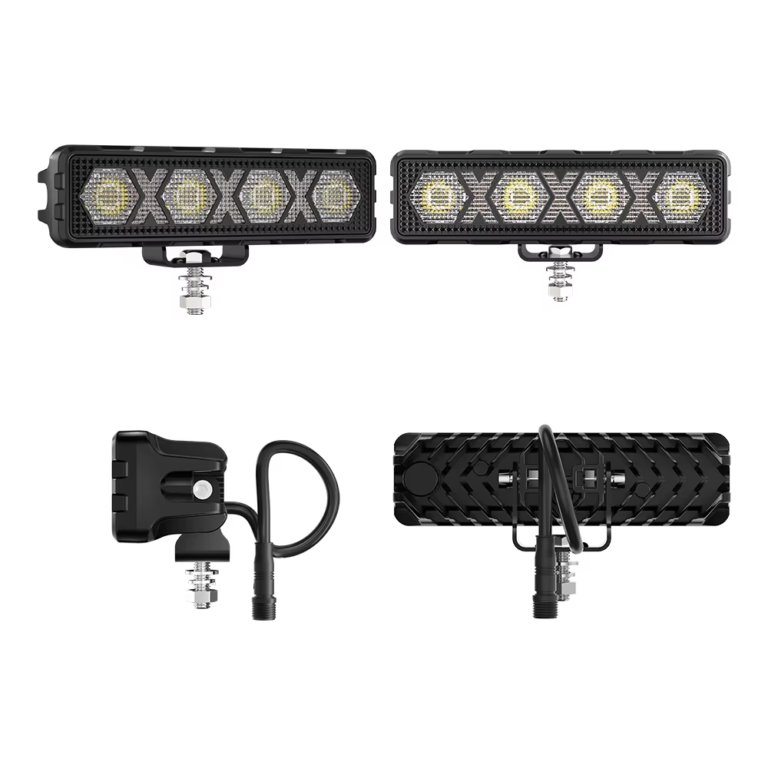

BF6-1F-4por is a 6-inch rectangular off-road flood light set with a yellow X-shaped DRL. Its low rectangular form suits a wide mounting space with limited height in the DXZ off-road lights range.

When should you choose BF6 X-DRL flood lights?

Choose its flood pattern for broad nearby coverage and the X DRL when that front-face design suits the build. The white-only BF6-1F-20 flood light bar keeps the same 160 × 59 × 46 mm lamp dimensions. For a forward-focused beam in this rectangular format, compare BF6-1F-5por.

Will the 6-inch rectangular light fit below your grille?

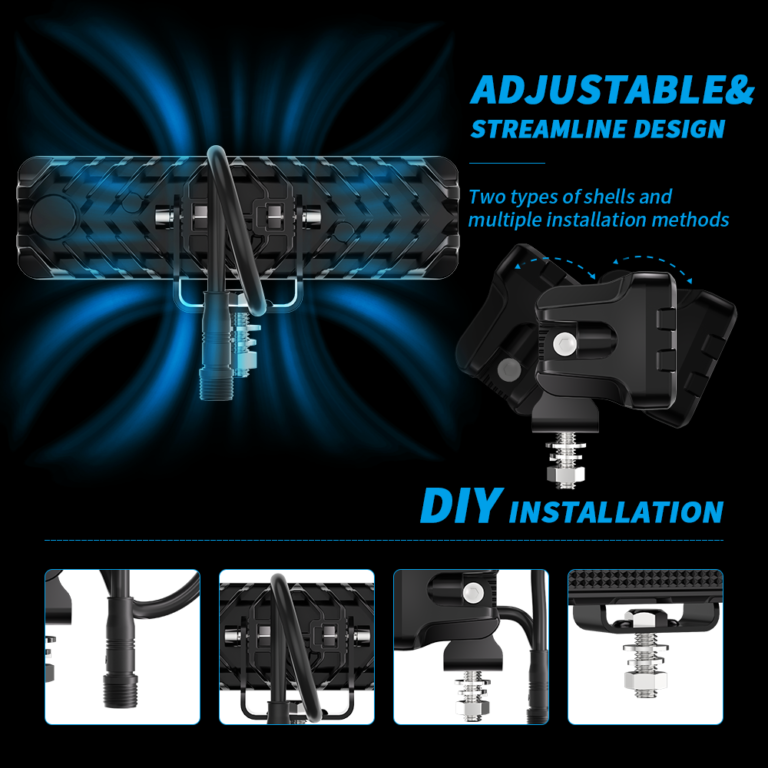

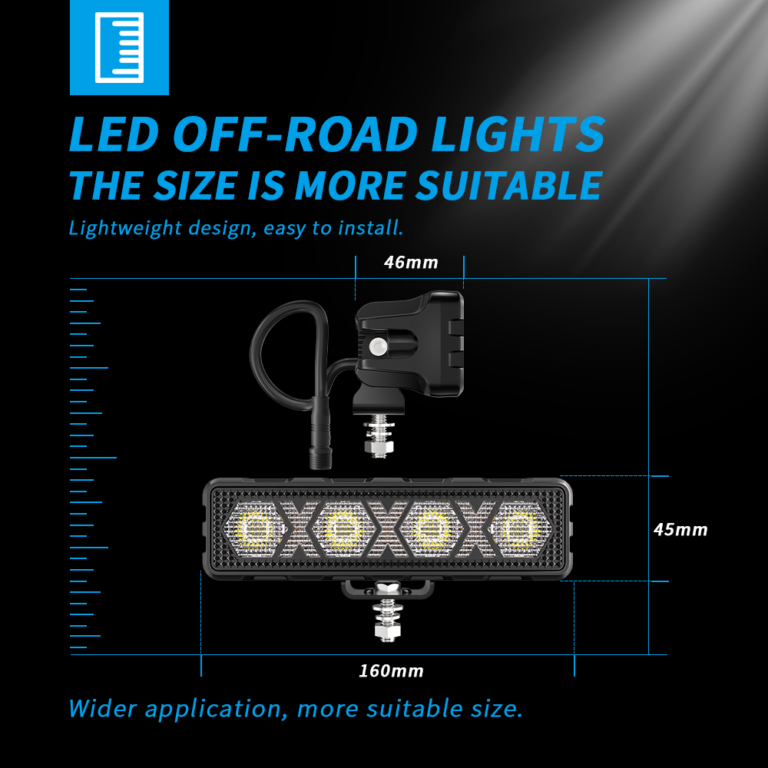

Check the 160 × 59 × 46 mm lamp envelope against the available opening, then allow room for the bottom adjustable bracket and its aiming movement. The input range is 9-36V DC, with a 19.8W / 1.65A specification at 12V. The relay and fuse wiring guide helps you plan the supply circuit around the installed lamps.

What is supplied with BF6-1F-4por?

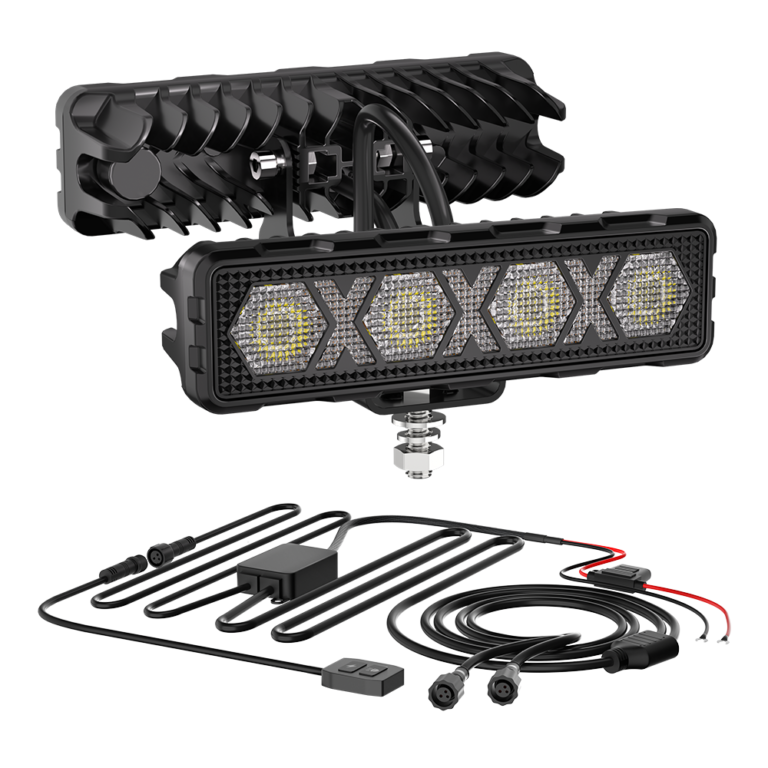

The set includes the lamps, wiring harness and packaging. Give DXZ sales the installation width and your preferred main-light/DRL switching layout when requesting a quote. For a branded accessory range, discuss carton artwork and wiring requirements through OEM/ODM support.
