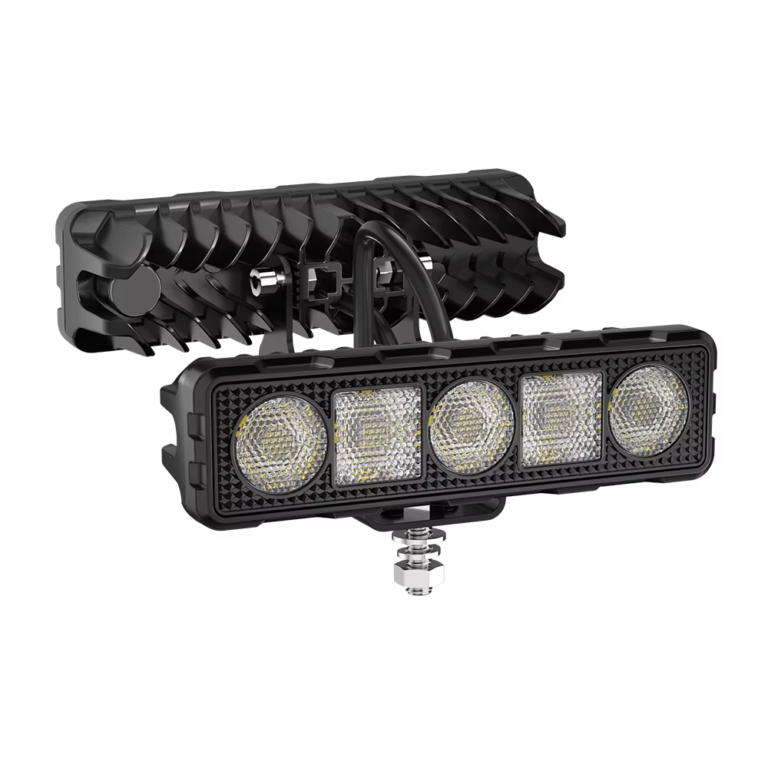

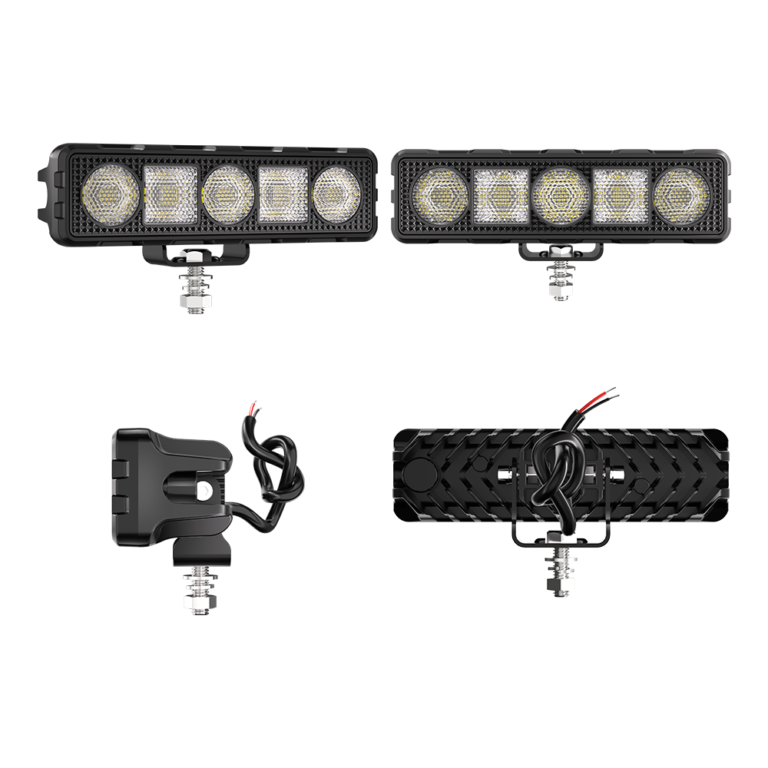

6-Inch Off-Road LED Flood Light Bar

BF6-1F-20 is a compact 6-inch rectangular LED flood light bar with white light. Its low body suits a mounting position that needs broad auxiliary coverage in the DXZ off-road range. Compare LED light bars for other models in this format.

When should you choose this compact flood light bar?

Choose it for broad nearby light from a low rectangular position. The BF6-1F-4por flood set adds an X-shaped DRL in the same lamp dimensions, while BF6-1F-5por changes the role to spot lighting. The trail lighting guide helps you assign each position a beam task.

What space and power does BF6-1F-20 need?

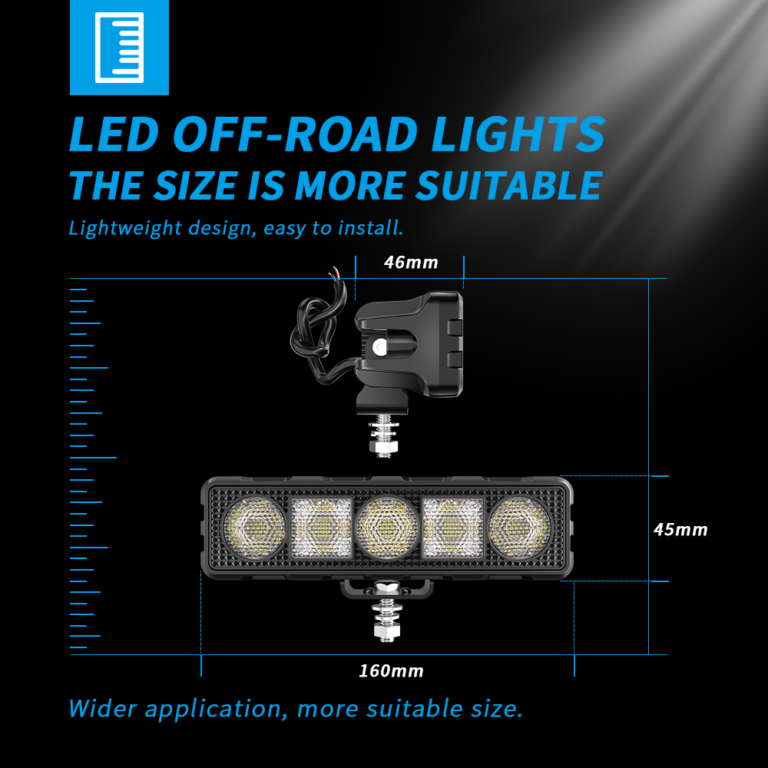

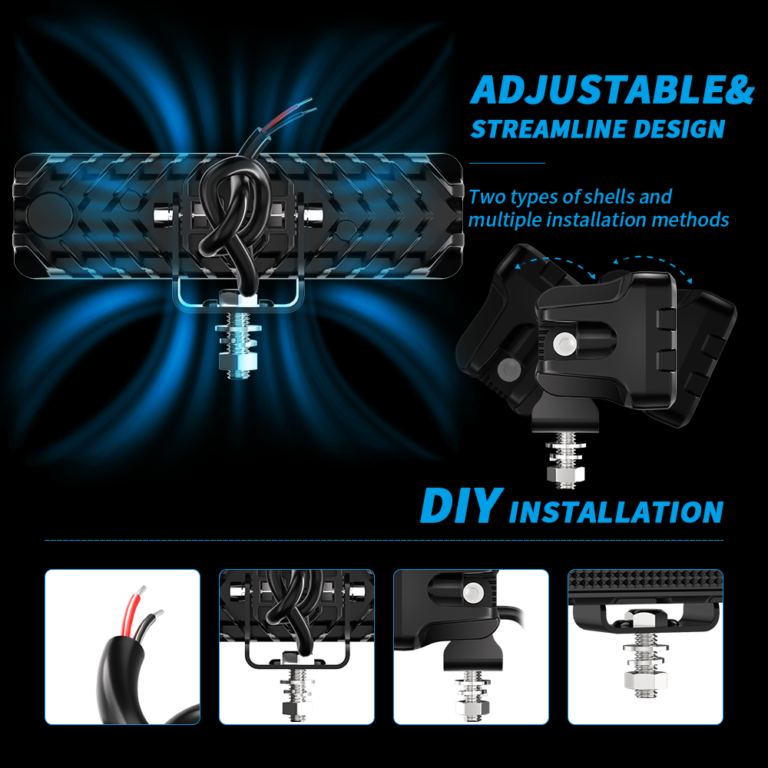

The lamp measures 160 × 59 × 46 mm and uses a center bottom adjustable bracket. Check the width and bracket movement in a grille or bumper opening. The input range is 9-36V DC; the 12V specification is 17.8W and 1.48A.

How can you specify a BF6-1F-20 lamp-set order?

The supply format is a lamp set with packaging. Send the number of lamps and the mounting layout to DXZ sales so the quote can include your required wiring arrangement. For a dealer package with its own branding, discuss artwork and supply details through DXZ OEM/ODM.
