6-Inch Six-Lens Off-Road Spot Light Kit
SKU: BF6-1F-6por
✓
6-Inch Six-Lens Off-Road Spot Light Kit
SET+ Wire harness
SKU: BF6-1F-6por
Contact for Price
In stock
This 6-inch six-lens off-road spot light kit is built around a compact rectangular auxiliary lamp with six main optical modules, yellow side DRL elements and a supplied wiring harness. Its spot-beam role suits buyers comparing a more concentrated forward-lighting configuration within the BF6 family, while the six-lens front layout gives the SKU a clear visual and optical identity.
Confirmed selection data includes 9–36V DC input, 17.8W rated power at 12V, 1.48A current draw, IP68/IP69K protection and a 3 m cable. The canonical lamp data specifies six 5W CSP3535 main LEDs with eight 0.5W SMD3030 DRL LEDs, 2600 lm theoretical output and a 1 lux test point at 112 m. The aluminum housing measures 160 × 59 × 46 mm with a bottom adjustable bracket, giving distributors and project buyers clear electrical, mounting and configuration data for comparison.
Voltage
9-36V DC
Rated Power
17.8W @ 12V
Current
1.48A @ 12V
LED Configuration
Main 6 × 5W CSP3535 + DRL 8 × 0.5W SMD3030
Beam Pattern
Spot
Light Color
White + Yellow
Theoretical Lumens
2600 lm
Measured Luminous Flux
1212 lm
Illuminance Test Point
1 lux @ 112 m
IP Rating
IP68/IP69K
Operating Temperature
-40°C to 85°C
Cable Length
3 m
Housing Material
Aluminum
Product Form
6-inch rectangular six-lens auxiliary light
Dimensions

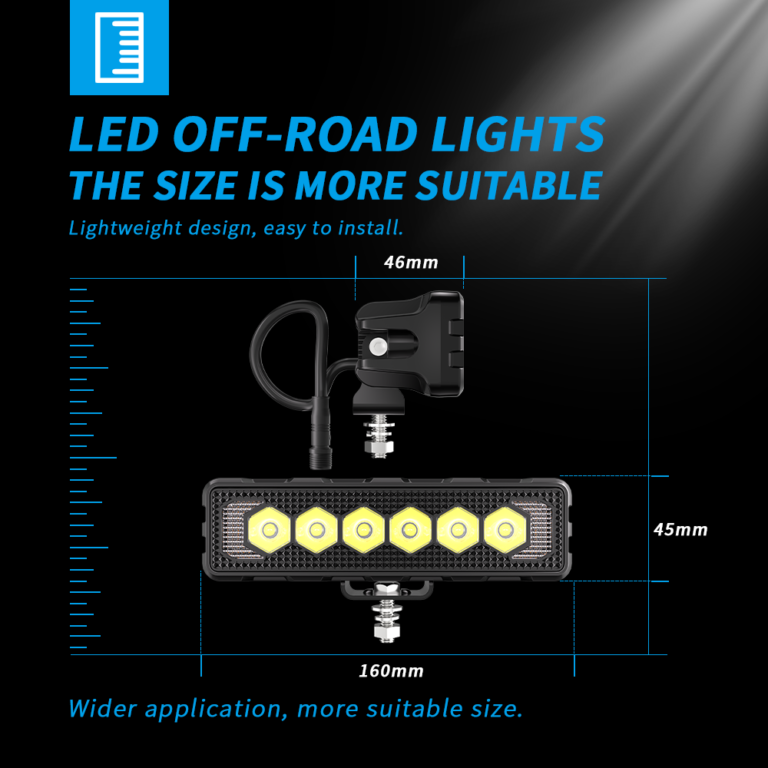

160 × 59 × 46 mm
Mounting Type

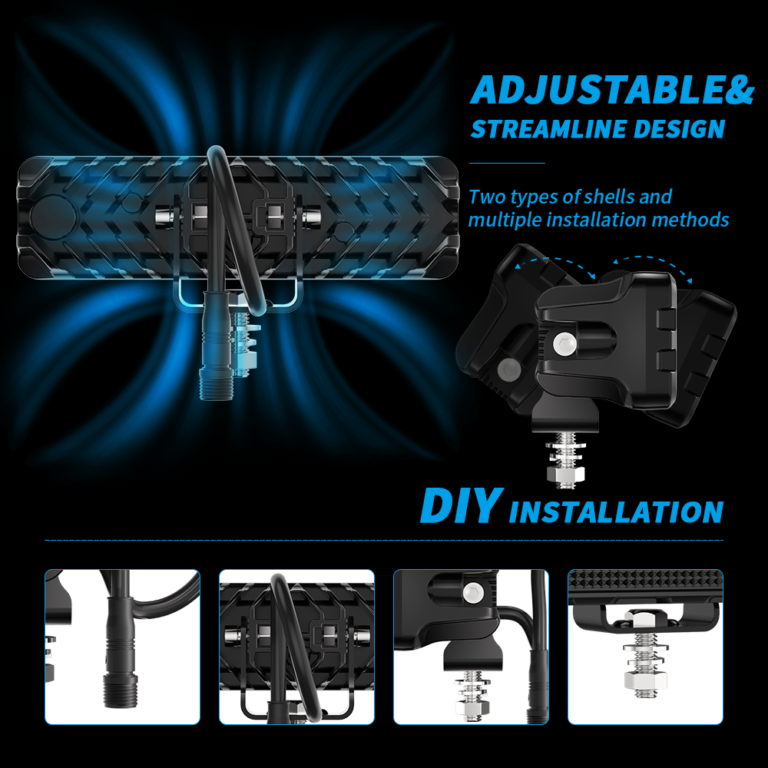

Bottom adjustable bracket
Product Configuration

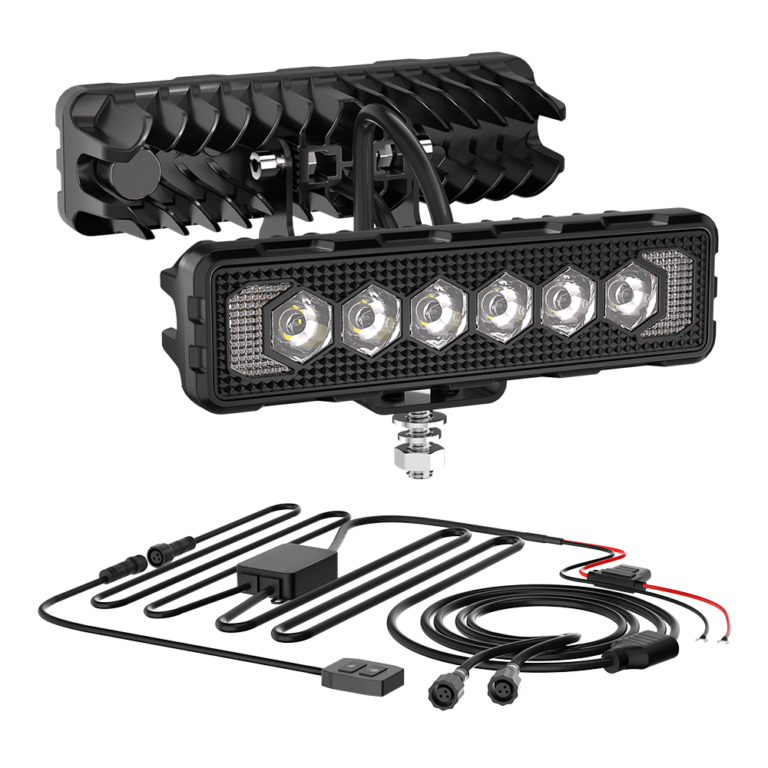

Set + wiring harness
Package Size
240 × 220 × 85 mm
Gross Weight per Set
1360 g
Quantity per Carton
10 sets
Carton Size
470 × 470 × 260 mm
Carton Gross Weight
14.4 kg
6´LED Off-Road Lights
6-inch six-lens off-road spot light with yellow side accents and wiring harness
