Three-Reflector Off-Road Spot Light Pair
45C01
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
What makes the 45C01 off-road spot light pair different?

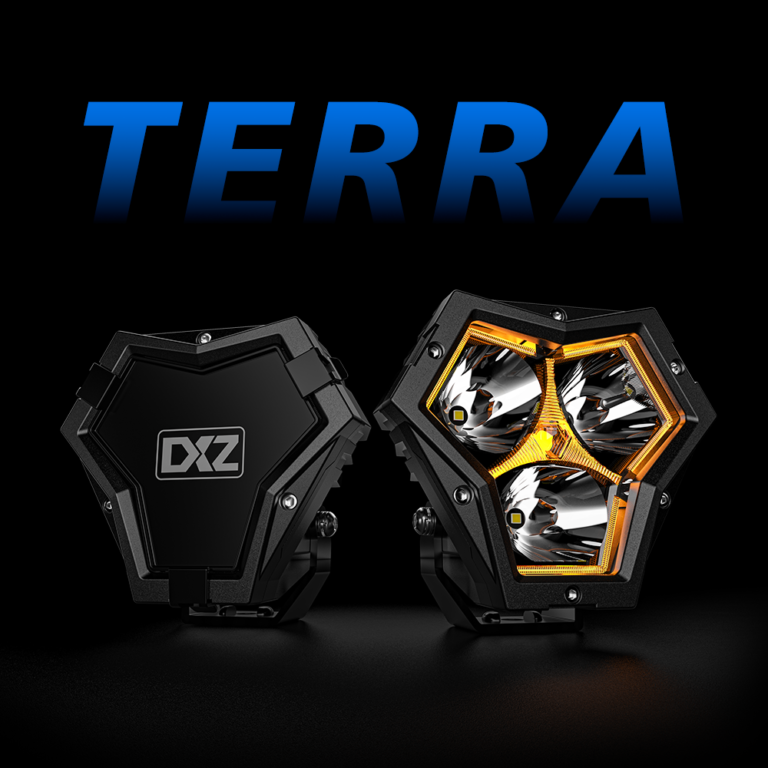

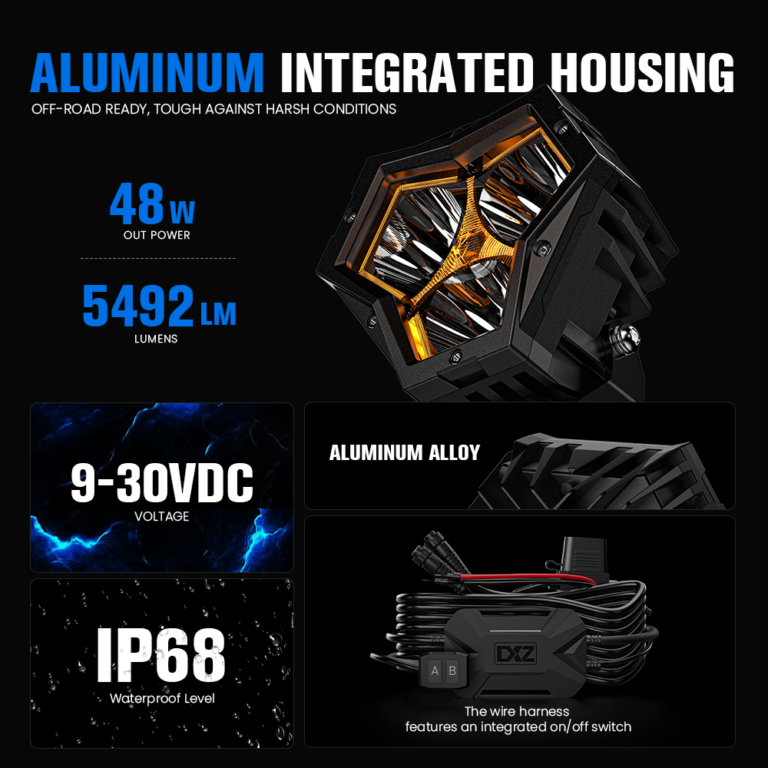

This off-road spot light pair uses three reflector sections in a two-above-one arrangement. The tapered angular face is outlined by an amber DRL, while the white main light handles forward illumination. A/B harness controls keep the main beam and amber accent separate, so the lamp appearance can be selected independently of the main lighting task.
What is included with the 45C01 spot light pair?
Choose this pair when the three-reflector face suits the vehicle front and there is space for a 119 mm-wide lamp at each mounting point. Check clearance around adjacent trim or accessories. Two lamps, covers, mounting brackets and a harness are included for the paired setup; plan the final bracket position and cable routing before installation. Compare DXZ LED pod lights for other beam and mounting options, or send us your sample shortlist to confirm your supply configuration.
Voltage
9–30 V DC
Power
48 W
Beam Pattern

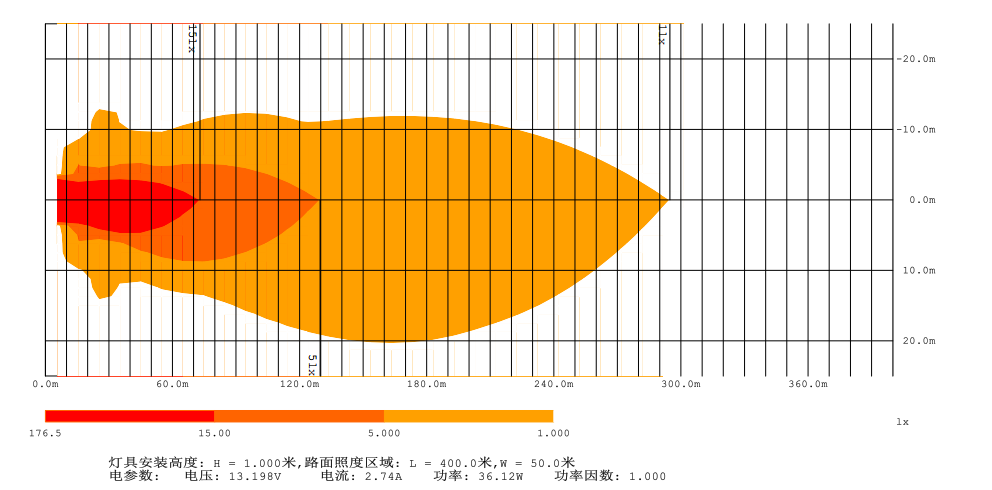

Spot + DRL
Light Functions

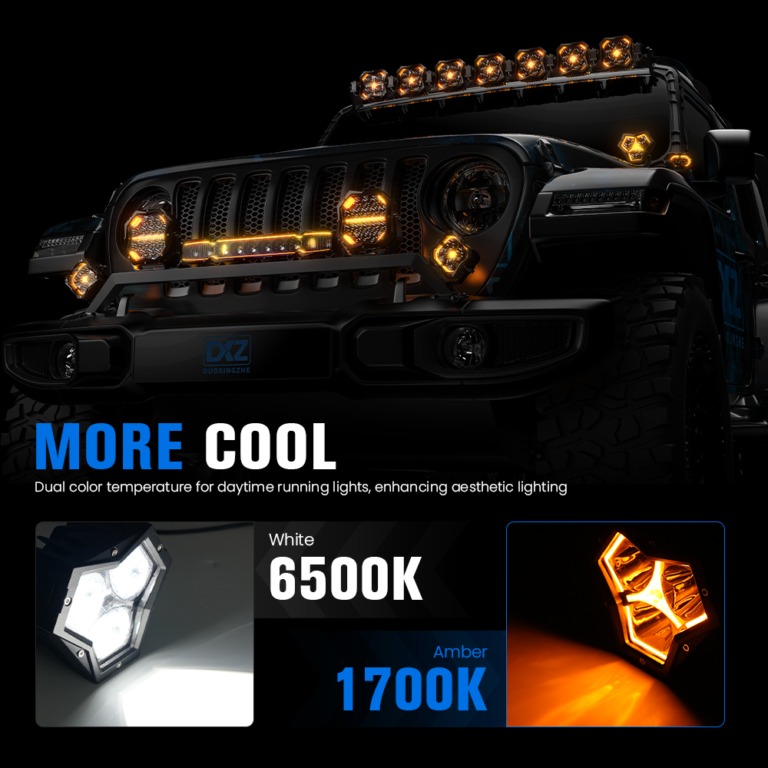

White main light; amber DRL
Control

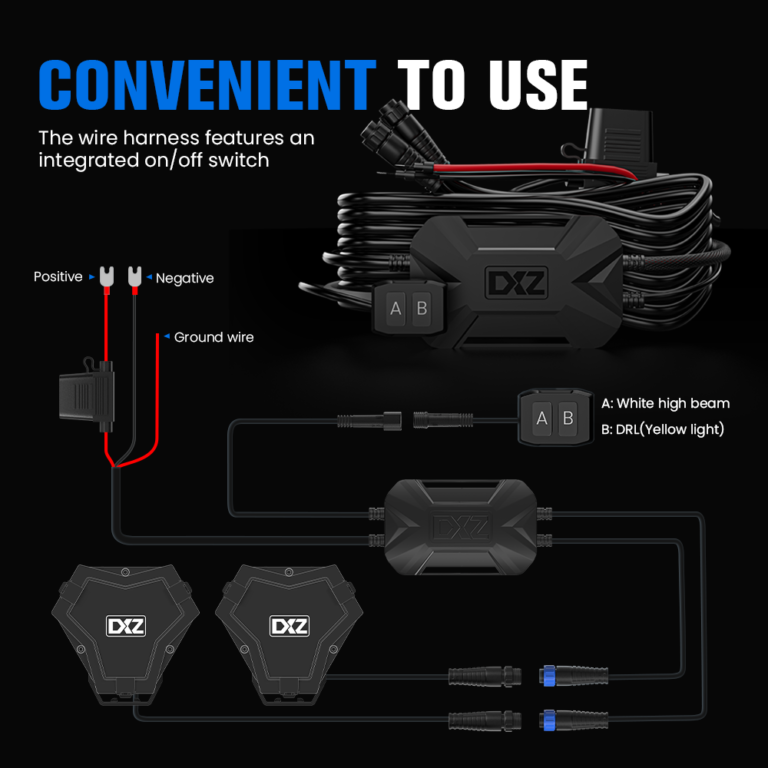

Harness switch: A white main beam; B amber DRL
Luminous Flux
5492 lm
IP Rating

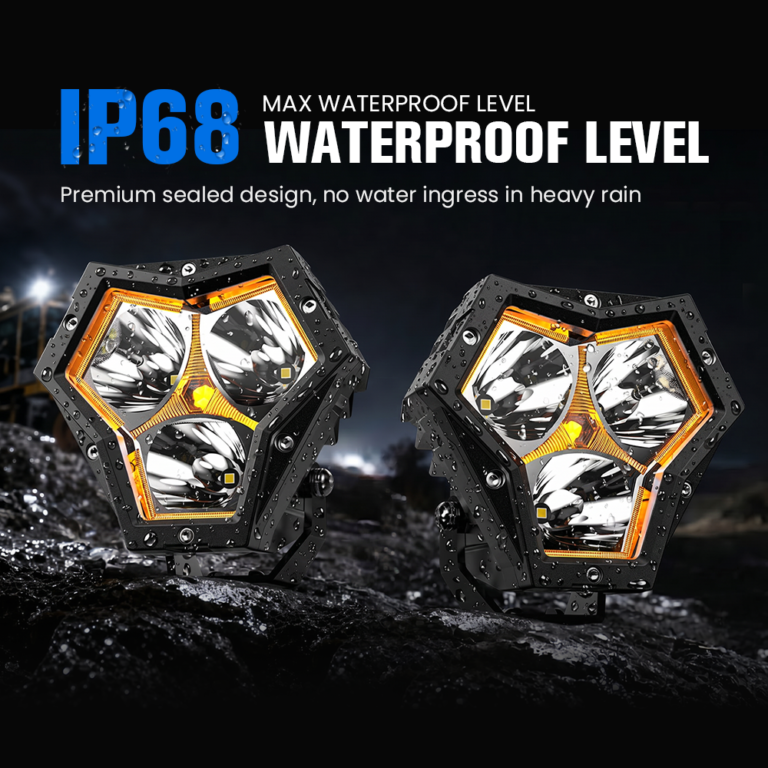

IP68
Cable Length
3 m
Housing Material
Aluminum

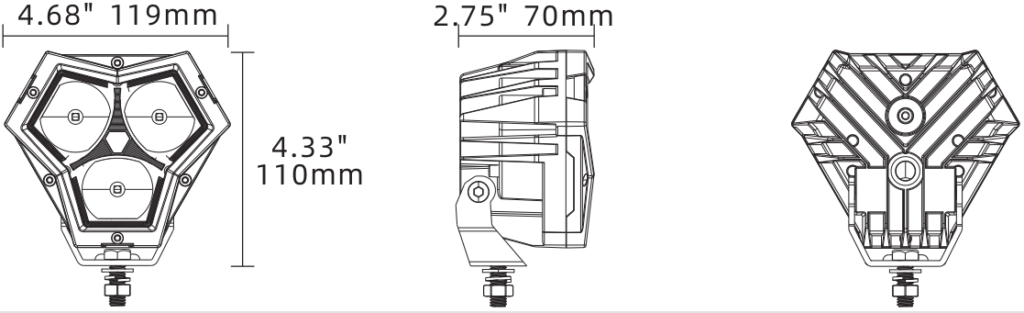

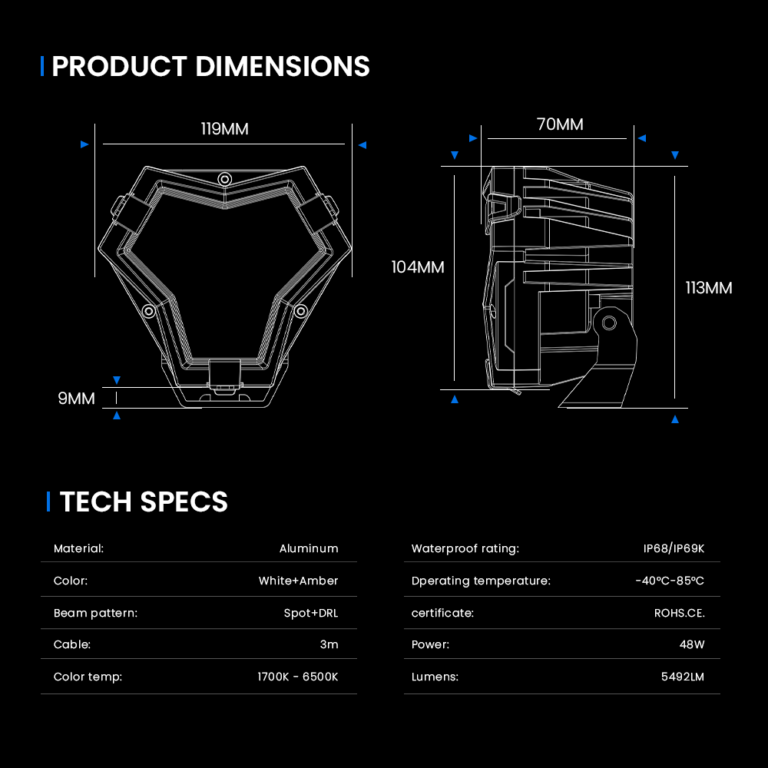

Lamp Width
119 mm
Lamp Depth
70 mm
Set Contents
2 LED off-road spot lights; 2 yellow covers; 2 black covers; 1 wiring harness; user manual; 2 mounting brackets; 2 sets of fixing screws
Package Dimensions
265 × 255 × 109 mm
Gross Weight per Set
2200 g
Carton Quantity
5 sets
Carton Dimensions
57.5 × 28 × 27.5 cm
Carton Gross Weight
11.5 kg
Package/Size
265×255×109mm
CTN/CM
57.5×28×27.5cm
QTY/CTN
5Set
G.W/Set
2200g
G.W
11.5Kg
Warranty Period
3 Years
