5-Inch Off-Road Spot Light

COLOR : White+Yellow

In stock

5C01

Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support Sea · Air · Land Freight
Technical & After-Sales Support
Product details

What does the 5C01 5-inch off-road spot light offer?

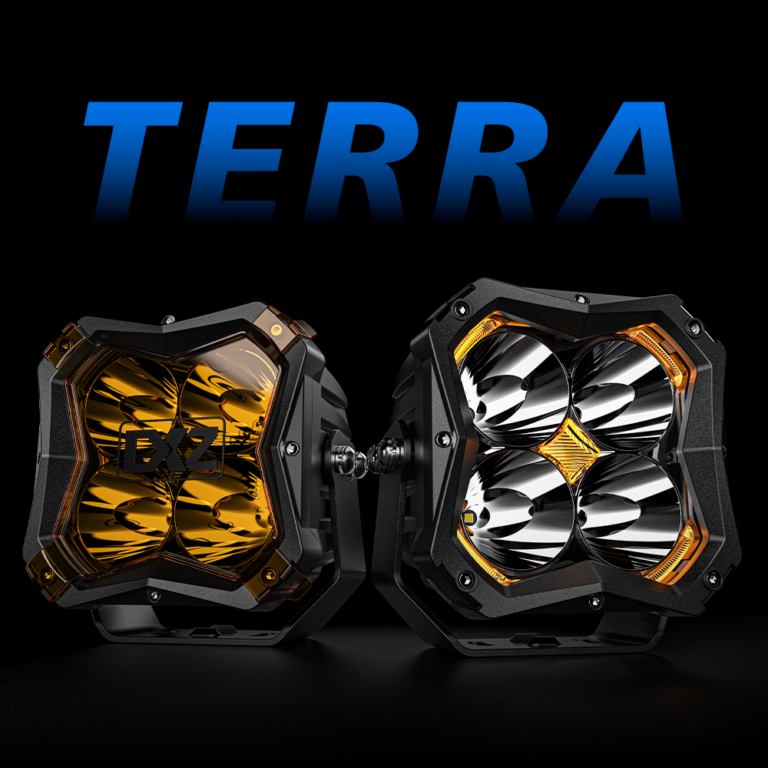

This nominal 5-inch off-road spot light places four circular reflectors in an upright, two-by-two arrangement. An amber diamond at the center and amber corner elements give the front an outline alongside the white main light. The U-shaped bracket sits below the housing, providing a mounting arrangement for an auxiliary front-light installation.

Where does the 5C01 off-road spot light fit in your range?

Choose this format when an upright four-reflector face suits the vehicle layout better than a horizontal pod. It provides a middle-sized option within the TERRA collection, between the compact pods and the larger multi-reflector lamp. Check the available space around the bracket, the rear clearance and the cable route before selecting the final mounting position. Compare DXZ LED pod lights for other beam and mounting options, or send us your sample shortlist to confirm your supply configuration.

Power 82.5 W
Beam Pattern Spot + DRL

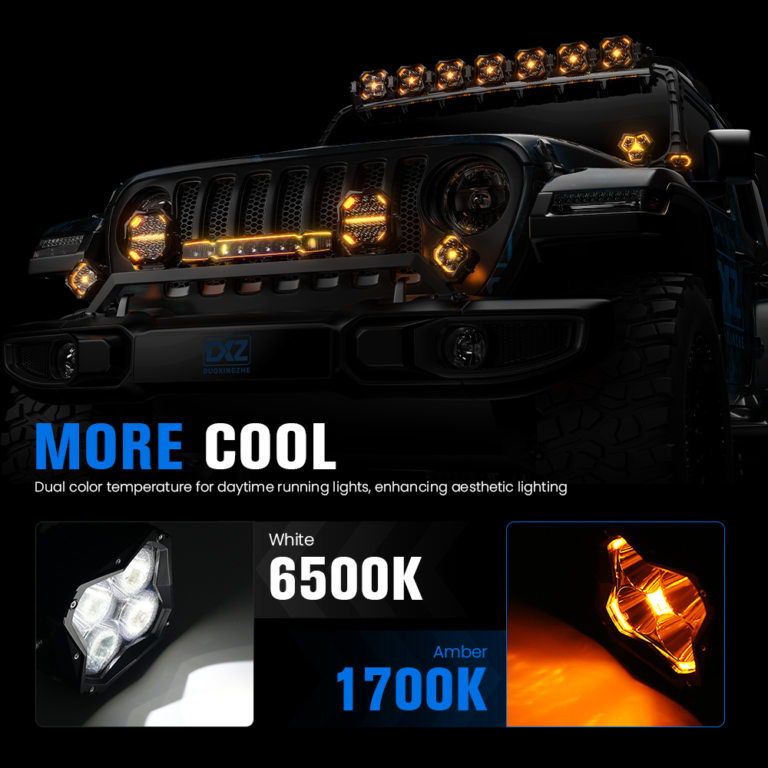

Light Functions White main light; amber DRL

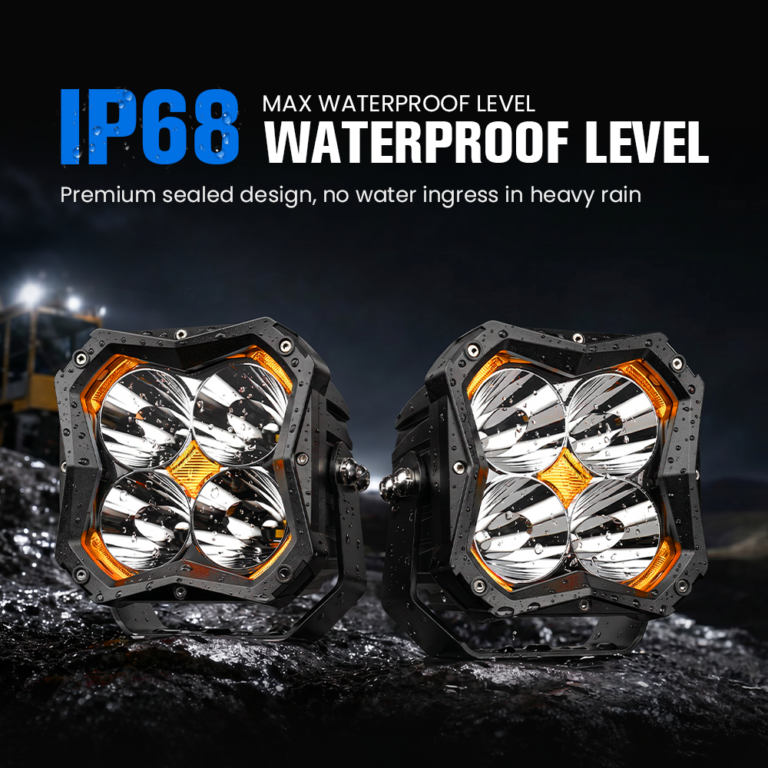

IP Rating IP68
Cable Length 3 m

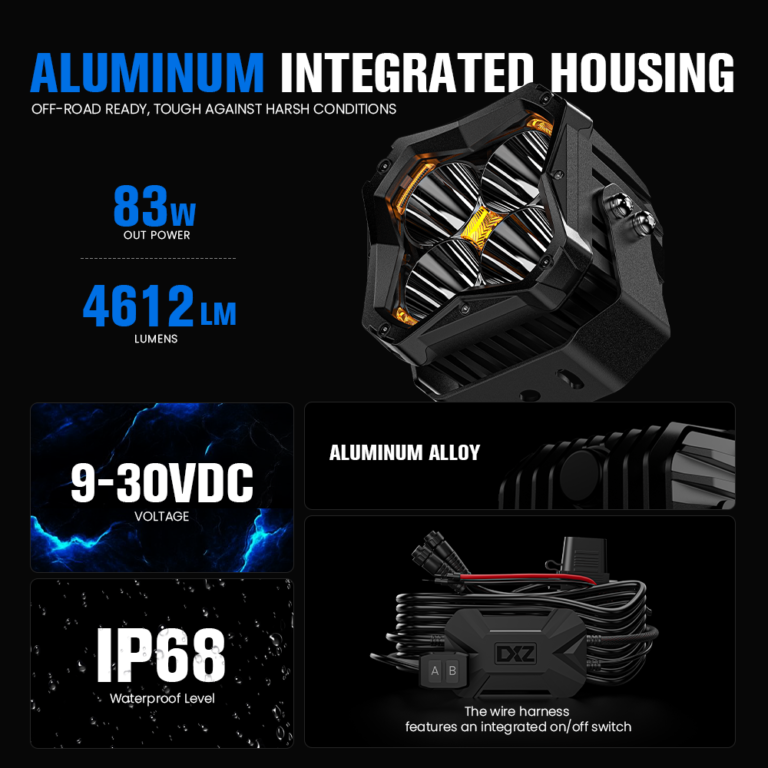

Housing Material Aluminum
Nominal Size 5 inch
Lamp Dimensions (W × H × D) 126 × 141 × 99 mm
Gross Weight per Set 4000 g
Carton Quantity 5 sets
Carton Gross Weight 21 kg
Package/Size 294×298×126mm
CTN/CM 65×31×31cm
QTY/CTN 5Set
G.W/Set 4000g
G.W 21Kg
Warranty Period 3 Years

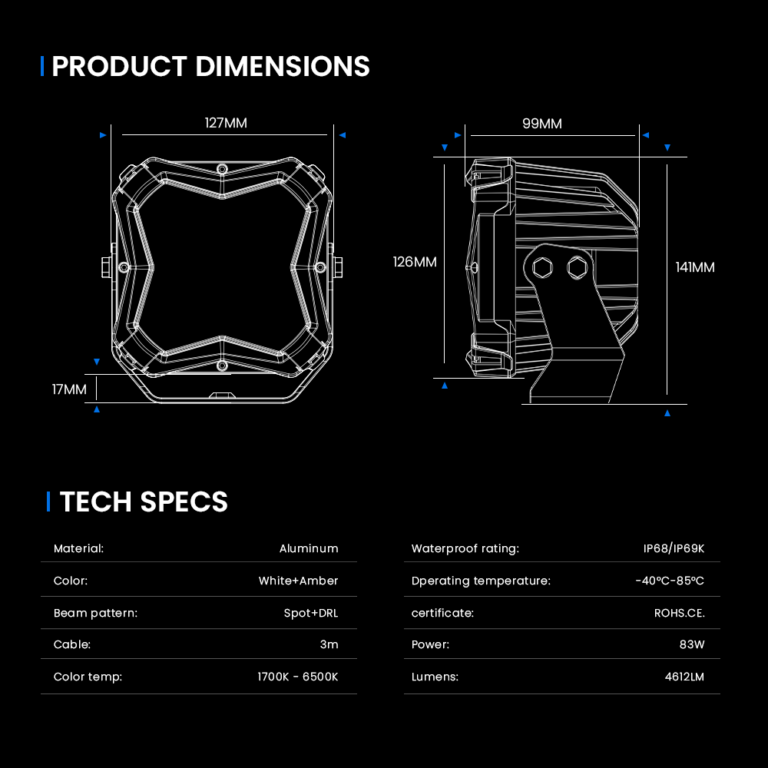

Dimensions

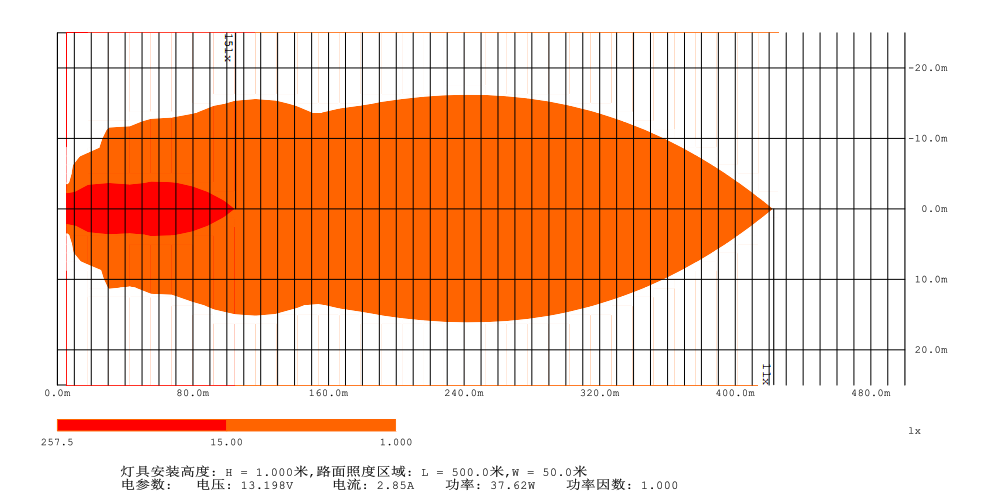

Heat Map
