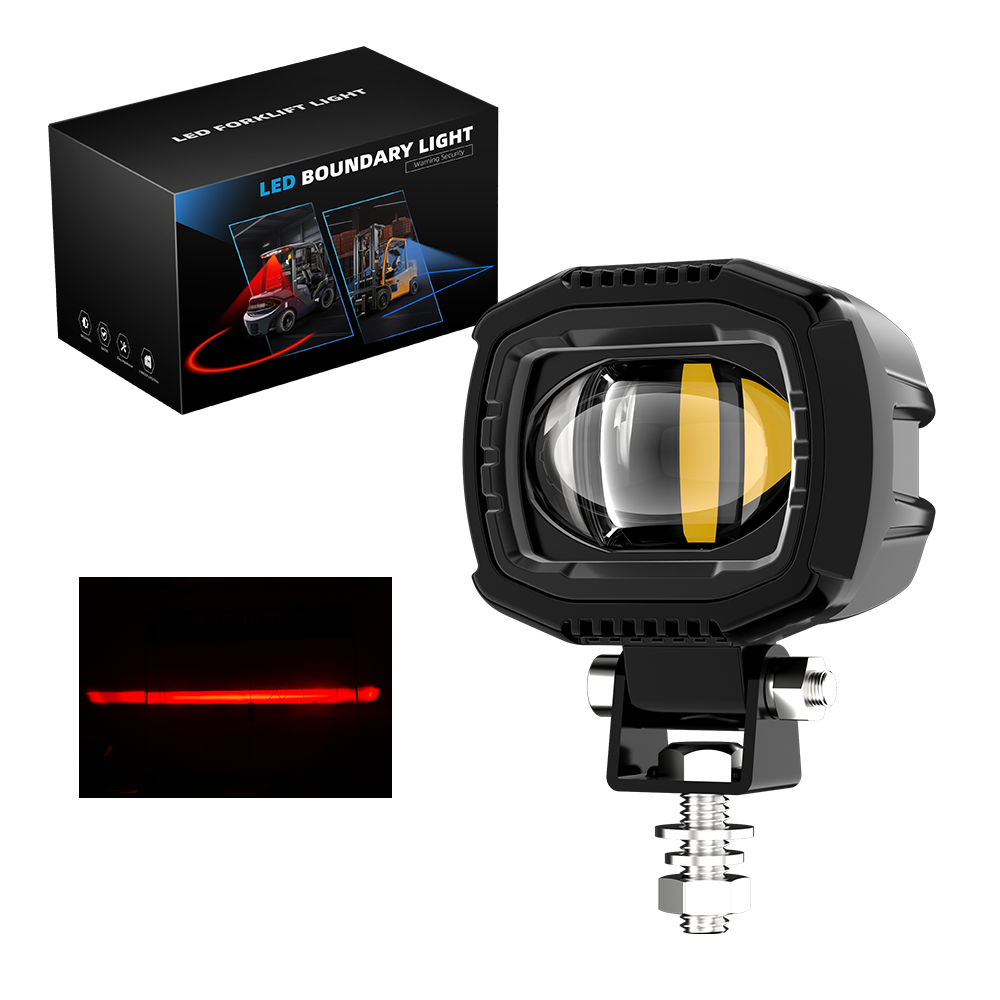

Straight-Line Red Zone Forklift Safety Light
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
Which red zone forklift safety light projects a straight line?

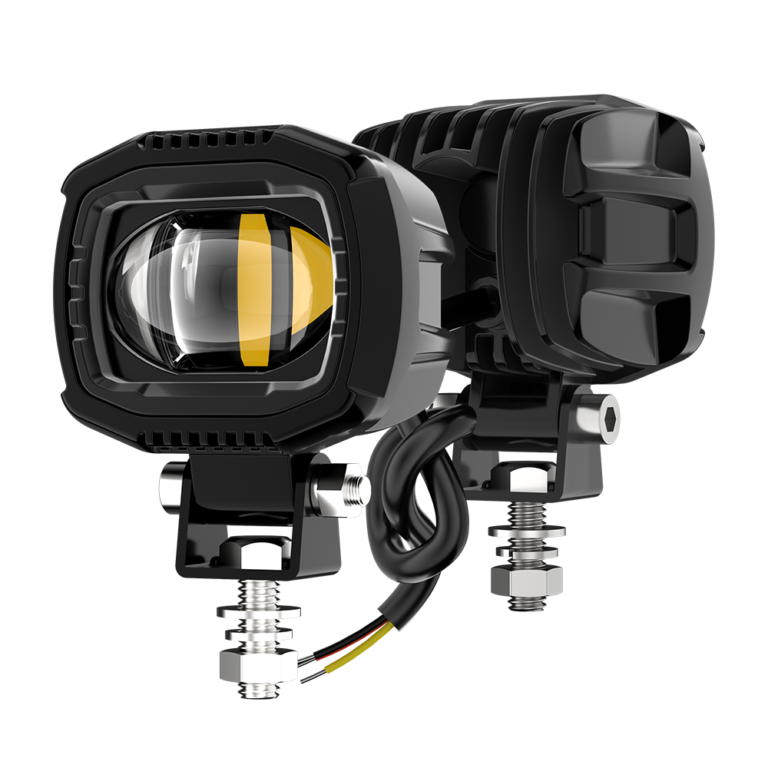

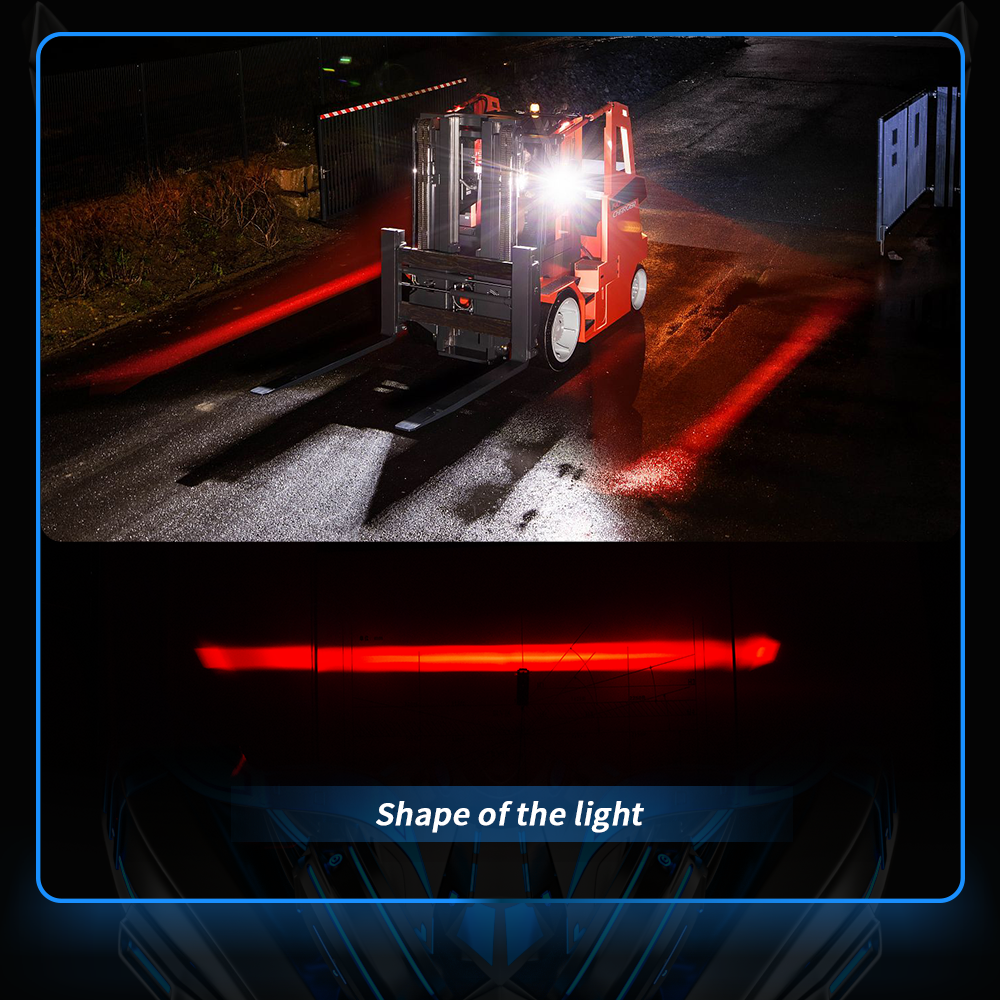

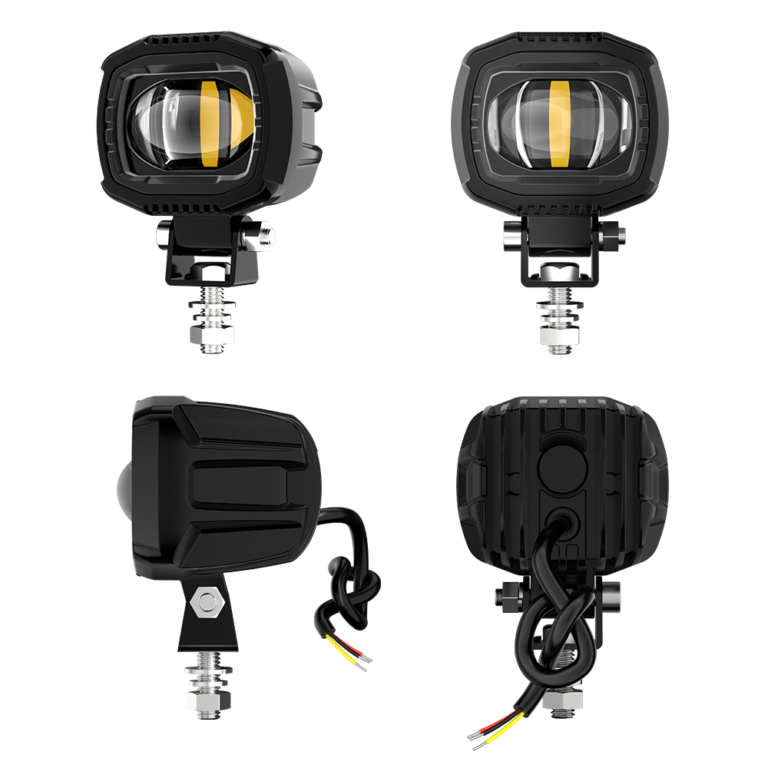

The Straight-Line Red Zone Forklift Safety Light projects a continuous red line onto the floor. BX3-F1-A has one central projector in a compact rectangular aluminum housing. Choose it for a straight side-boundary cue when comparing red zone lights with halo or spot formats. Plan the mounting side and line orientation around the truck’s operating route. The line position depends on mounting height and aiming angle, so check it on the floor where the forklift will work. Send us the accessory supply voltage and mounting details for a quote. Use the projected line alongside the site’s pedestrian-separation controls. Browse the DXZ forklift light range or ask us to review the configuration for your order.

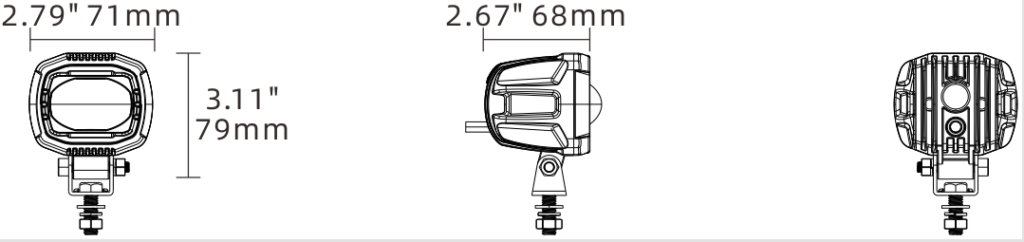

Nominal Size
3 in
Material
Aluminum
Input Voltage
9–80 V DC
Ingress Protection
IP68
LED Configuration
1 × SMD 5050 LED
Rated Power
6.1 W
Operating Current at 12 V
0.5 A
Light Color
Red
Beam Pattern
Spot
Cable Length
25 cm
Package Dimensions
116 × 88 × 80 mm
Gross Weight Per Set
335 g
How is this forklift safety light tested before release?
Every DXZ forklift-light model goes through repeated laboratory testing before release. See the DXZ laboratory and test-method library when comparing suppliers. For BX3-F1-A, send us your application and configuration so we can review the test information relevant to your order.
Which certificates can I get for this forklift safety light?
The available documents list BX3-F1-A among their models. Download FCC PDF (2026-02-02), CE-EMC PDF (2022-11-16) and RoHS PDF (2022-11-16), or view the certificate library. Contact DXZ for the latest documents for your model and destination market.
