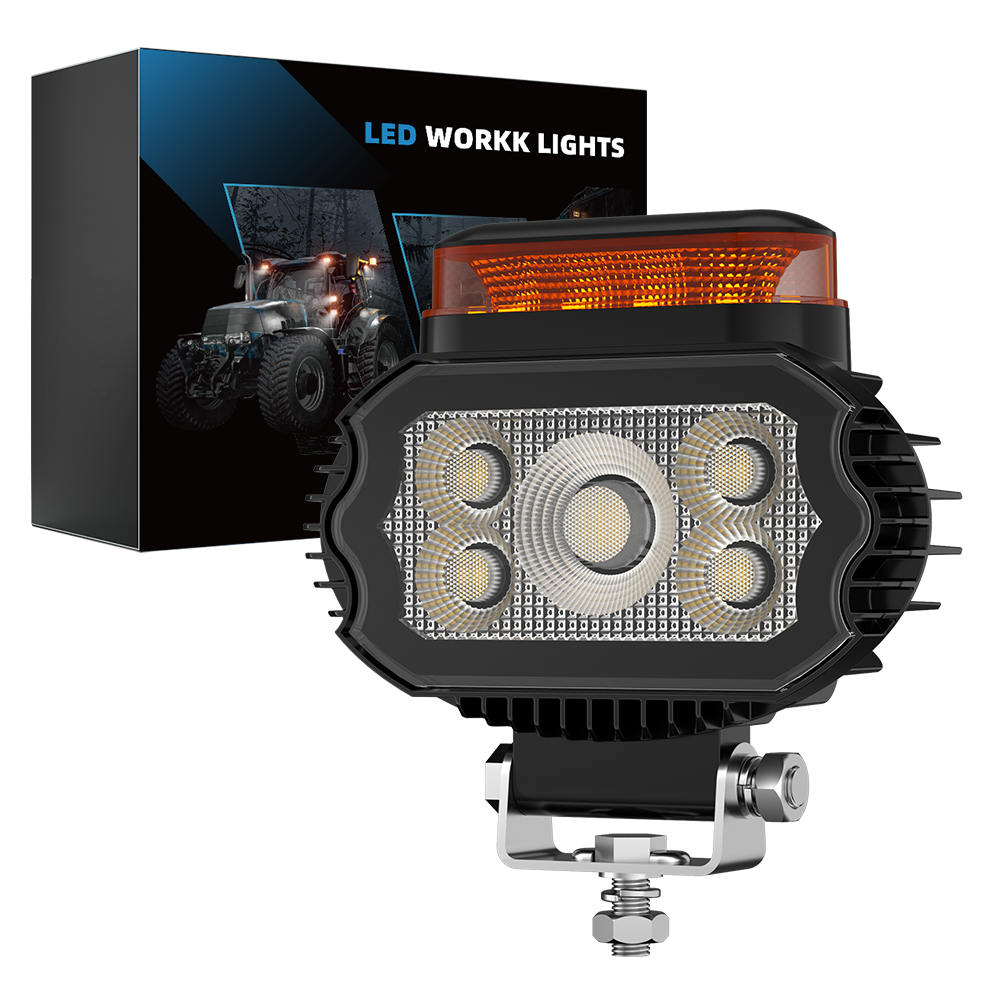

Center-Projector Forklift Work Light with Amber Bar
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
When should I specify a center-projector forklift work light?

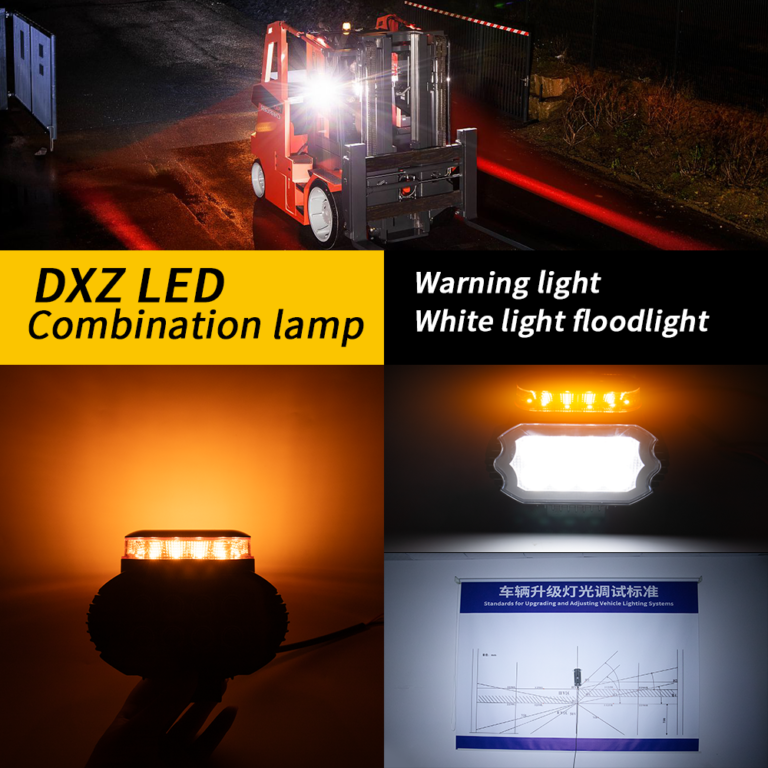

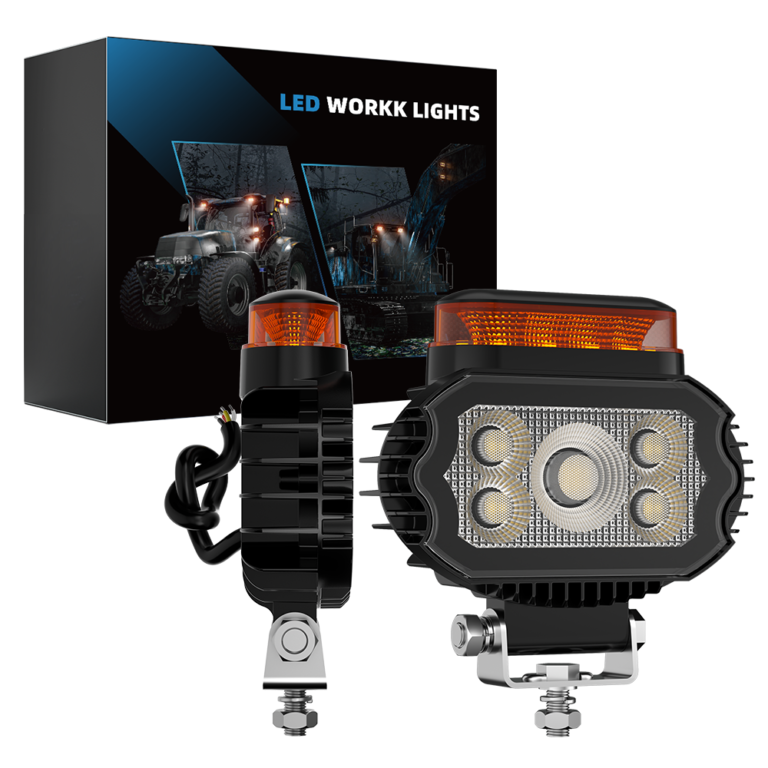

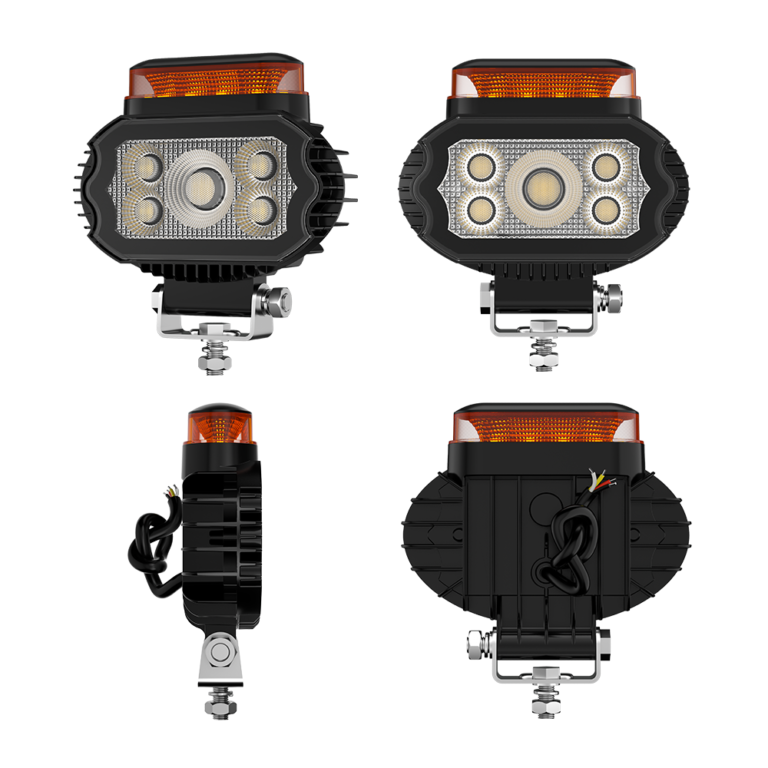

The Center-Projector Forklift Work Light with Amber Bar combines one central round optical unit with four smaller surrounding optics. It has a white flood main light and an amber strip along the upper edge of the rectangular body. Choose 55C-FS-T2 when the mounting position suits the 5.5-inch format and your equipment design calls for a central optic. Compare it with the twin-round and nine-optic versions for face layout and electrical load. Send the intended work-area direction with your inquiry so we can review the mounting arrangement. Browse the DXZ forklift light range or ask us to review the configuration for your order.

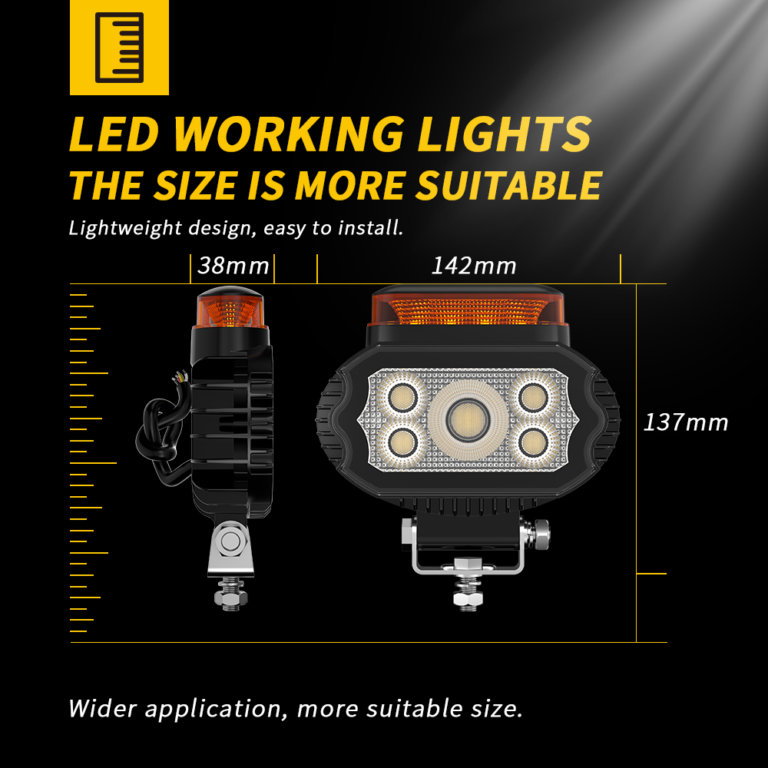

Nominal Size
5.5 in
Material
Aluminum + ABS
Input Voltage
9–36 V DC
Ingress Protection
IP68
LED Configuration
Main light — 25 × 1 W SMD 3030 LEDs; amber secondary light — 10 × 0.5 W SMD 3030 LEDs
Rated Power
17.3 W
Operating Current at 12 V
1.43 A
Theoretical Luminous Flux
5700 lm
Light Color
White + Amber
Beam Pattern
Flood
Cable Length
22 cm
Package Dimensions
168 × 150 × 55 mm
Gross Weight Per Set
540 g
How is this forklift work light tested before release?
Every DXZ forklift-light model goes through repeated laboratory testing before release. See the DXZ laboratory and test-method library when comparing suppliers. For 55C-FS-T2, send us your application and configuration so we can review the test information relevant to your order.
Which certificates can I get for this forklift work light?
The available documents list 55C-FS-T2 among their models. Download FCC PDF (2026-02-02), CE-EMC PDF (2022-11-16) and RoHS PDF (2022-11-16), or view the certificate library. Contact DXZ for the latest documents for your model and destination market.
