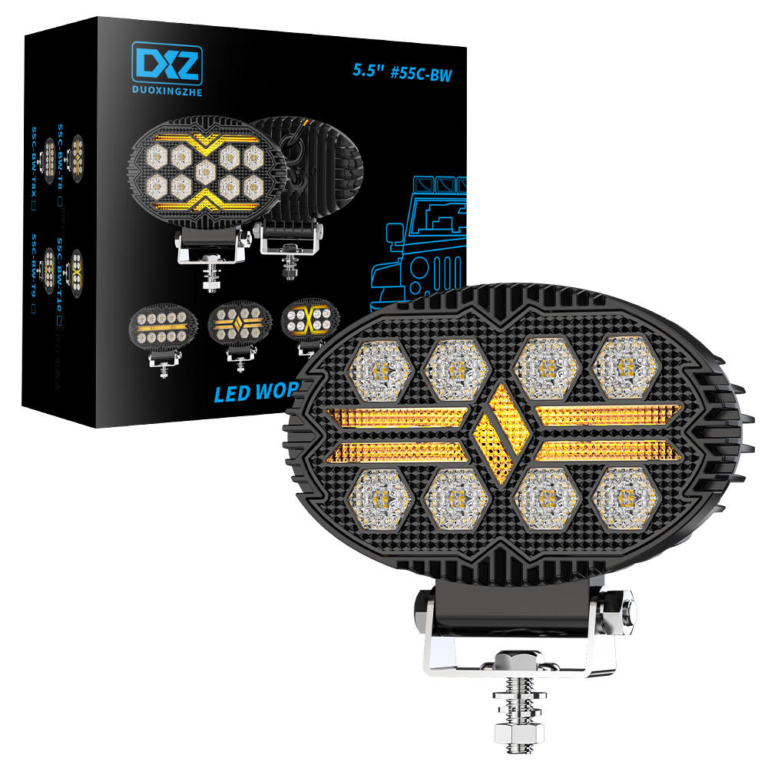

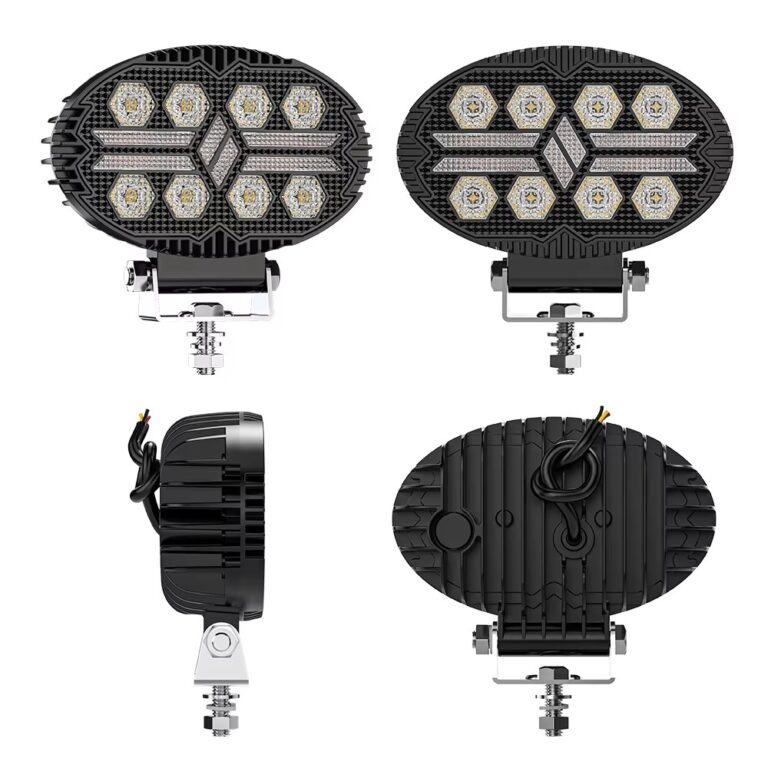

18-Cell Six-Panel Flood LED Work Light

White+Yellow

In stock

55C-BW-T8

Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support Sea · Air · Land Freight
Technical & After-Sales Support

Product details

The 18-Cell Six-Panel Flood LED Work Light pairs a square bracket-mounted housing with six rectangular matrix blocks. Its spot+drl beam classification keeps the product focused on task illumination with a separately visible accent or secondary-light element. For equipment planning, the useful distinction is the relationship between this face design and the chosen mounting position.

The product is best compared on the basis that the visible amber or dual-color element is required alongside the main work-light face, while the square bracket-mounted housing and six rectangular matrix blocks match the available mounting position. It can be assessed for custom equipment builds and upfits that call for a verified white/amber configuration. Before fitting it, verify supply voltage, physical clearance, aiming range and the exact work target on the machine.

Material Aluminum
Input Voltage 9-36V

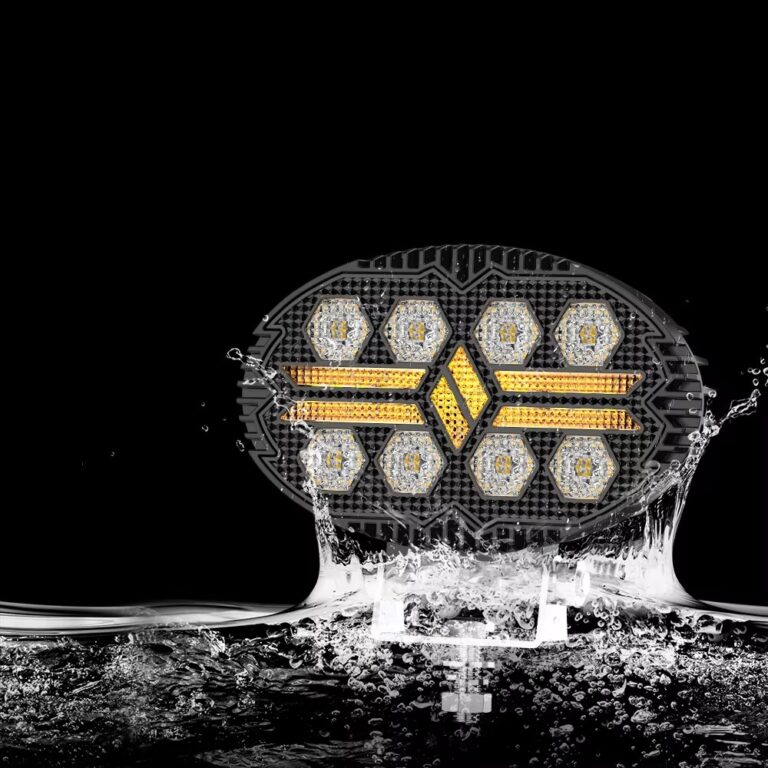

Ingress Protection IP68/IP69K
LED Configuration Main light — 32 × 1 W (SMD 3030) DRL — 20 × 0.5 W (SMD 3030)
Rated Power 19W
Operating Current 1.6A
Theoretical Luminous Flux 1600LM
Light Color White+Amber
Beam Pattern Spot+DRL
Cable 26cm
Certificate Listing CE /ECE R10
Package Dimensions 160 × 120 × 60 mm
Gross Weight Per Set 508g

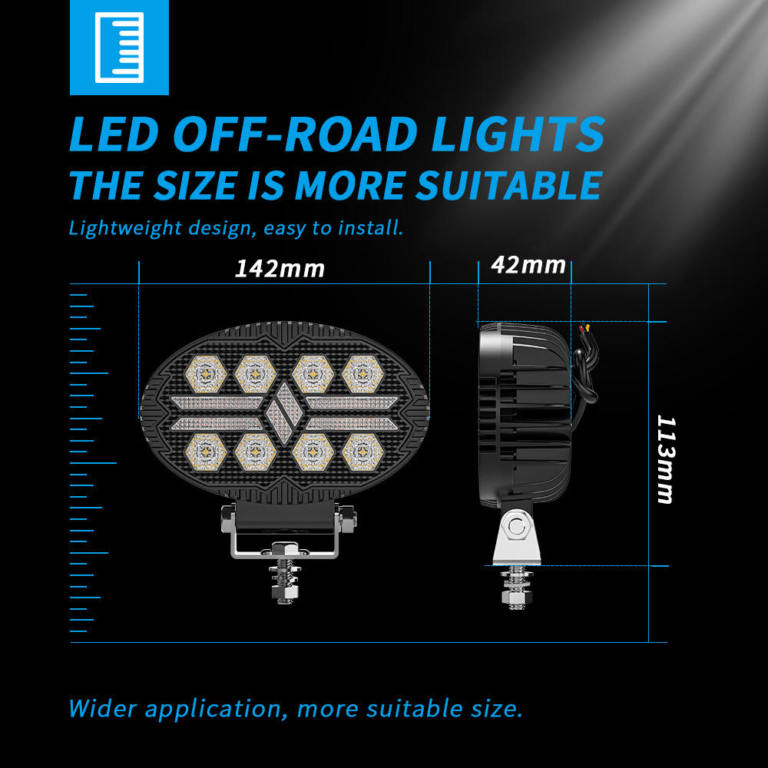

Dimensions

5.5´LED WORK LIGHTS
