Twin-Square Forklift Work Light with Amber Bar
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
When should I choose the twin-square forklift work light?

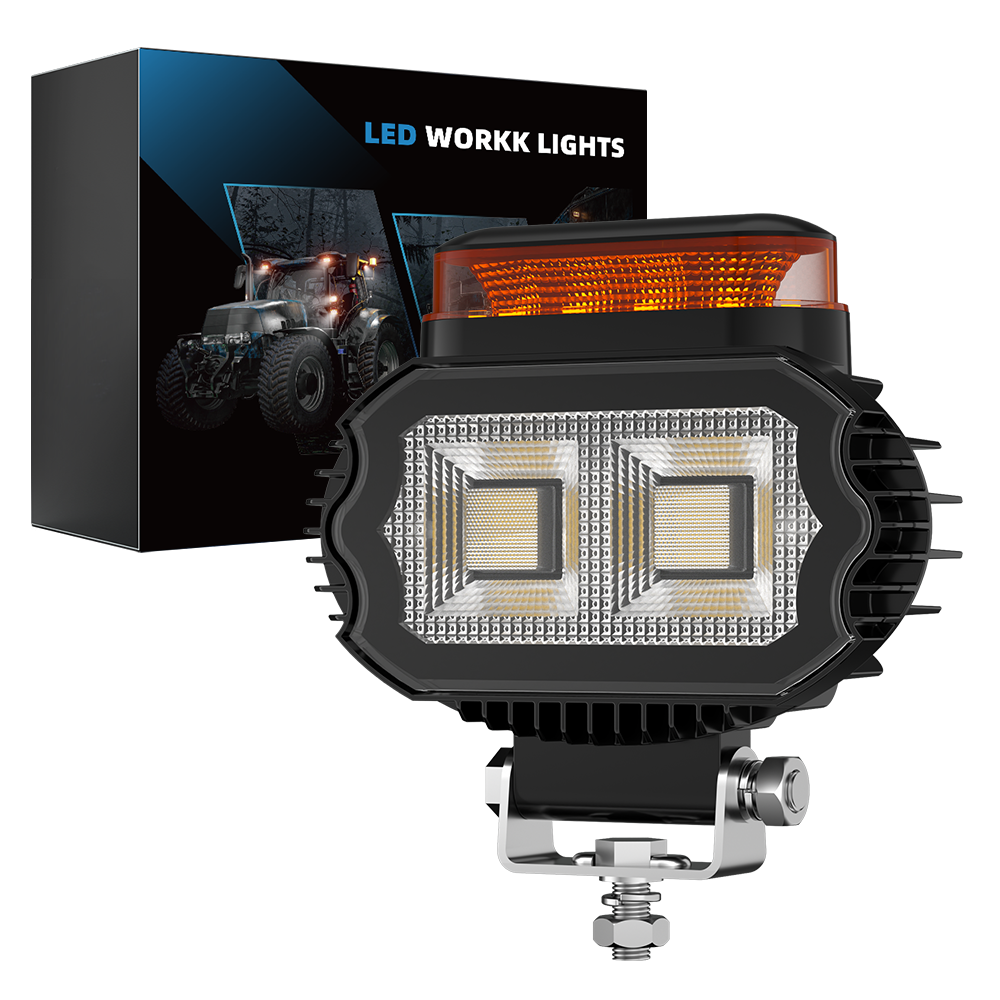

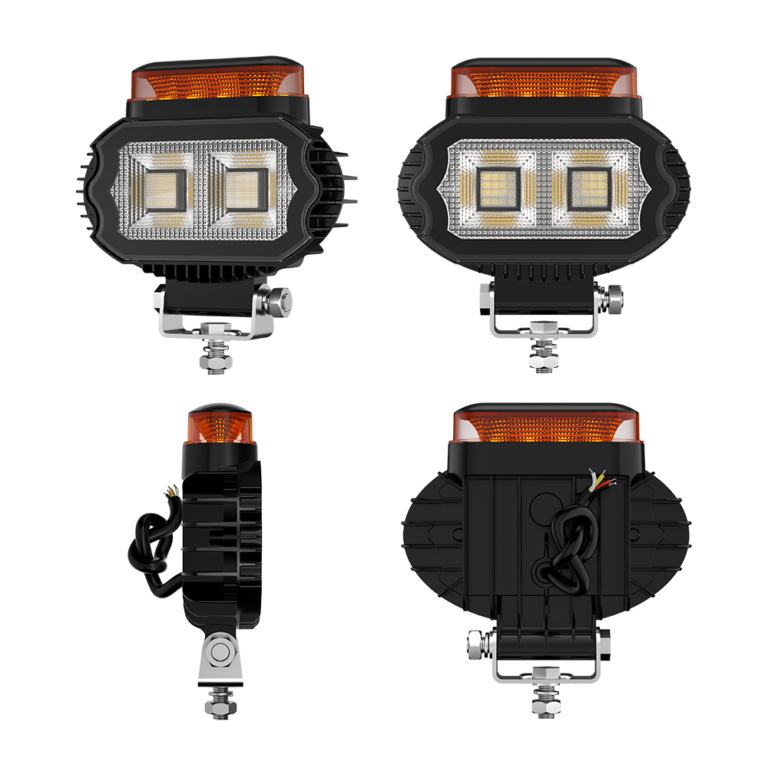

The Twin-Square Forklift Work Light with Amber Bar has two large square work-light modules with textured side optics. An amber strip runs along the top of the 5.5-inch rectangular face. Its white main light provides a flood beam. Choose 55C-FS-T5 when the equipment design calls for two square optical modules. The twin-round 55C-FS-T1 offers a different face in the same nominal-size group. Send us the mounting position, accessory voltage and quantity so we can review bracket clearance and the required connection arrangement. Browse the DXZ forklift light range or ask us to review the configuration for your order.
Nominal Size
5.5 in
Material
Aluminum + ABS
Input Voltage
9–36 V DC
Ingress Protection
IP68
LED Configuration
Main light — 32 × 1 W SMD 3030 LEDs; amber secondary light — 10 × 0.5 W SMD 3030 LEDs
Rated Power
18.7 W
Operating Current at 12 V
1.55 A
Theoretical Luminous Flux
6400 lm
Light Color
White + Amber
Beam Pattern
Flood
Cable Length
22 cm

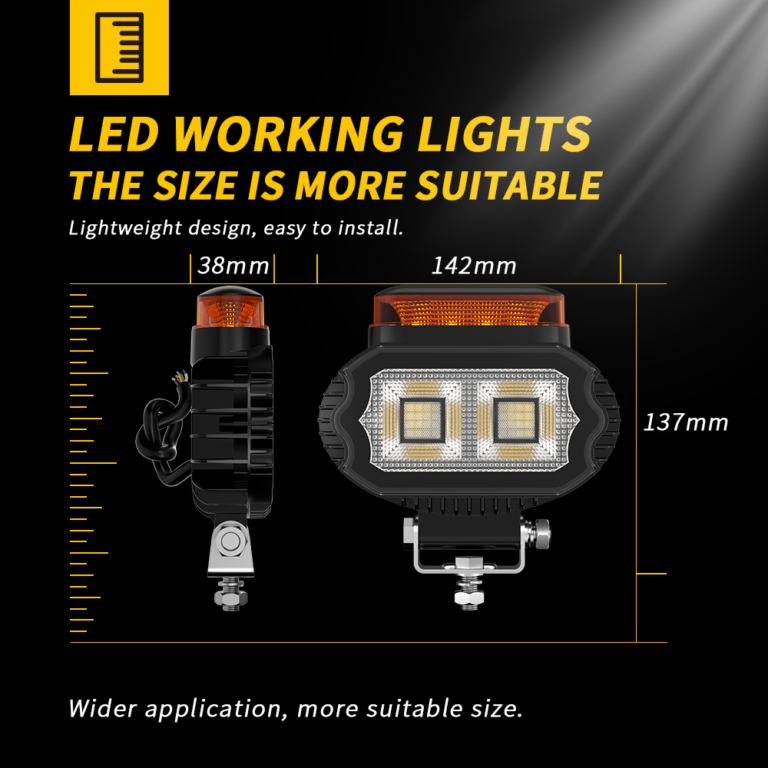

Package Dimensions
168 × 150 × 55 mm
Gross Weight Per Set
537 g
How is this forklift work light tested before release?
Every DXZ forklift-light model goes through repeated laboratory testing before release. See the DXZ laboratory and test-method library when comparing suppliers. For 55C-FS-T5, send us your application and configuration so we can review the test information relevant to your order.
Which certificates can I get for this forklift work light?
The available documents list 55C-FS-T5 among their models. Download FCC PDF (2026-02-02), CE-EMC PDF (2022-11-16) and RoHS PDF (2022-11-16), or view the certificate library. Contact DXZ for the latest documents for your model and destination market.
