Square Off-Road Spot Light Pair
3C02
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
What does the 3C02 square LED pod light pair offer?

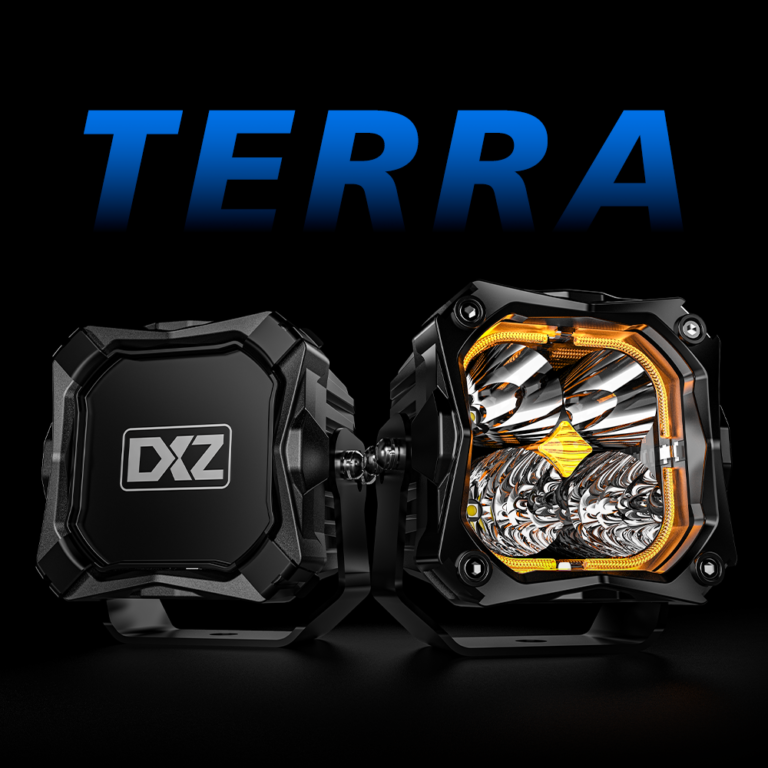

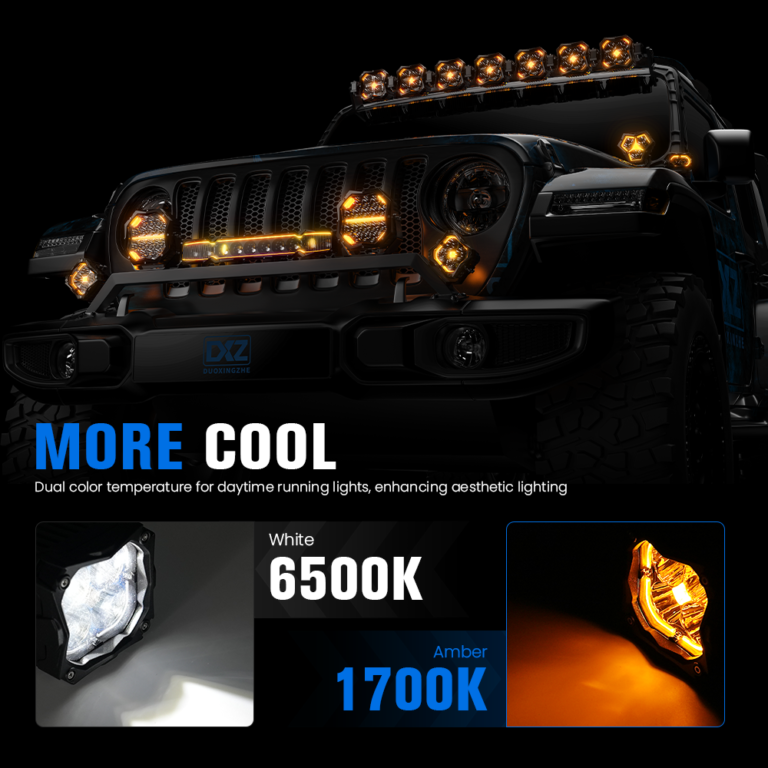

This square off-road spot light pair adds white forward illumination and an amber accent to a compact vehicle lighting setup. Each lamp has a four-section optical face framed by the accent light, giving the pair a defined square appearance. The harness controller assigns the white main beam to button A and the amber DRL to button B, keeping the two lighting functions easy to distinguish.
What is included with the 3C02 LED pod light pair?
Choose this set when square pods suit the mounting position and you want a straightforward white-and-amber arrangement. The package lists two lamps with covers, brackets and a wiring harness, supporting a matched installation on the vehicle. Check clearance around both mounting positions and plan the harness route before fixing the lamps in place. Compare DXZ LED pod lights for other beam and mounting options, or send us your sample shortlist to confirm your supply configuration.

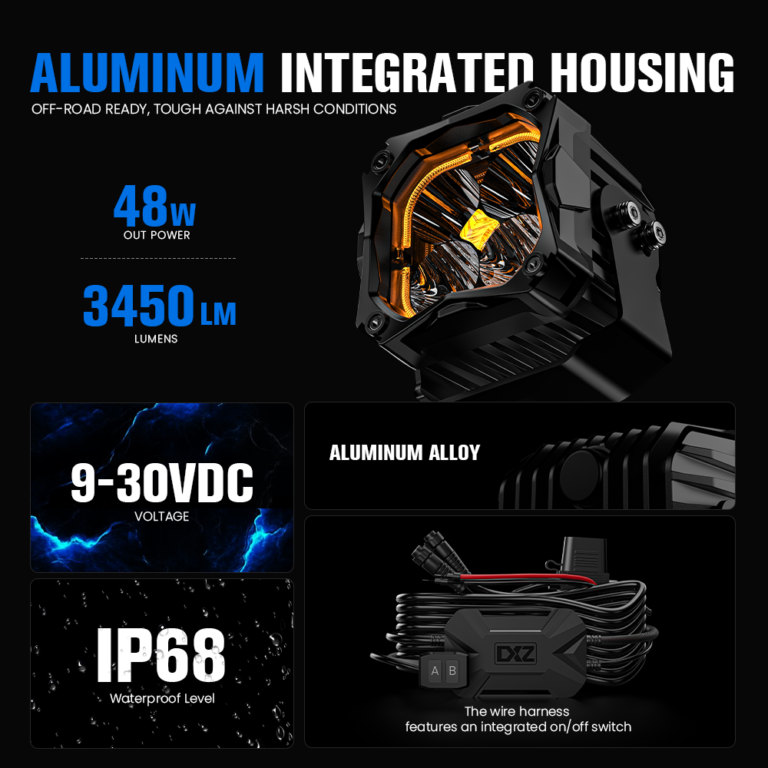

Voltage
9–30 V DC
Power
48 W
Beam Pattern
Spot + DRL
Light Functions
White main light; amber DRL
Control

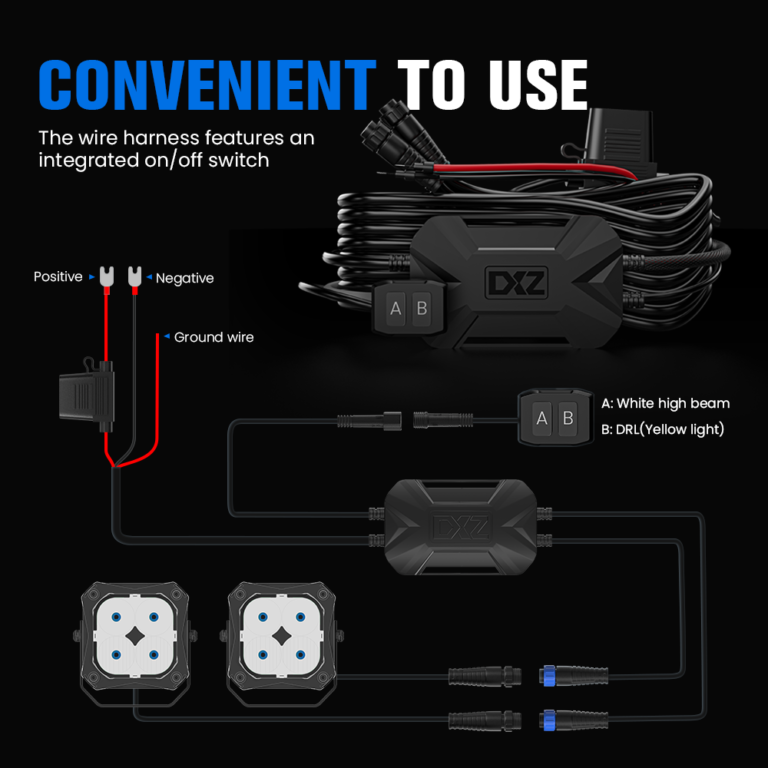

Harness switch: A white main beam; B amber DRL
Luminous Flux
3450 lm

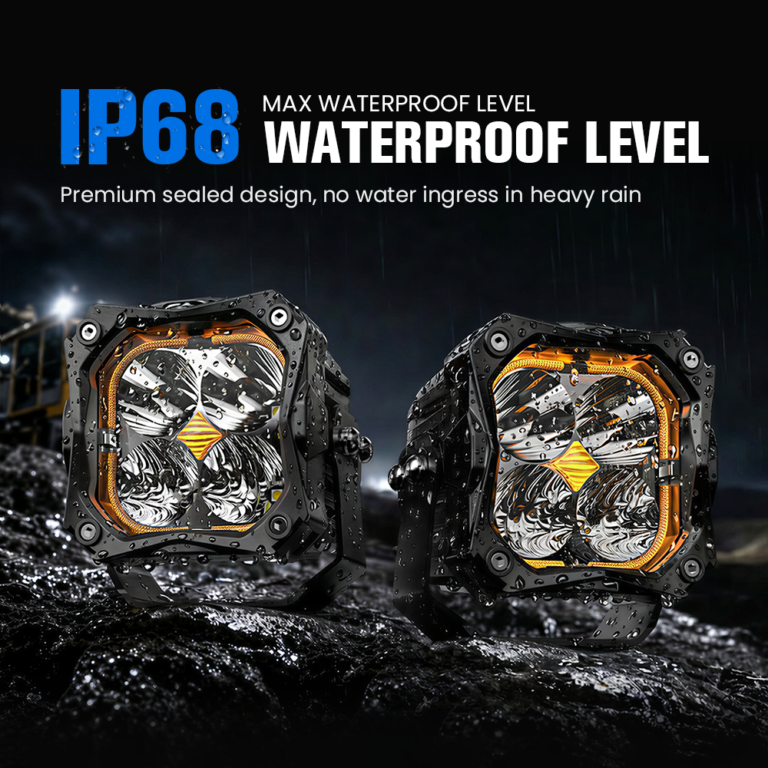

IP Rating
IP68
Cable Length
3 m
Housing Material
Aluminum

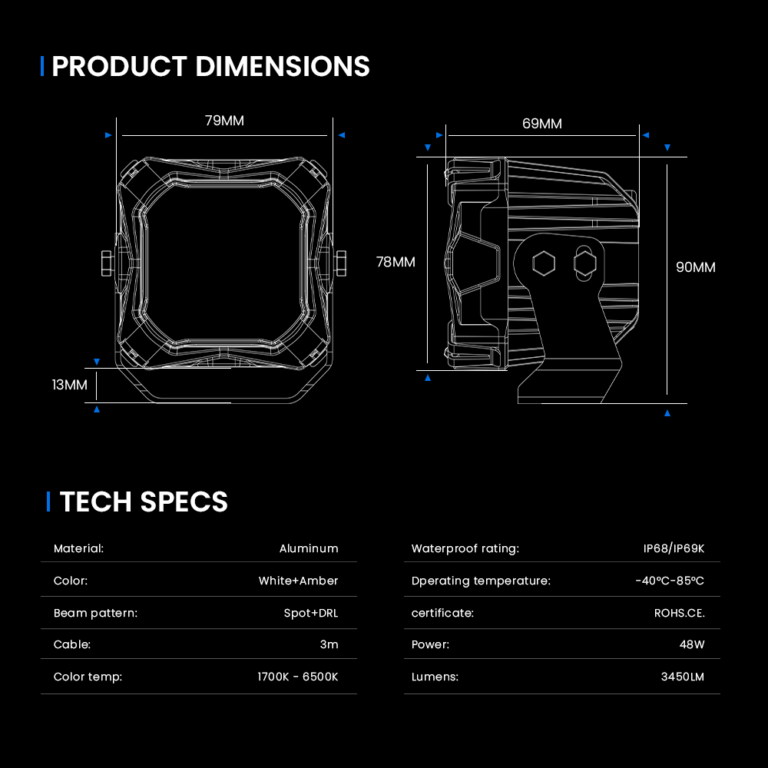

Lamp Width
79 mm
Overall Height
90 mm
Set Contents
2 LED off-road spot lights; 2 yellow covers; 2 black covers; 1 wiring harness; user manual; 2 mounting brackets; 2 sets of fixing screws
Package Dimensions
310 × 205 × 120 mm
Gross Weight per Set
2000 g
Carton Quantity
5 sets
Carton Dimensions
62 × 32 × 22 cm
Carton Gross Weight
11 kg
Package/Size
310×210×120mm
CTN/CM
62×32×22cm
QTY/CTN
5Set
G.W/Set
2000g
G.W
11Kg
Guarantee Period
3 years
