Off-Road Light Pair with Textured Optics
3C05
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
What does the 3C05 LED off-road light pair offer?

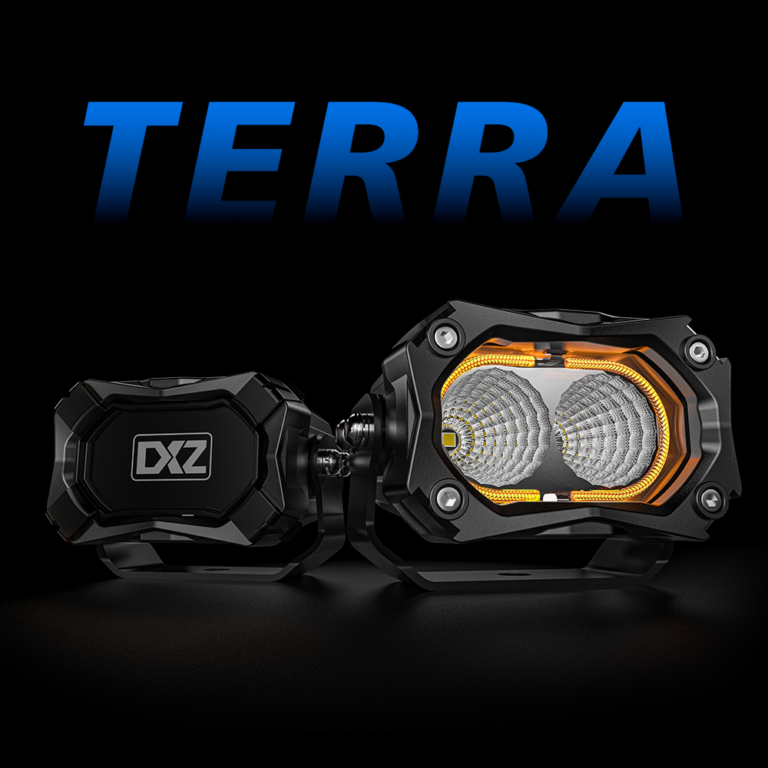

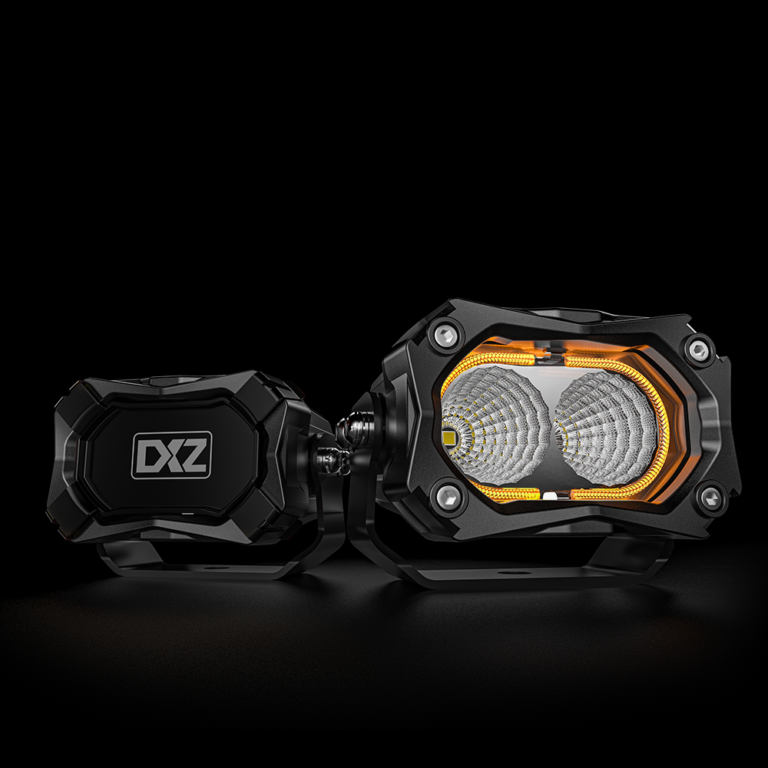

This off-road light pair has two textured optical faces in each compact rectangular housing, with an amber accent tracing the front. White main lighting and amber DRL have separate A/B harness controls. The textured face gives this version a distinct appearance within the small rectangular TERRA lamp range.
Will the 3C05 LED light pair fit your installation?
Choose this pair when that optical finish and a low horizontal outline suit the vehicle build. Each lamp measures 79 mm wide, 61 mm high overall and 71 mm deep. The set includes two lamps, covers, brackets and a harness. Check mounting clearance and cable routing for the intended positions. Compare DXZ LED pod lights for other beam and mounting options, or send us your sample shortlist to confirm your supply configuration.

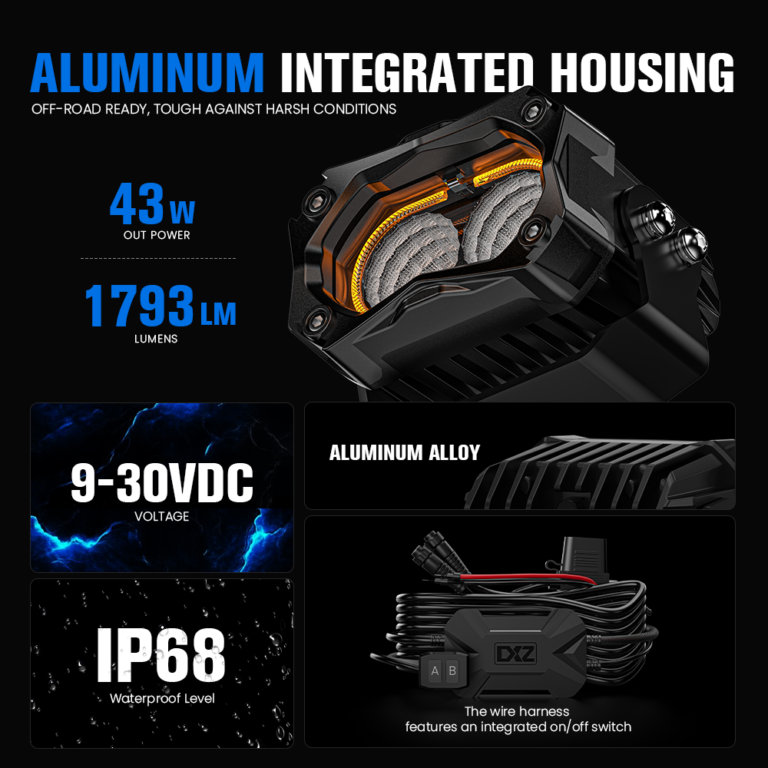

Voltage
9–30 V DC
Power
43 W

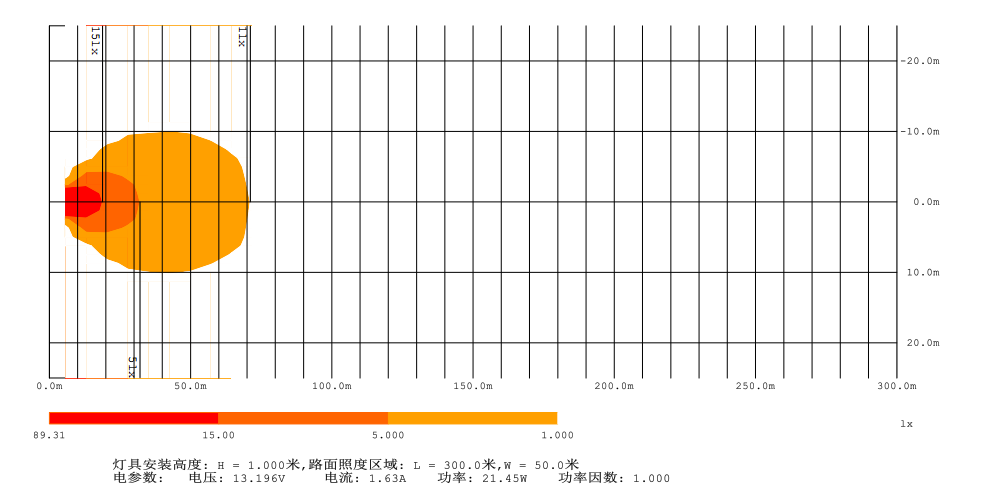

Beam Pattern
Spot + DRL

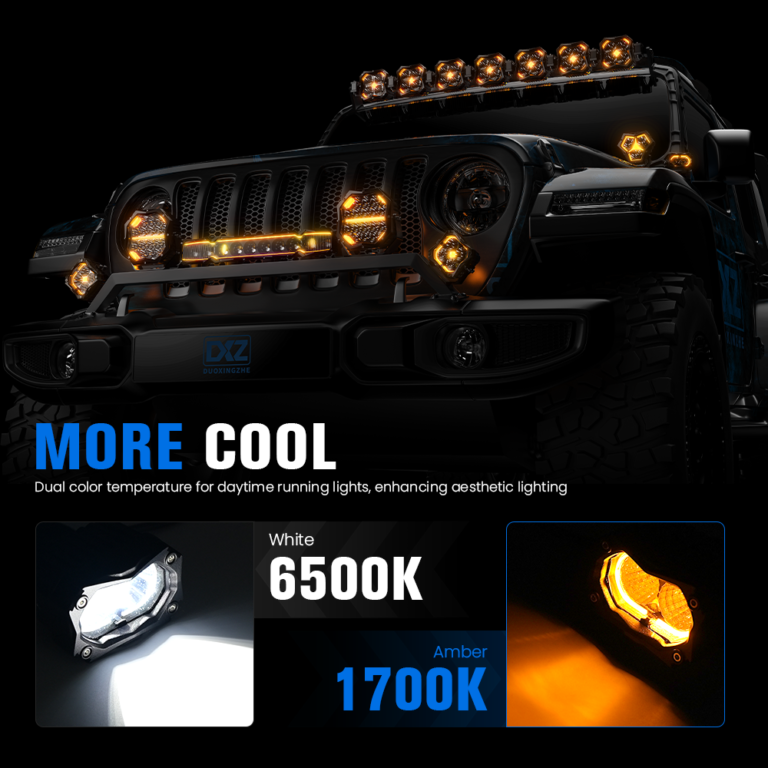

Light Functions
White main light; amber DRL

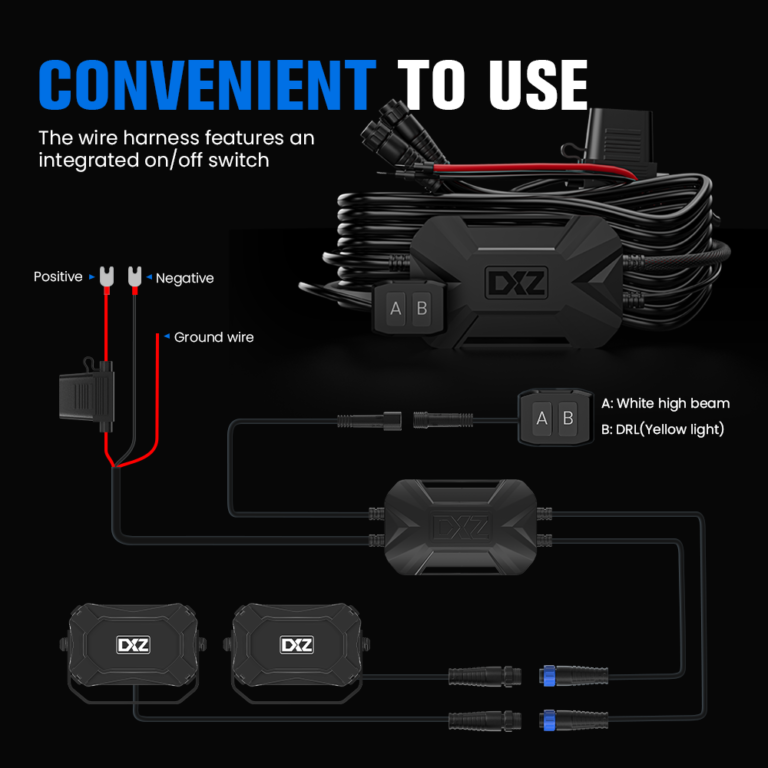

Control
Harness switch: A white main beam; B amber DRL
Luminous Flux
1793 lm

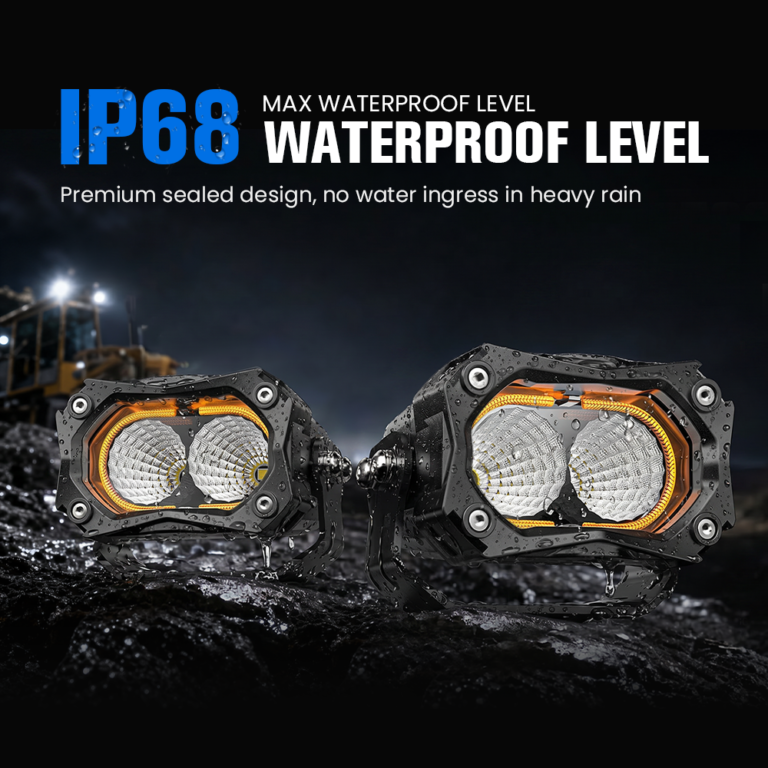

IP Rating
IP68
Cable Length
3 m
Housing Material
Aluminum

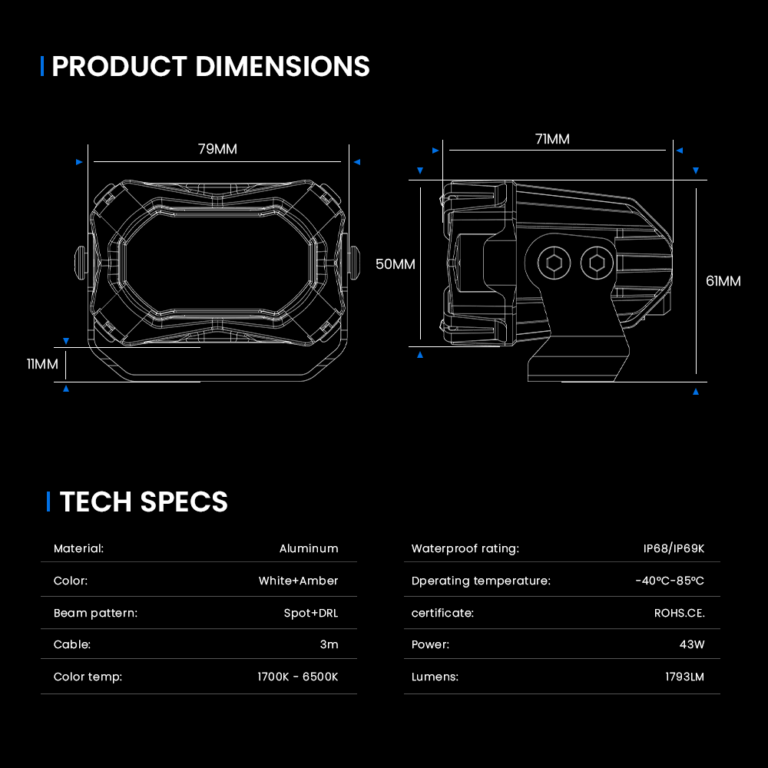

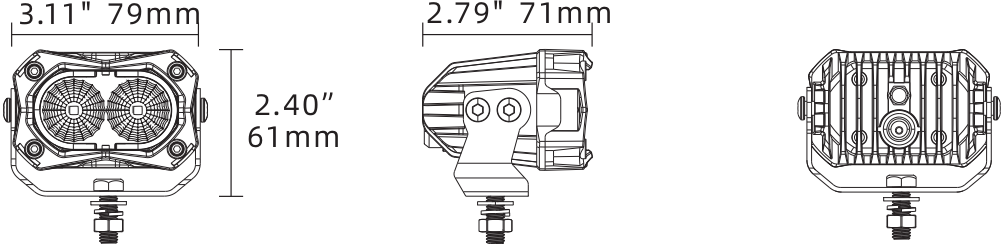

Dimensions
79 × 61 × 71 mm (width × overall height × depth)
Set Contents
2 LED off-road lights; 2 yellow covers; 2 black covers; 1 wiring harness; user manual; 2 mounting brackets; 2 sets of fixing screws
Package Dimensions
310 × 205 × 120 mm
Gross Weight per Set
2000 g
Carton Quantity
5 sets
Carton Dimensions
62 × 32 × 22 cm
Carton Gross Weight
11 kg
Package/Size
310×210×120mm
CTN/CM
62×32×22cm
QTY/CTN
5Set
G.W/Set
2000g
G.W
11Kg
