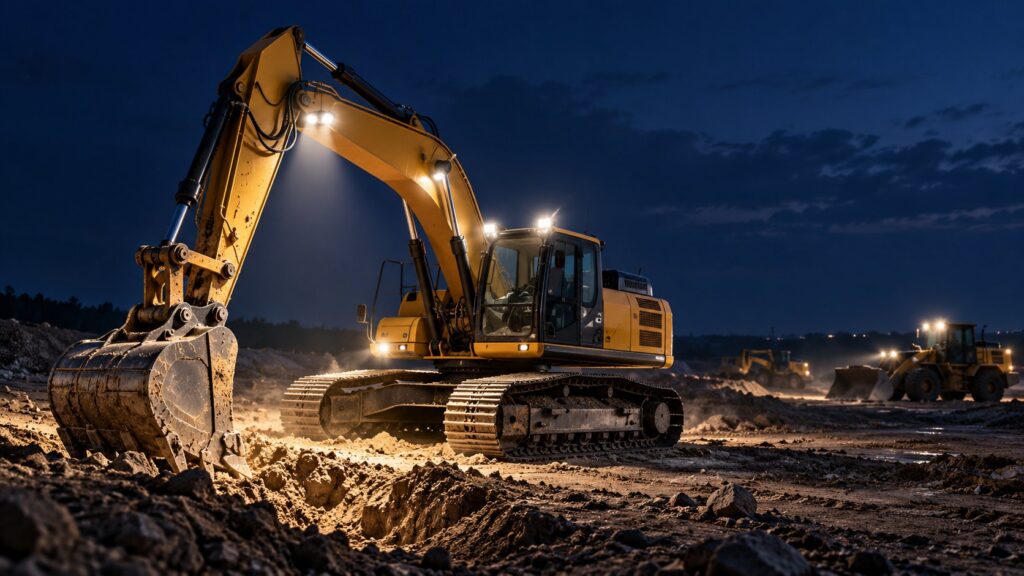

Construction Equipment Lights: LED Work Light Selection Guide

Choose construction equipment lights by the area the operator needs to see. Start with broad coverage for nearby ground, bucket and blade work; compare a concentrated beam when a defined target needs more reach. Then check the exact lamp variant, mounting position and electrical supply on the machine. A single beam choice rarely answers every front, side and rear lighting task.

For excavators, wheel loaders, bulldozers and backhoe loaders, the useful purchase question is: Can this installed light reveal the required surface throughout the intended task? This guide gives fleet maintenance teams and equipment buyers a way to shortlist LED work lights, identify missing specifications and write a practical trial brief.

Start with a work-zone brief

Before comparing lamps, record the target surface, its distance and width, and where the operator will view it. “Excavator light” identifies the machine; “illuminate the bucket teeth and trench floor from this permitted mount” gives a supplier a requirement to assess.

Use the following matrix as a starting point. The beam choices are candidates for evaluation, rather than fixed prescriptions for every machine.

Machine and task	Define the target	Beam to compare first	Check before choosing
Excavator: digging	Bucket teeth, trench floor or trench face	Flood for a broad nearby zone; concentrated beam for a defined distant target	Whether the boom or attachment blocks the light at the required positions
Wheel loader: loading	Bucket edge, pile face and receiving truck or hopper	Flood for the loading area; additional reach where the receiving target requires it	Coverage and operator reflections with the bucket lowered, raised and in the dump position
Bulldozer: grading	Blade edge, ground surface and side references	Controlled flood across the working width	Whether the blade casts a shadow on the surface that matters
Backhoe loader: two working ends	Front loading zone and rear digging zone	Assess a separate pattern for each end	Whether front loading and rear digging can be aimed and controlled appropriately

Assess rear and side work areas separately from the main forward task. Warning, reversing and road-lighting functions need their own requirements; a work lamp’s illumination pattern does not establish those functions.

For a closer look at obstruction and moving shadows, see construction equipment work lighting and blind areas.

Flood vs spot vs combo: which beam should you choose?

A flood beam spreads light across a wider task area. A spot beam concentrates it into a narrower area. A combo beam combines distributions, but its label does not tell you how much useful light reaches either zone. Compare the beam plot for the exact optical variant at your proposed mounting height and aim.

• Compare flood or wide coverage when the operator needs to see nearby ground, a broad blade edge or a loading area. Check the edges of the required zone as well as the bright centre.
• Compare a concentrated beam when a particular trench face, pile crest or receiving target is farther away. Confirm that the narrower pattern still covers the target as its position changes.
• Compare a combo pattern or separate lamps when near coverage and distant reach are both needed. Separate lamps may give more control over aiming, subject to the machine’s approved mounting and electrical arrangements.

Do not select a beam from the product photograph alone. Optical face appearance, LED count and words such as “flood” or “spot” cannot replace distribution evidence. If a product name and specification field disagree, ask for the exact SKU, optical variant and matching beam plot before specifying it.

What changes between an excavator, loader, dozer and backhoe?

Excavator work lights: check digging and perimeter coverage

Separate bucket and trench illumination from the nearby ground and rear work area. A cab-mounted lamp may cover part of the task while the boom interrupts another part of the light path. A different permitted mounting position may improve coverage without increasing lamp power.

Evaluate the intended digging positions and target distances. If a boom-mounted candidate is considered, include attachment clearance and cable movement in the installation review. Nordic Lights’ excavator application guidance illustrates why distribution and mounting geometry belong in the same assessment; its product performance figures do not establish DXZ performance.

Wheel loader lights: evaluate the bucket cycle

Define the loading target and the receiving target separately. Light that reaches the pile with the bucket low may be blocked or redirected relative to the task when the lift arms and bucket rise.

Record what the operator needs to see during approach, loading, lifting and dumping. Check direct glare and reflections from the bucket or glazing from the seated position. Adding a brighter forward lamp is useful only if its light reaches the required target without creating another viewing problem.

Bulldozer lights: preserve useful blade and ground detail

Start with coverage across the blade’s working width and the ground immediately relevant to grading. Include any side reference the operator uses. A bright patch ahead of the machine does not demonstrate that blade edges and surface changes are easy to distinguish.

Compare permitted positions and aim with the blade in the relevant secured positions. Keep rear or side work-area lighting as a separate requirement, so it can be assessed against its own target and viewing direction.

Backhoe lights: write two requirements

A backhoe loader combines front loading and rear digging. Assess each working end independently, including the operator’s viewing position and the attachment that may interrupt the light.

Specify the front bucket and nearby ground zone first, then the rear bucket, trench or excavation target. Review switching and aiming with the machine’s existing controls. A successful front-lighting trial does not establish that the rear digging area is adequately illuminated.

How many lumens do construction equipment lights need?

There is no single lumen figure that proves suitability for every excavator, loader or dozer. Lumens describe luminous flux; lux describes illuminance at a receiving surface. A lamp can have substantial total output while distributing too little of it onto the required work zone. The CIE definition of lumen and definition of illuminance explain the distinction.

Ask whether a published lumen value is theoretical LED output or a measured value for the complete lamp. Then request distribution information that identifies:

• The exact model and optical variant.
• Supply voltage and operating condition.
• Mounting height, aim and target distance.
• The receiving plane: ground coverage and a vertical trench face are different evaluations.
• Illuminance across the required zone, including the less brightly lit areas.

Compare candidates under equivalent conditions. One peak lux value does not describe the whole work area, and a beam plot for another product family does not validate a proposed work light. DXZ, a manufacturer of automotive and equipment LED lighting, publishes a goniophotometer testing resource describing its measurement setup and limits. Request evidence matched to the candidate you are evaluating.

Will a 9–36V work light fit a 12V or 24V machine?

A published 9–36V input range includes nominal 12V and 24V supply voltages. It is one compatibility check. It does not, by itself, prove that the lamp is a direct replacement for the machine’s original light or that the complete circuit is suitable.

Have the installer verify the available supply, circuit capacity, switching arrangement, connector, polarity and cable routing against the lamp and machine documentation. Ask for current information at the intended supply voltage and any relevant inrush or transient-protection documentation. Select wiring and protection through the approved installation design.

For a retrofit, also compare bracket fit, aiming travel and control behaviour with the original installation. Avoid treating a wide voltage range as permission to bypass these checks.

IP68 / IP69K: what should a buyer verify?

Treat an IP marking as a claim about specified ingress tests. Ask for the standard and edition, exact model, tested assembly and test conditions behind it. ISO 20653 describes enclosure protection codes and associated testing for road-vehicle electrical equipment, including special K-code requirements.

For a lamp listed as IP68 / IP69K, request the immersion and pressure-wash evidence applicable to that variant. Check whether the connector arrangement is included, and follow the manufacturer’s cleaning instructions. A housing rating alone does not answer questions about exposed wiring, damaged seals or the site’s cleaning process.

Review vibration, shock, operating temperature and corrosion separately. Those service conditions need their own documented basis. The DXZ guide to IP67, IP68 and IP69K provides further context for comparing ingress claims.

A DXZ flood candidate to evaluate

For a broad work-area requirement, the 48-Cell Rectangular Flood LED Work Light is a catalog candidate to review. DXZ’s public page identifies SKU 57C-F48F and lists:

• Beam pattern: Flood.
• Input voltage: 9–36V.
• Rated power: 24.9W.
• Ingress protection: IP68 / IP69K.

These are manufacturer-listed specifications, checked on October 6, 2026. They establish the published candidate details; they do not establish installed coverage on a particular excavator, loader or dozer. Request a current datasheet, lamp dimensions, bracket details and a beam plot for the quoted variant before the trial.

For concentrated or combined coverage, use the DXZ LED work-light range to discuss additional candidates against the same brief. Confirm the optical specification before assigning a model to a machine position.

Trial the layout before a fleet order

Use a controlled assessment planned by the responsible equipment and site personnel. Begin with the machine safely secured and attachments supported under the OEM procedure. Record the proposed mount, aiming position and required target surfaces. Any operational evaluation needs a separate site-approved procedure with people excluded from hazardous areas.

1. Check the view first. From the normal operator position, identify targets hidden by machine structure. More illumination cannot remove a physical obstruction. The NIOSH manual method for blind-area diagrams addresses visibility mapping; it is not a work-light acceptance test.
2. Check the light path. Assess whether the boom, bucket or blade interrupts coverage in each relevant secured position.
3. Check the required zone. Review the target’s edges and surface detail, alongside glare and reflections. Include representative dust or weather only where the assessment can be conducted safely.
4. Record the result. Note SKU and variant, supply condition, mount, aim, target distance, machine configuration and observations. Use consistent camera settings if photographs support the comparison; photographs alone are not calibrated illuminance measurements.

Agree the acceptance criteria before ordering more lamps. Define the surfaces that must be distinguishable, the task positions to assess and any measurement method required by the project’s responsible specialist. This makes the trial repeatable across machines.

Send DXZ a selection brief

To discuss a work-light candidate, provide:

• Machine make, model and attachment.
• Front, rear or side task, with target distance and working width.
• Proposed mounting point, available clearance and aiming needs.
• Nominal supply voltage and the installer’s circuit requirements.
• Dust, cleaning, vibration, temperature and corrosion exposure.
• Quantity, intended trial and required documentation.

Use these details to discuss OEM / ODM requirements with DXZ. Ask for the exact SKU and optical variant, electrical and mounting information, and available test evidence matched to the intended installation. The resulting shortlist can then be assessed on your machine before a larger purchase.
