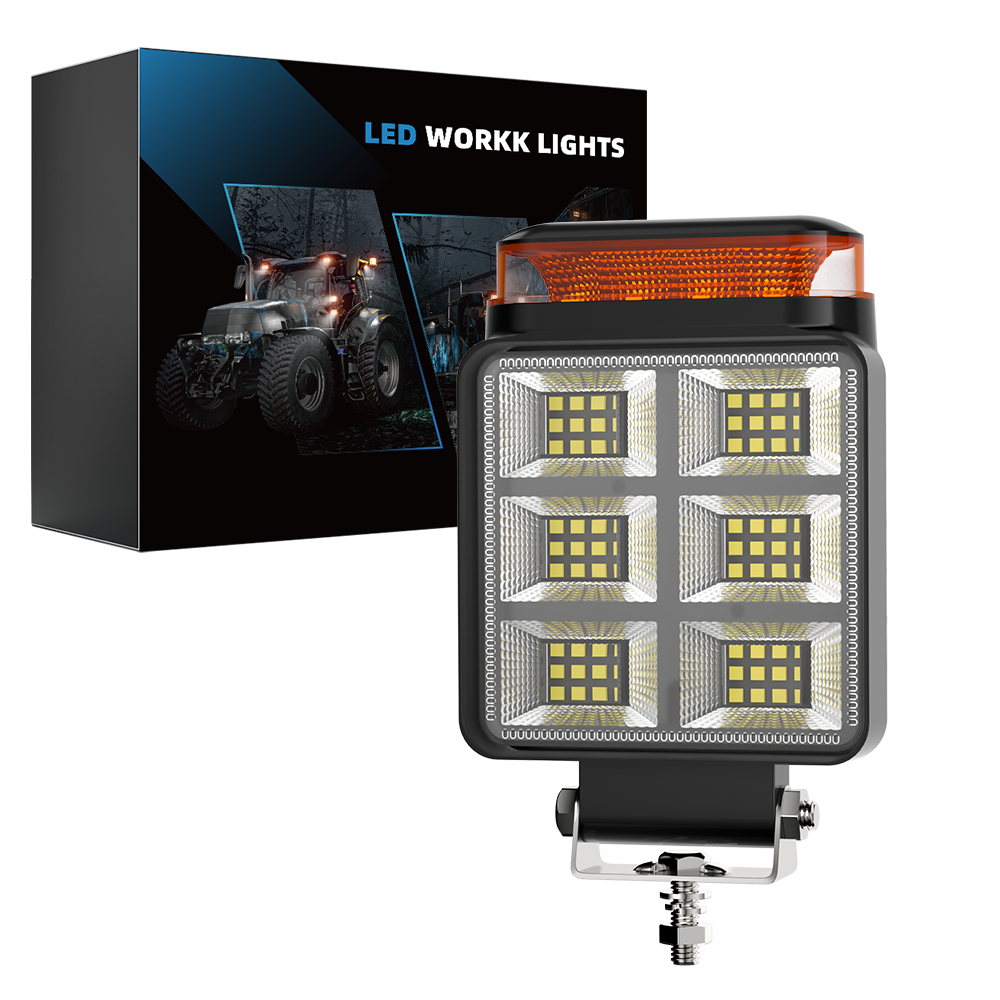

Six-Panel Forklift Work Light with Amber Bar
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
How do I specify the six-panel forklift work light?

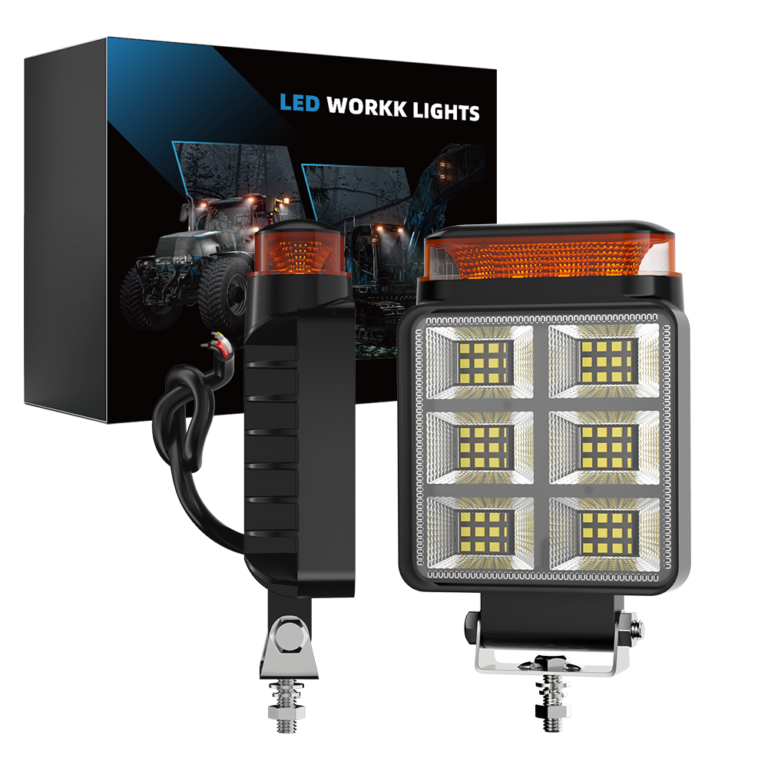

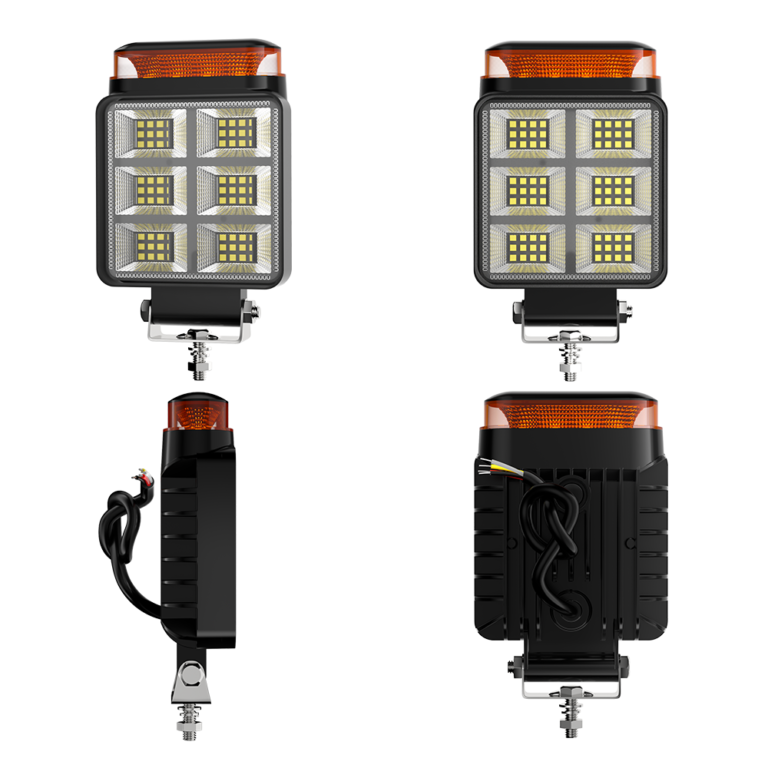

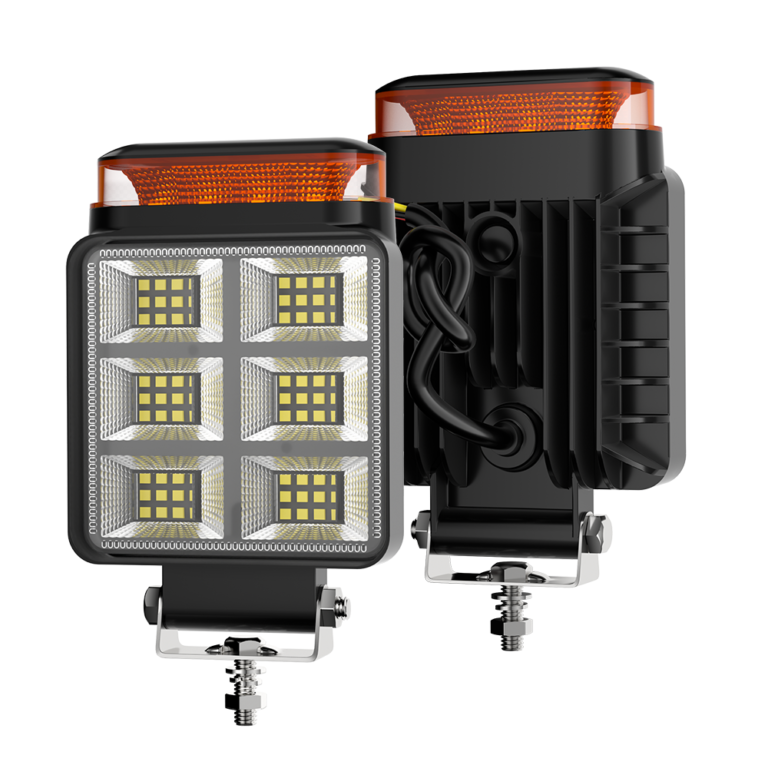

The Six-Panel Forklift Work Light with Amber Bar has six rectangular LED sections below an amber strip. H-37FS-72 is a white flood work light in the 4-inch square family. Its six-panel arrangement gives buyers an alternative to the four-panel H-37FS-80 and the reflector-grid models. Use the specification table to compare rated power and current before selecting the circuit. For a quotation, send the mounting position and work-area direction along with the quantity. Check bracket adjustment and cable clearance at that position, and include your required amber-light wiring arrangement. Browse the DXZ forklift light range or ask us to review the configuration for your order.

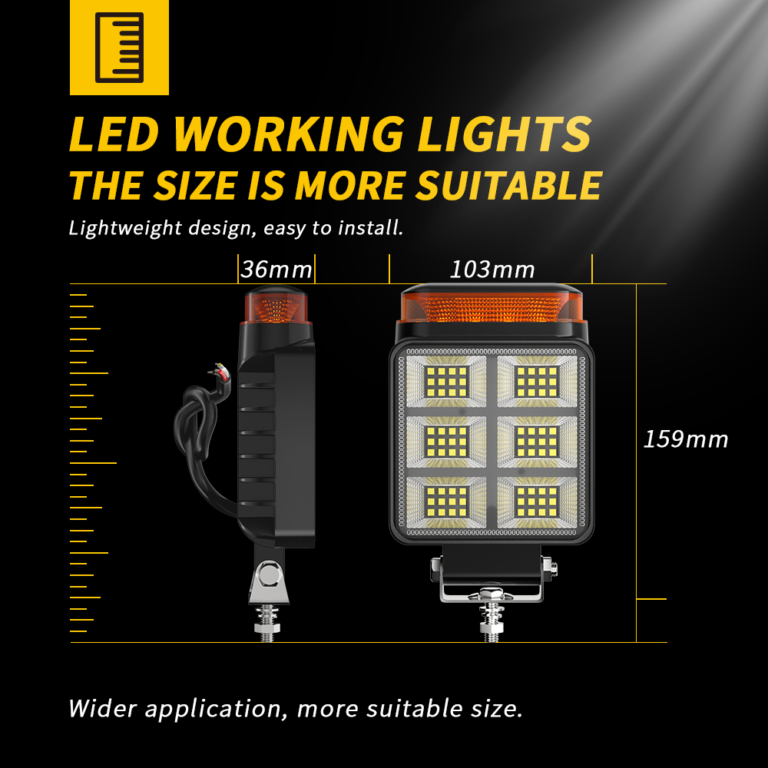

Nominal Size
4 in
Material
Aluminum + ABS
Input Voltage
9–36 V DC
Ingress Protection
IP68
LED Configuration
Main light — 72 × 0.5 W SMD 3030 LEDs; amber secondary light — 10 × 0.5 W SMD 3030 LEDs
Rated Power
19.5 W
Operating Current at 12 V
1.62 A
Theoretical Luminous Flux
8200 lm
Light Color
White + Amber
Beam Pattern
Flood
Cable Length
22 cm
Package Dimensions
168 × 120 × 60 mm
Gross Weight Per Set
560 g
How is this forklift work light tested before release?
Every DXZ forklift-light model goes through repeated laboratory testing before release. See the DXZ laboratory and test-method library when comparing suppliers. For H-37FS-72, send us your application and configuration so we can review the test information relevant to your order.
Which certificates can I get for this forklift work light?
The available documents list H-37FS-72 among their models. Download FCC PDF (2026-02-02), CE-EMC PDF (2022-11-16) and RoHS PDF (2022-11-16), or view the certificate library. Contact DXZ for the latest documents for your model and destination market.
