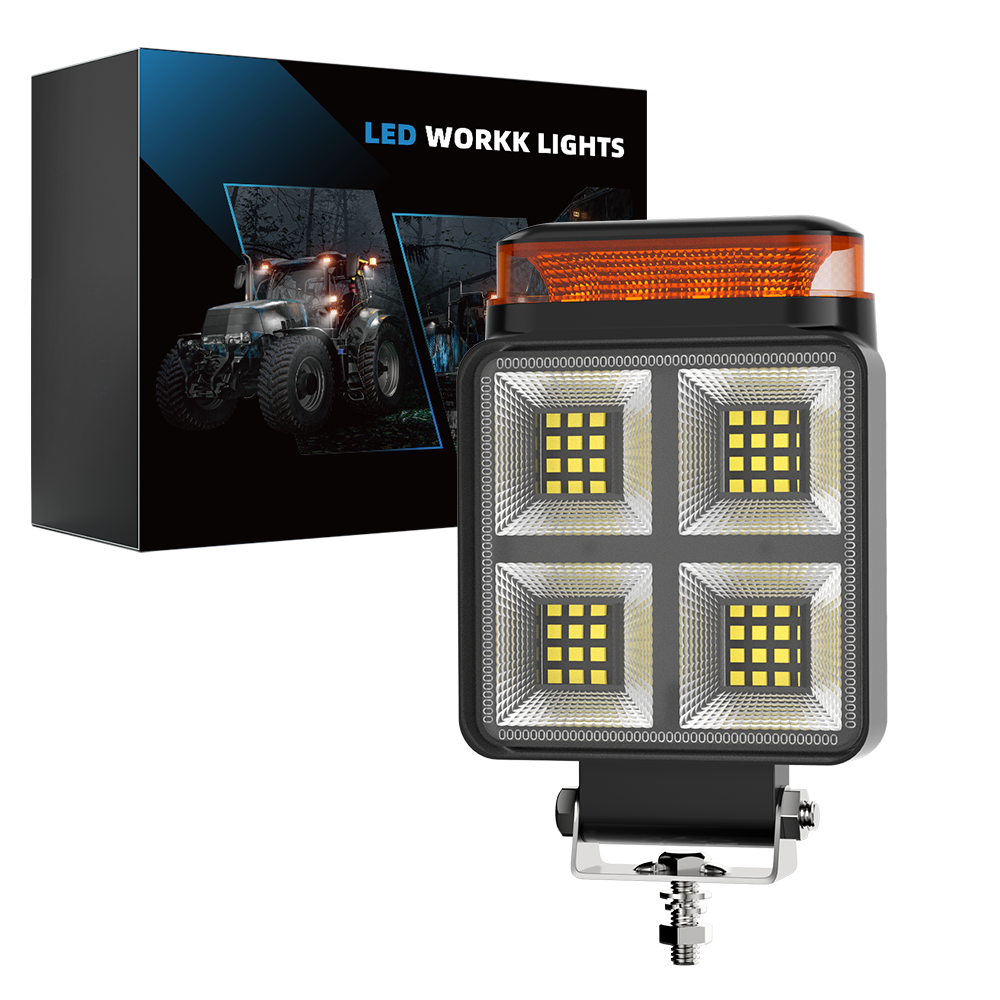

Four-Panel Forklift Work Light with Amber Bar
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
When should I choose the four-panel forklift work light?

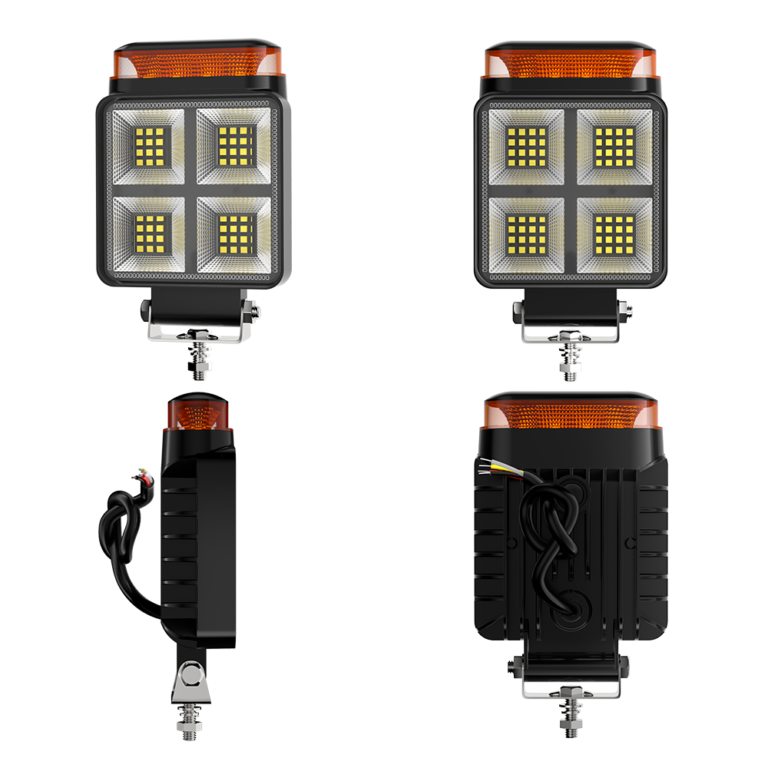

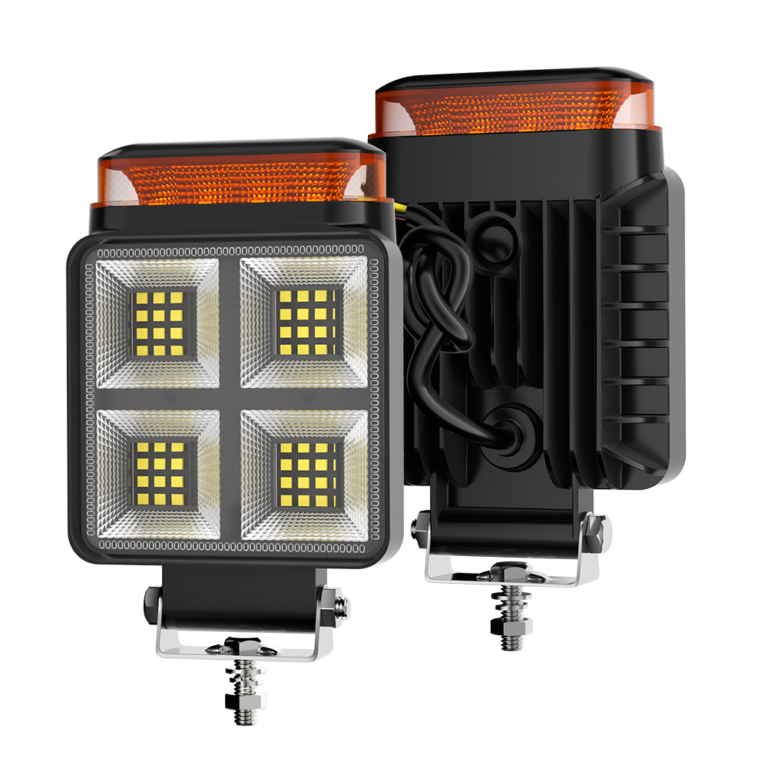

H-37FS-80 divides its white main-light face into four rectangular LED panels, with a separate amber strip above them. The main beam is flood. Choose this version when you want the four-panel layout in the compact 4-inch square family. Compare it with H-37FS-72, which uses six panels, when selecting the lamp face and electrical load. Use the listed rated power for circuit planning; the SKU suffix identifies the model. Send the accessory voltage and mounting position with your quantity so we can review the specification for your order. Browse the DXZ forklift light range or ask us to review the configuration for your order.

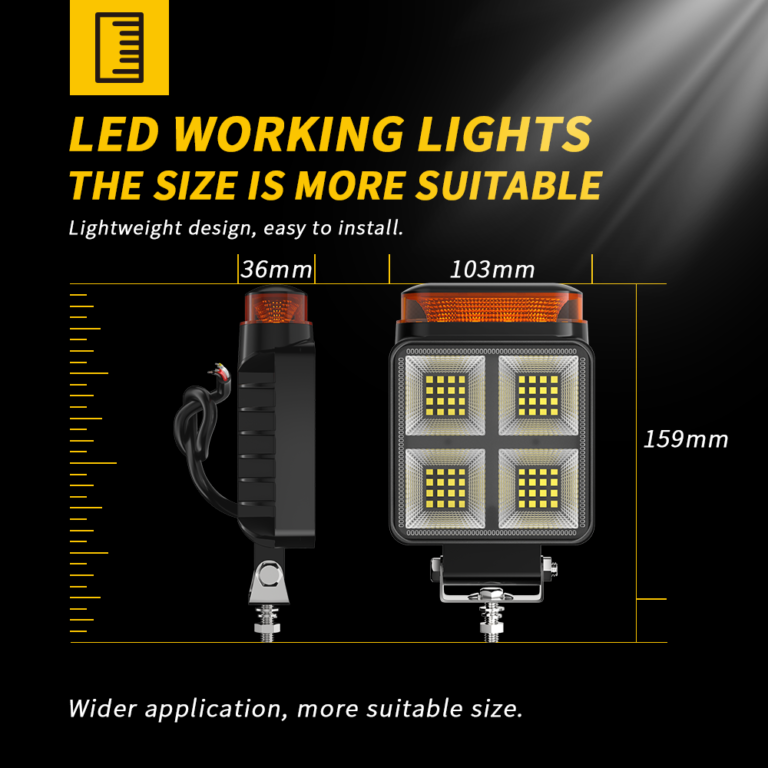

Nominal Size
4 in
Material
Aluminum + ABS
Input Voltage
9–36 V DC
Ingress Protection
IP68
LED Configuration
Main light — 64 × 0.5 W SMD 3030 LEDs; amber secondary light — 10 × 0.5 W SMD 3030 LEDs
Rated Power
18.5 W
Operating Current at 12 V
1.54 A
Theoretical Luminous Flux
9000 lm
Light Color
White + Amber
Beam Pattern
Flood
Cable Length
22 cm
Package Dimensions
168 × 120 × 60 mm
Gross Weight Per Set
570 g
How is this forklift work light tested before release?
Every DXZ forklift-light model goes through repeated laboratory testing before release. See the DXZ laboratory and test-method library when comparing suppliers. For H-37FS-80, send us your application and configuration so we can review the test information relevant to your order.
Which certificates can I get for this forklift work light?
The available documents list H-37FS-80 among their models. Download FCC PDF (2026-02-02), CE-EMC PDF (2022-11-16) and RoHS PDF (2022-11-16), or view the certificate library. Contact DXZ for the latest documents for your model and destination market.
