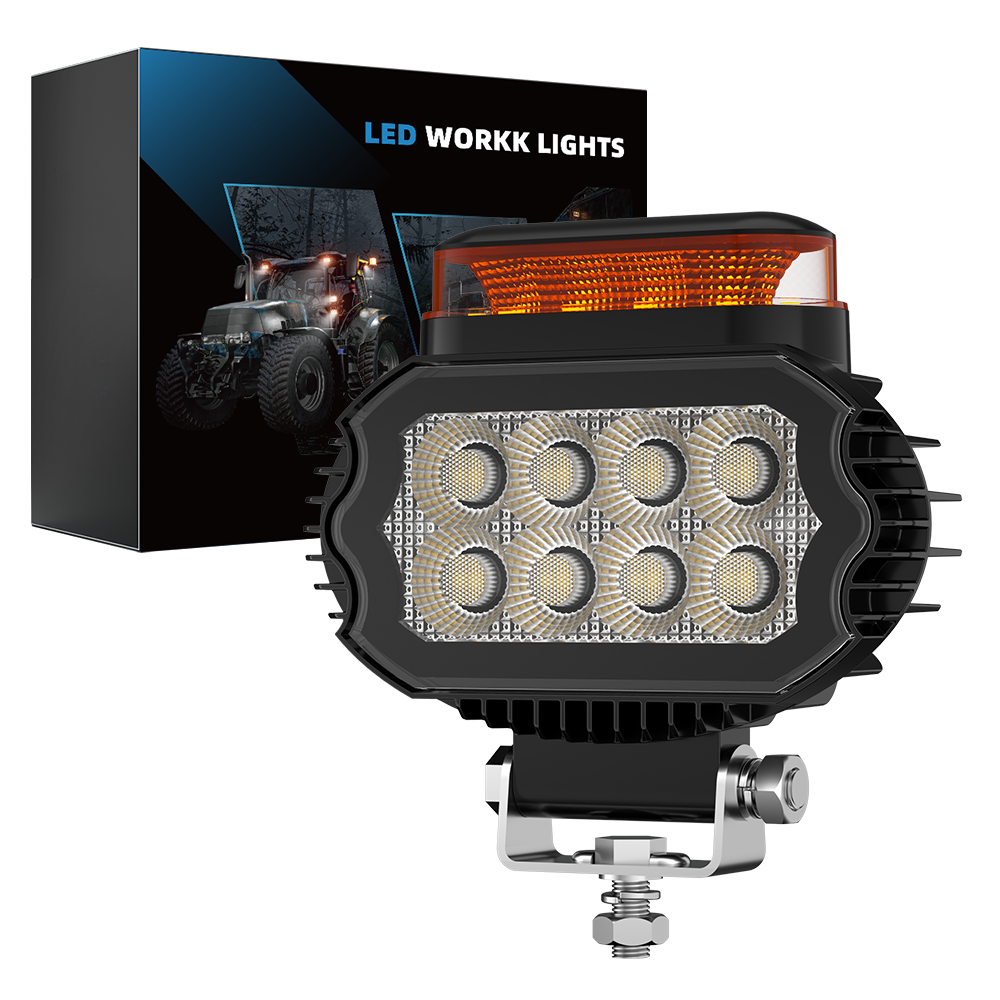

Nine-Optic Forklift Work Light with Amber Bar
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
Is the nine-optic forklift work light suitable for my mounting position?

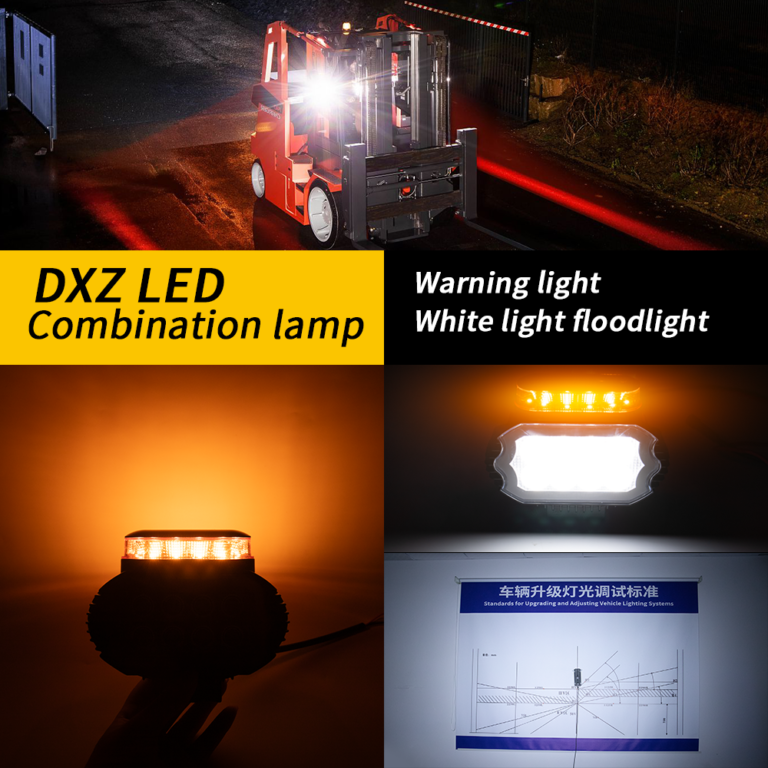

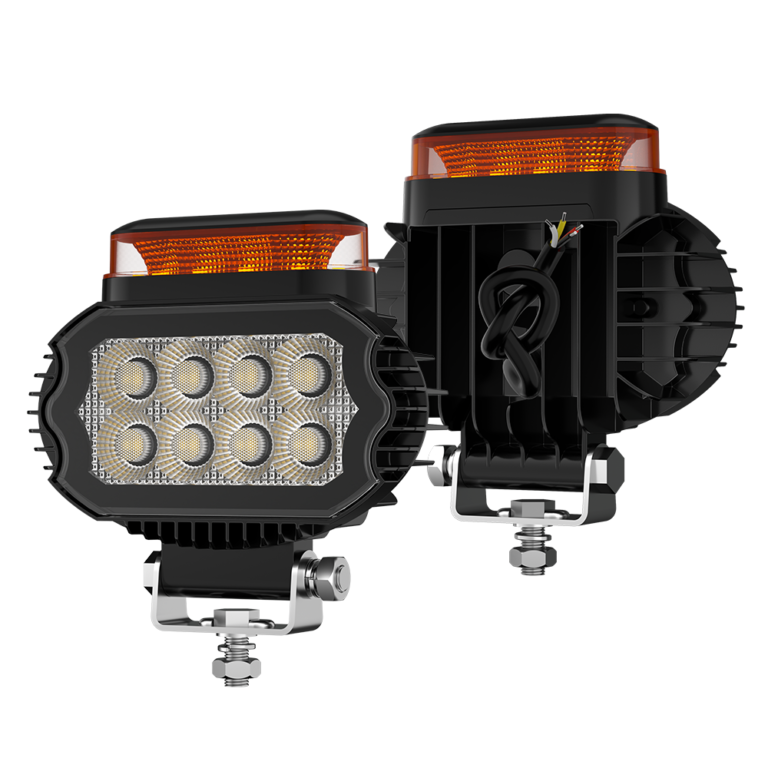

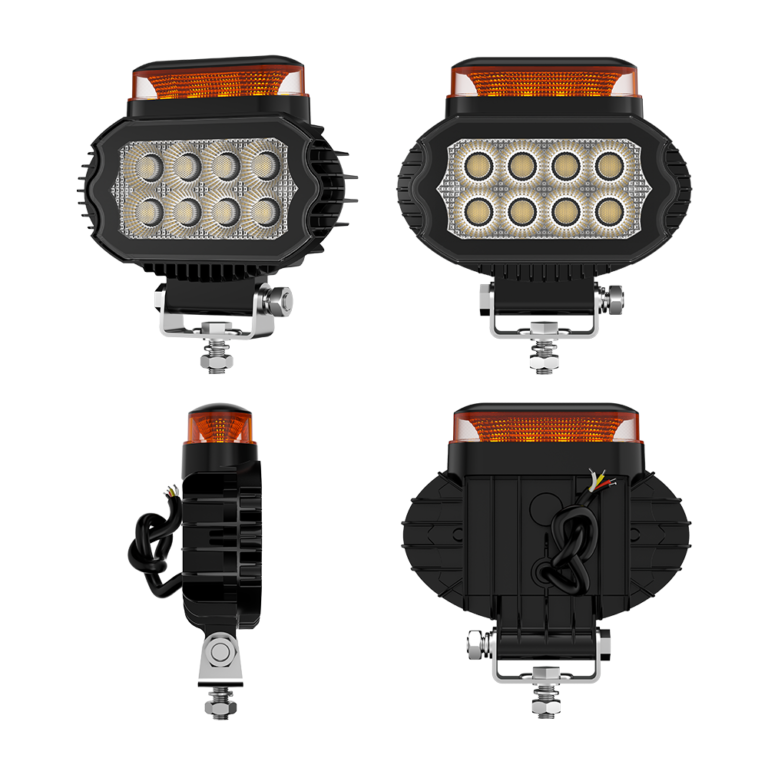

The Nine-Optic Forklift Work Light with Amber Bar uses a distributed multi-optic face in a rectangular housing. The amber strip sits above the white main light. Its flood beam supports nearby work illumination, with a different optical arrangement from the twin-round, twin-square and center-projector versions. 55C-FS-T3 is the option to compare when your project calls for several optics across a 5.5-inch face. Confirm the bracket position and aiming clearance against the truck before choosing the mounting point. Tell us which work surface needs light and how the amber secondary light will be connected. Browse the DXZ forklift light range or ask us to review the configuration for your order.
Nominal Size
5.5 in
Material
Aluminum + ABS
Input Voltage
9–36 V DC
Ingress Protection
IP68
LED Configuration
Main light — 32 × 1 W SMD 3030 LEDs; amber secondary light — 10 × 0.5 W SMD 3030 LEDs
Rated Power
18.7 W
Operating Current at 12 V
1.56 A
Theoretical Luminous Flux
6400 lm
Light Color
White + Amber
Beam Pattern
Flood
Cable Length
22 cm

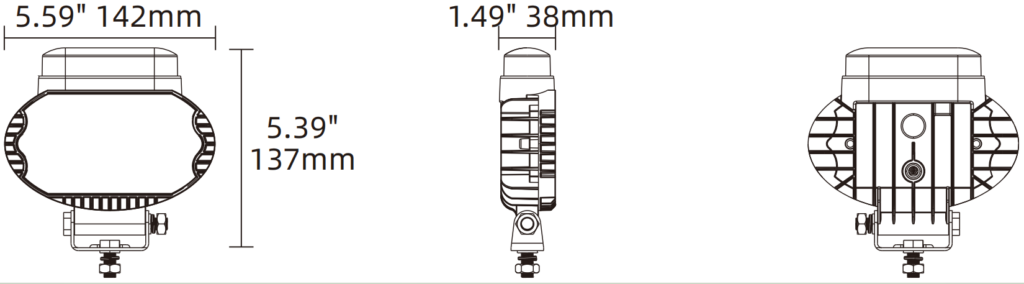

Package Dimensions
168 × 150 × 55 mm
Gross Weight Per Set
545 g
How is this forklift work light tested before release?
Every DXZ forklift-light model goes through repeated laboratory testing before release. See the DXZ laboratory and test-method library when comparing suppliers. For 55C-FS-T3, send us your application and configuration so we can review the test information relevant to your order.
Which certificates can I get for this forklift work light?
The available documents list 55C-FS-T3 among their models. Download FCC PDF (2026-02-02), CE-EMC PDF (2022-11-16) and RoHS PDF (2022-11-16), or view the certificate library. Contact DXZ for the latest documents for your model and destination market.
