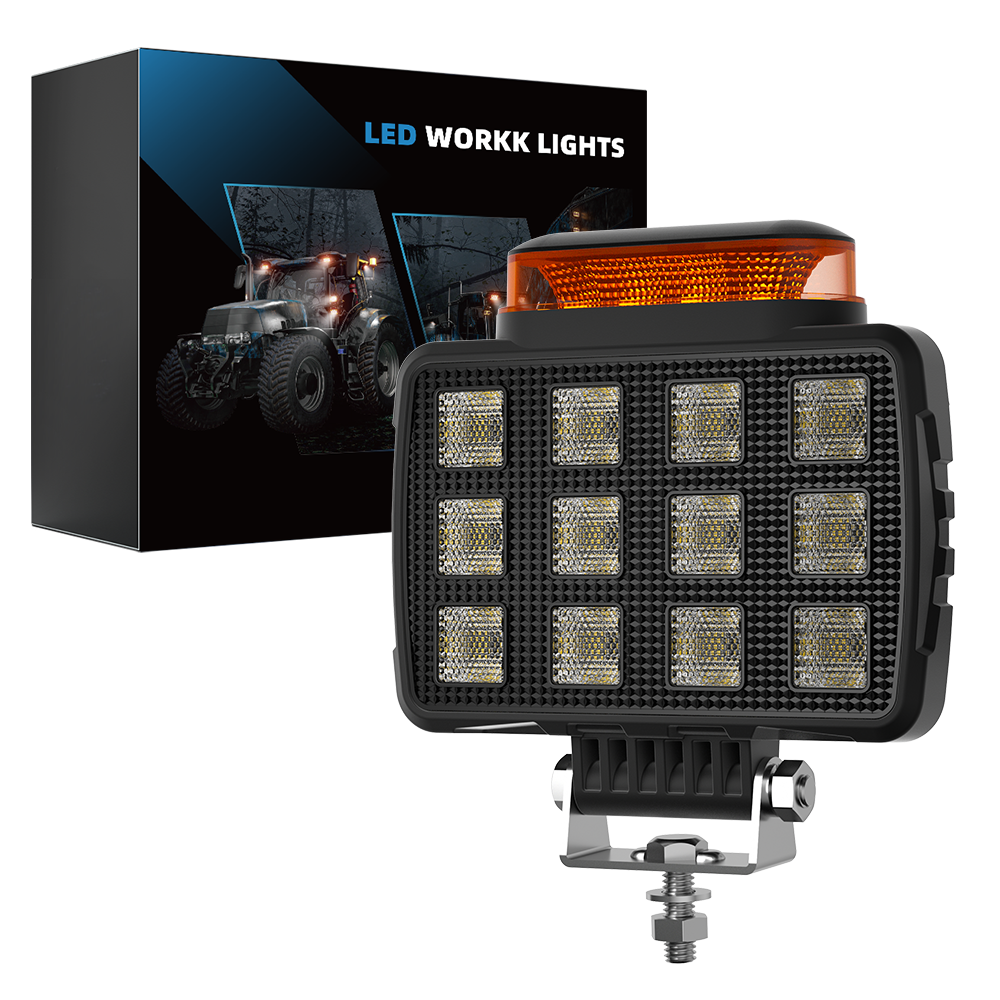

16-Cell Square Forklift Work Light with Amber Bar
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
When should I choose the 16-cell square forklift work light?
The 16-Cell Square Forklift Work Light with Amber Bar uses a four-by-four optical grid below the amber strip. Its square face is the alternative to the horizontal twelve-optic 57C-FS-F48F. Both models use white main lighting with a flood beam. Select this 5.7-inch version for a mounting position that suits a square lamp face. The sixteen visible cells are the optical layout; the main LED configuration is listed separately in the specifications. For a quotation, include the available bracket space, accessory voltage and quantity. Browse the DXZ forklift light range or ask us to review the configuration for your order.

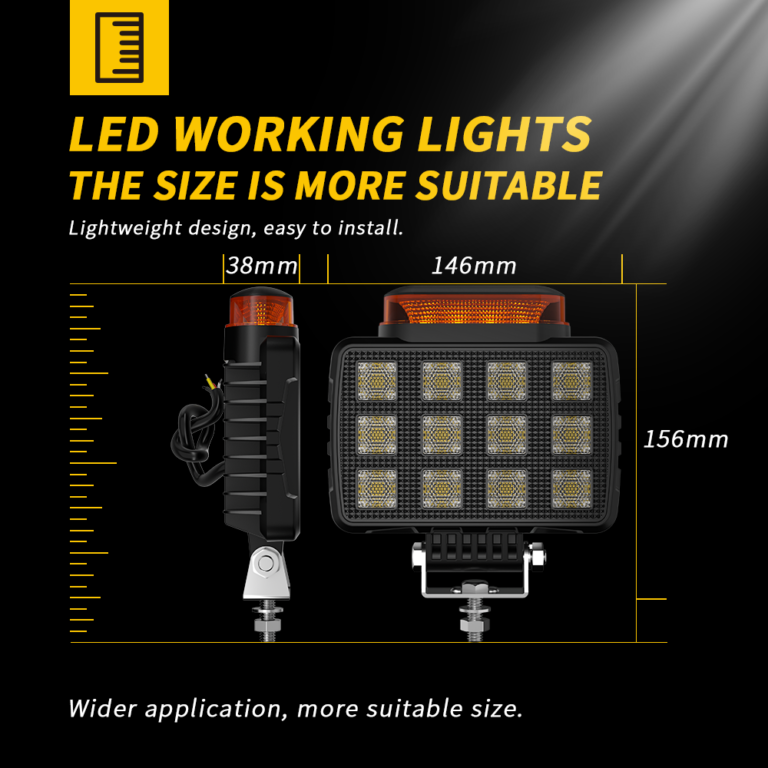

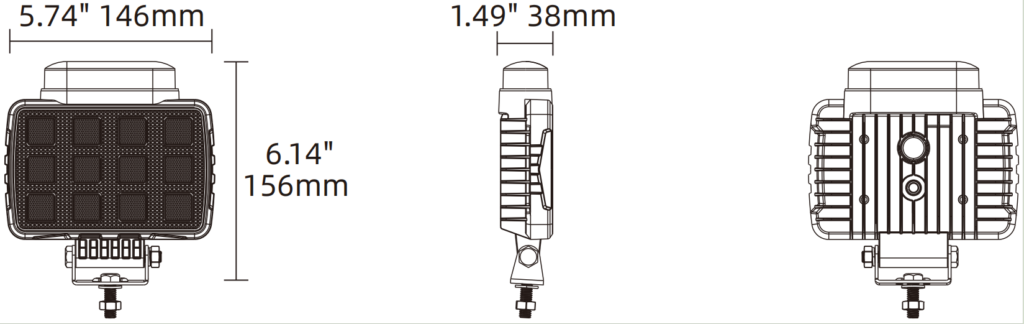

Nominal Size
5.7 in
Material
Aluminum + ABS
Input Voltage
9–36 V DC
Ingress Protection
IP68
LED Configuration
Main light — 48 × 1 W SMD 3030 LEDs; amber secondary light — 10 × 0.5 W SMD 3030 LEDs
Rated Power
40.5 W
Operating Current at 12 V
3.37 A
Theoretical Luminous Flux
6200 lm
Light Color
White + Amber
Beam Pattern
Flood
Cable Length
22 cm
Package Dimensions
168 × 150 × 55 mm
Gross Weight Per Set
730 g
How is this forklift work light tested before release?
Every DXZ forklift-light model goes through repeated laboratory testing before release. See the DXZ laboratory and test-method library when comparing suppliers. For 57C-FS-F48, send us your application and configuration so we can review the test information relevant to your order.
Which certificates can I get for this forklift work light?
The available documents list 57C-FS-F48 among their models. Download FCC PDF (2026-02-02), CE-EMC PDF (2022-11-16) and RoHS PDF (2022-11-16), or view the certificate library. Contact DXZ for the latest documents for your model and destination market.
