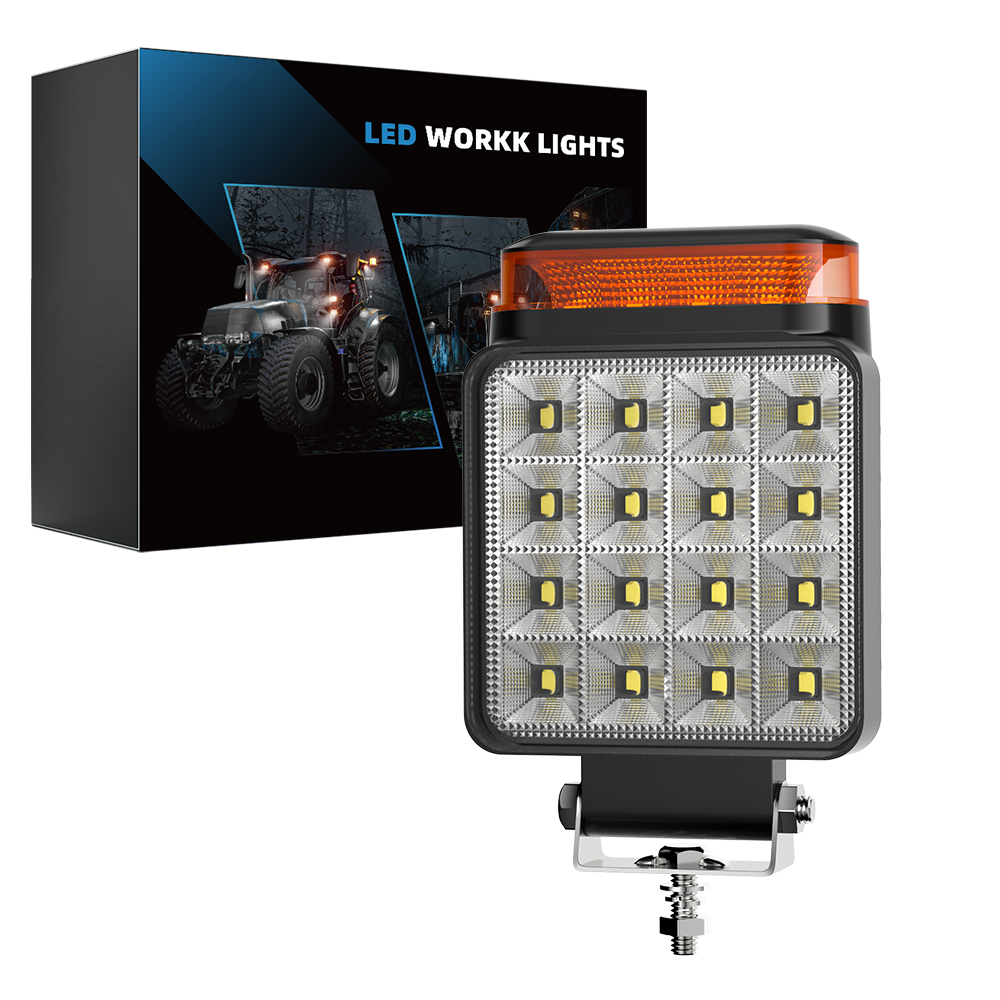

16-Cell Reflector Forklift Work Light with Amber Bar
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
Is H-37FS-16 the right square-reflector forklift work light for my installation?

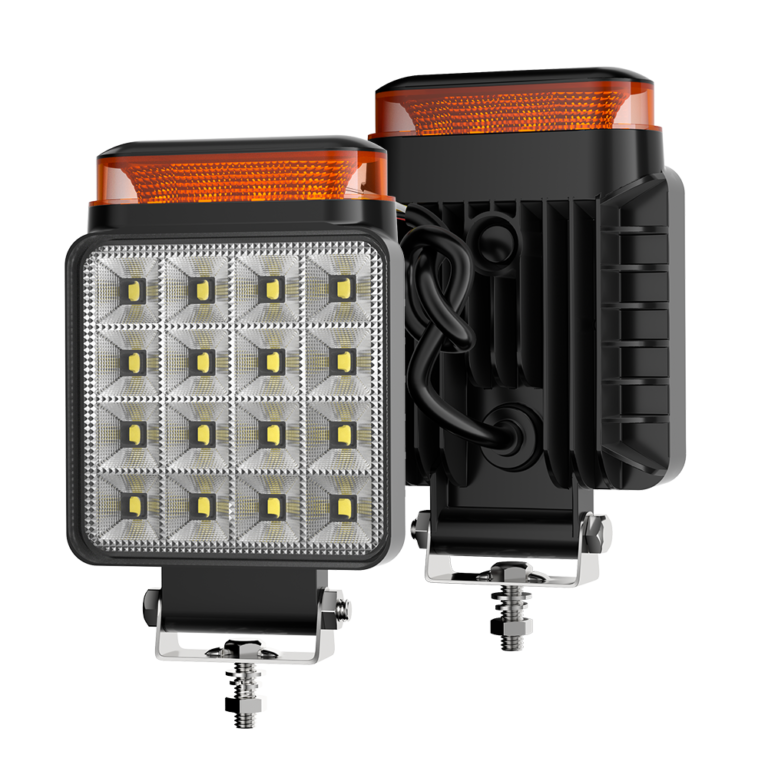

H-37FS-16 is a compact forklift flood work light with sixteen reflector cells in a four-by-four square grid. A separate amber bar runs across the top. Choose this face when your equipment design calls for square reflector cells; H-37FS-16F uses round optical cups in the same nominal size. The 4-inch format is a candidate for a square mounting position near the operator’s work area. Before ordering, send the mounting location and required aiming direction so we can review bracket clearance. Specify how you want to operate the amber secondary light in the truck’s wiring arrangement. Browse the DXZ forklift light range or ask us to review the configuration for your order.

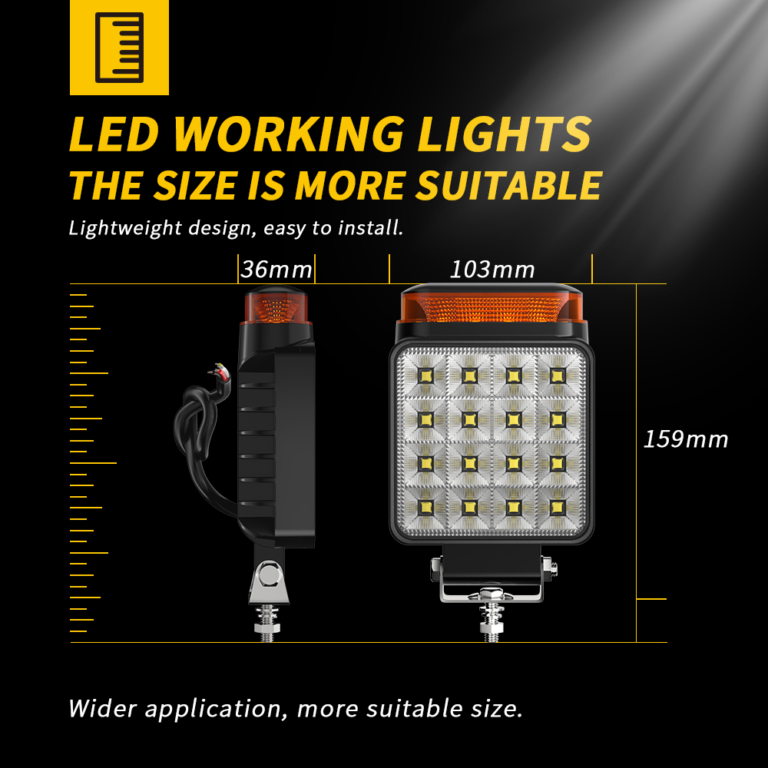

Nominal Size
4 in
Material
Aluminum + ABS
Input Voltage
9–36 V DC
Ingress Protection
IP68
LED Configuration
Main light — 16 × 1.5 W SMD 3030 LEDs; amber secondary light — 10 × 0.5 W SMD 3030 LEDs
Rated Power
17 W
Operating Current at 12 V
1.43 A
Theoretical Luminous Flux
2600 lm
Light Color
White + Amber
Beam Pattern
Flood
Cable Length
22 cm
Package Dimensions
168 × 120 × 60 mm
Gross Weight Per Set
590 g
How is this forklift work light tested before release?
Every DXZ forklift-light model goes through repeated laboratory testing before release. See the DXZ laboratory and test-method library when comparing suppliers. For H-37FS-16, send us your application and configuration so we can review the test information relevant to your order.
Which certificates can I get for this forklift work light?
The available documents list H-37FS-16 among their models. Download FCC PDF (2026-02-02), CE-EMC PDF (2022-11-16) and RoHS PDF (2022-11-16), or view the certificate library. Contact DXZ for the latest documents for your model and destination market.
