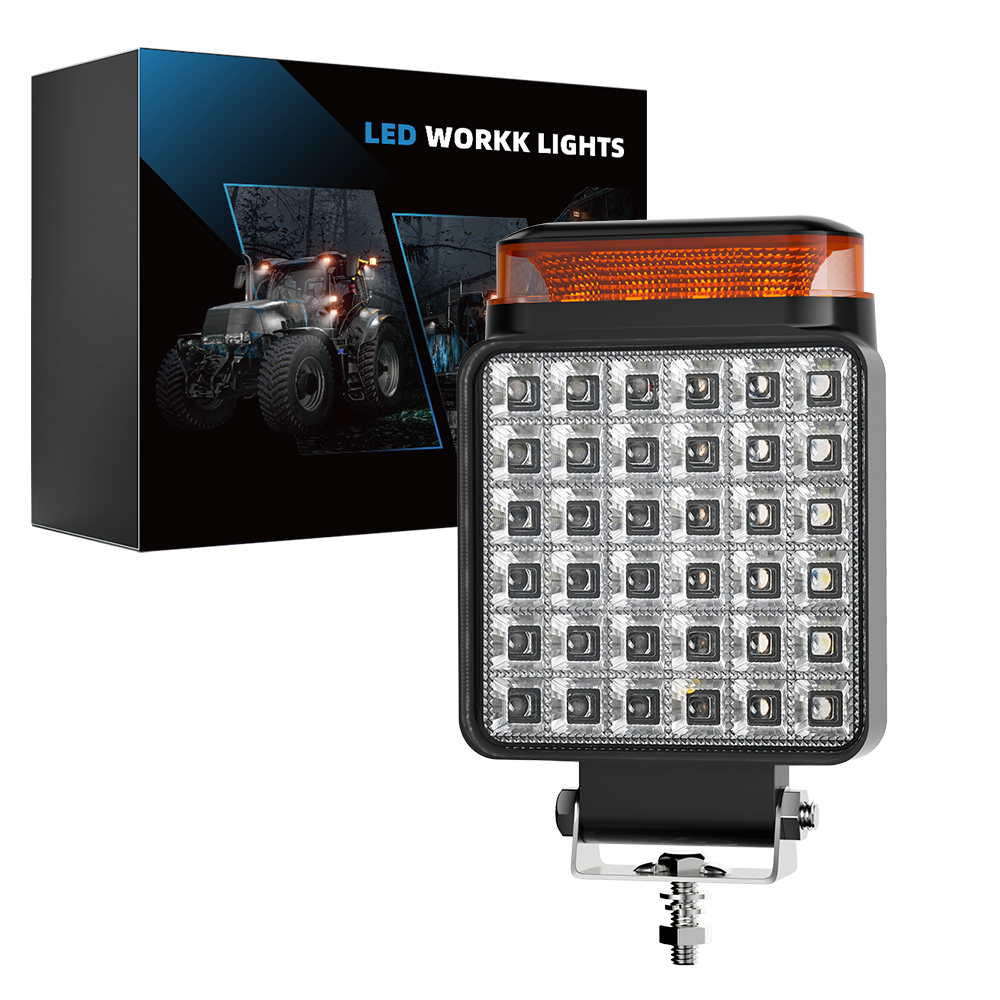

36-Cell Grid Forklift Work Light with Amber Bar
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
How does the 36-cell forklift work light fit my equipment design?

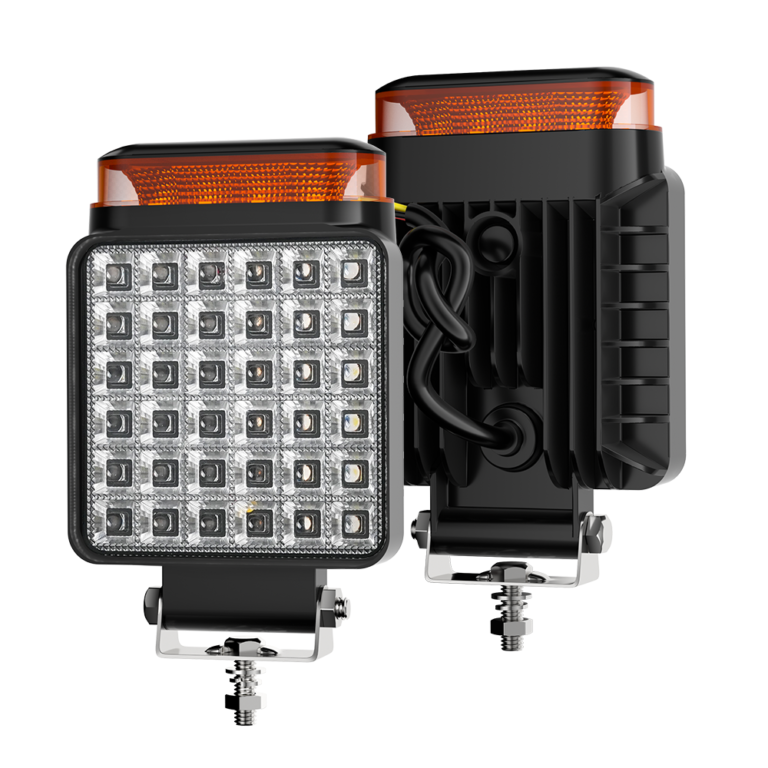

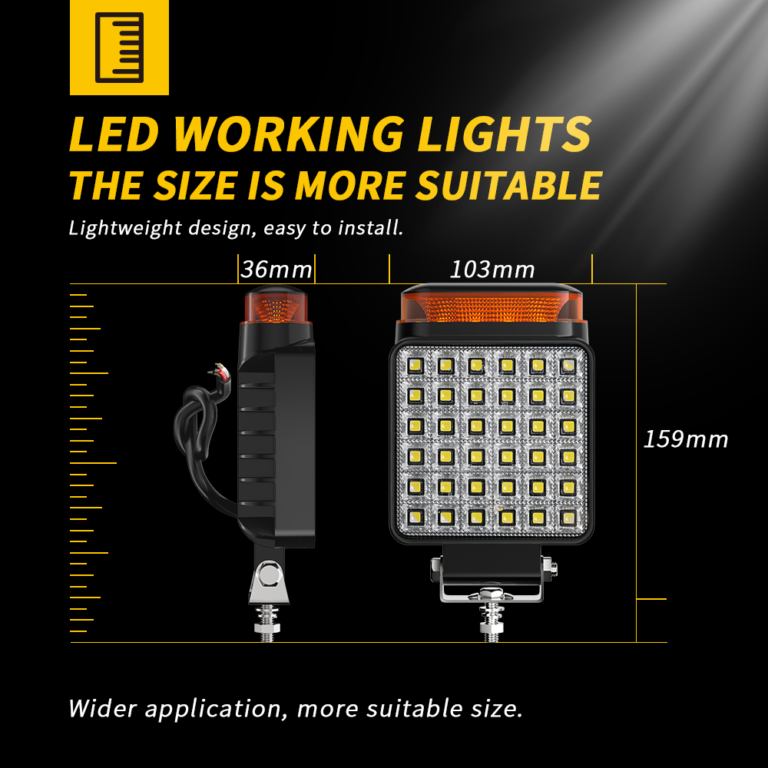

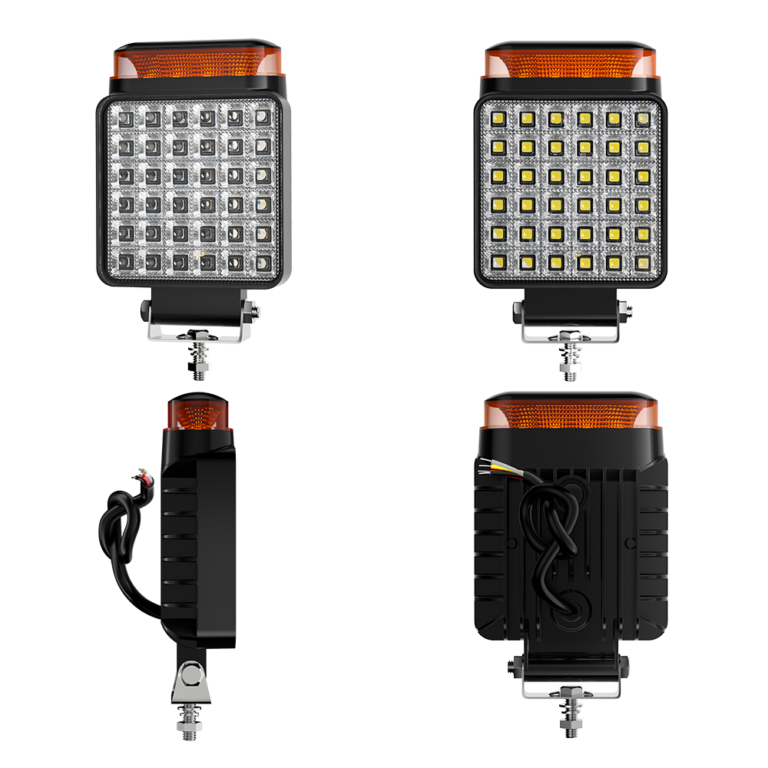

H-37FS-36 arranges thirty-six optical cells in a six-by-six grid below an amber bar. The 4-inch square body gives buyers a denser cell layout than H-37FS-16 while keeping the main lighting task the same: white flood illumination of nearby work areas. Use this model in your comparison when the equipment design favors a uniform multi-cell face. Check the mounting position against the dimension drawing and leave room for bracket adjustment and the cable exit. For procurement, compare the listed rated power and current as well as the optical layout. Browse the DXZ forklift light range or ask us to review the configuration for your order.
Nominal Size
4 in
Material
Aluminum + ABS
Input Voltage
9–36 V DC
Ingress Protection
IP68
LED Configuration
Main light — 36 × 1 W SMD 3030 LEDs; amber secondary light — 10 × 0.5 W SMD 3030 LEDs
Rated Power
15.8 W
Operating Current at 12 V
1.3 A
Theoretical Luminous Flux
4600 lm
Light Color
White + Amber
Beam Pattern
Flood
Cable Length
22 cm
Package Dimensions
168 × 120 × 60 mm
Gross Weight Per Set
570 g
How is this forklift work light tested before release?
Every DXZ forklift-light model goes through repeated laboratory testing before release. See the DXZ laboratory and test-method library when comparing suppliers. For H-37FS-36, send us your application and configuration so we can review the test information relevant to your order.
Which certificates can I get for this forklift work light?
The available documents list H-37FS-36 among their models. Download FCC PDF (2026-02-02), CE-EMC PDF (2022-11-16) and RoHS PDF (2022-11-16), or view the certificate library. Contact DXZ for the latest documents for your model and destination market.
