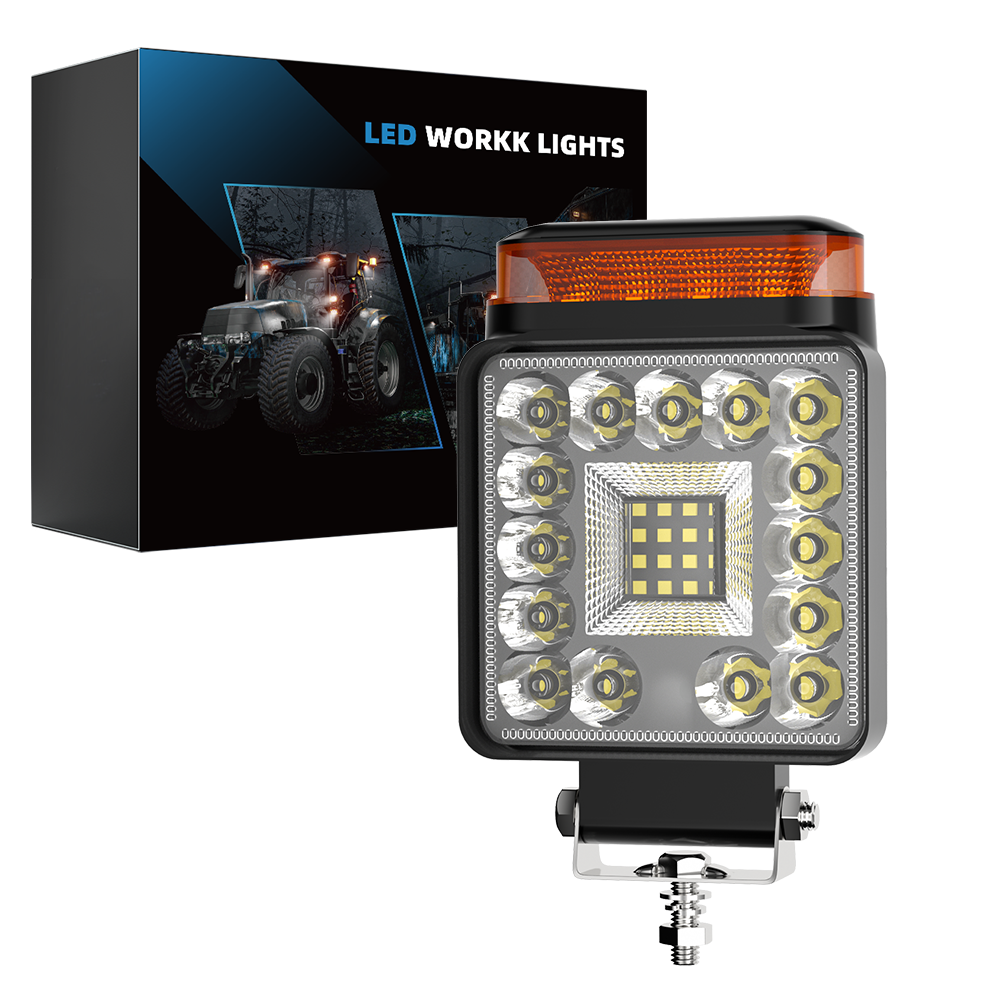

Perimeter-Matrix Forklift Work Light with Amber Bar
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
Which forklift work light combines a center matrix with perimeter optics?

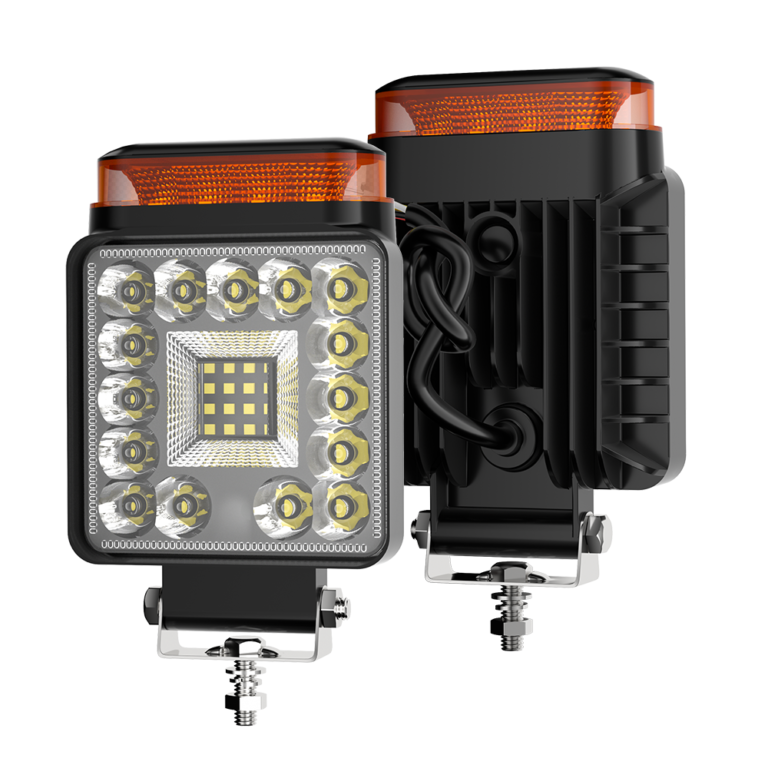

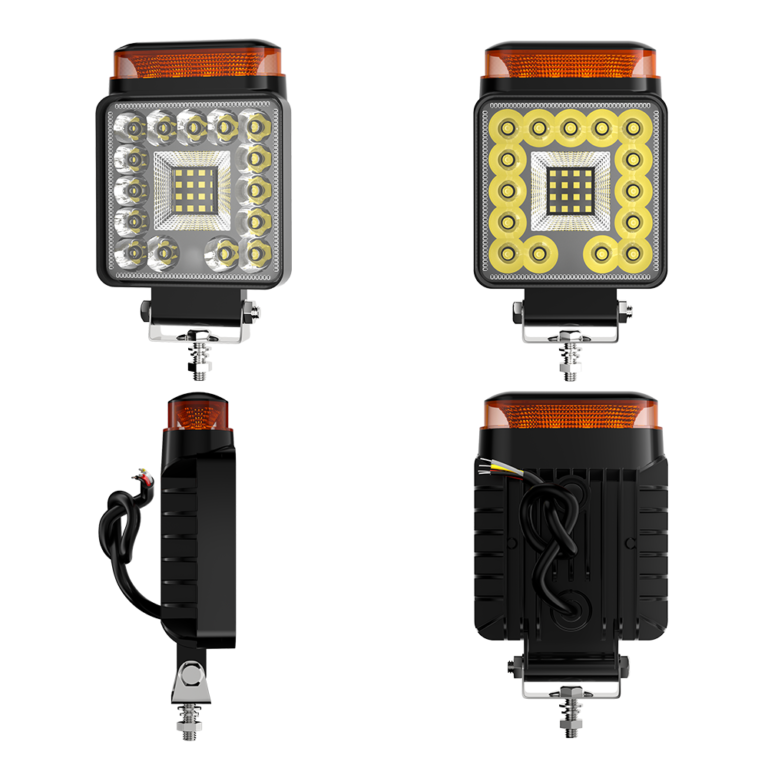

The Perimeter-Matrix Forklift Work Light with Amber Bar combines a central LED matrix with round optics around the edge. H-37FS-31 puts this mixed optical layout in a 4-inch square housing, below a separate amber bar. The white main light uses a flood beam. Compare this center-and-perimeter face with the uniform grids and panel versions in the H-37FS range. For installation, check the bracket sweep and the direction of the operator’s work surface. Send a mounting photo and the accessory supply voltage if you need help selecting the configuration. Browse the DXZ forklift light range or ask us to review the configuration for your order.

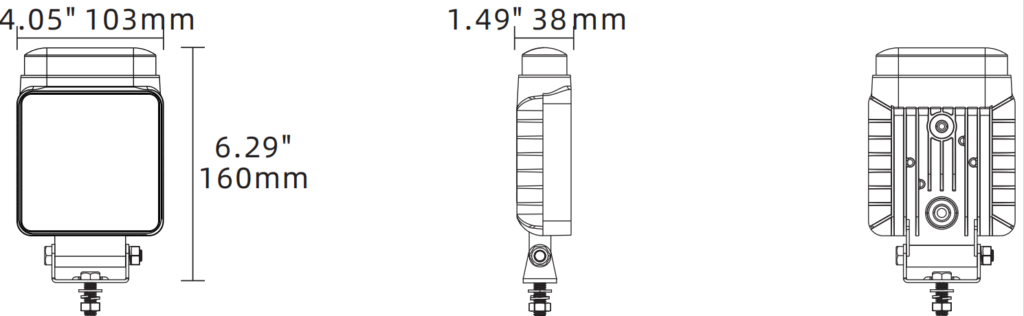

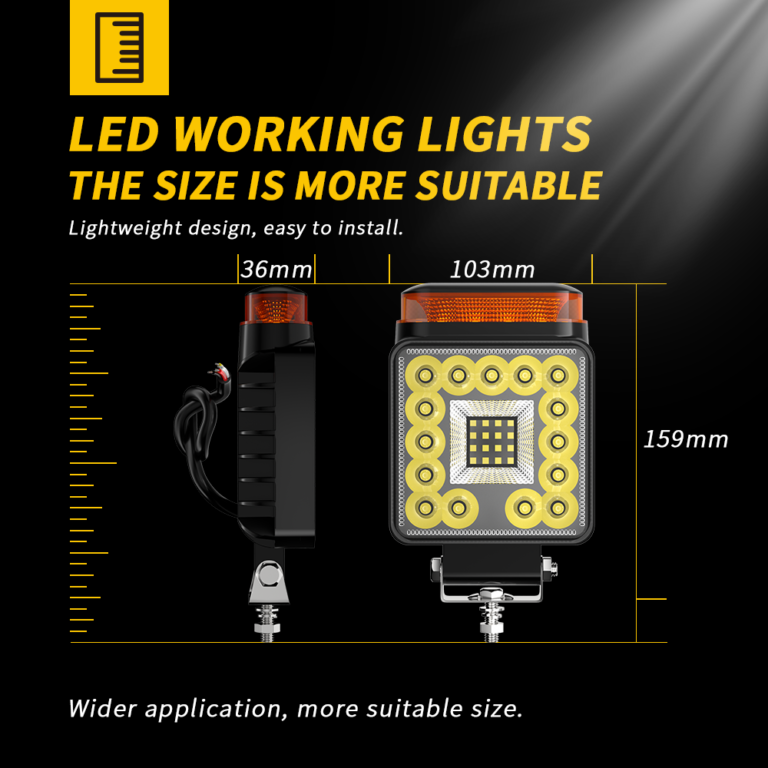

Nominal Size
4 in
Material
Aluminum + ABS
Input Voltage
9–36 V DC
Ingress Protection
IP68
LED Configuration
Main light — 31 × 1 W SMD 3030 LEDs; amber secondary light — 10 × 0.5 W SMD 3030 LEDs
Rated Power
17.8 W
Operating Current at 12 V
1.48 A
Theoretical Luminous Flux
4100 lm
Light Color
White + Amber
Beam Pattern
Flood
Cable Length
22 cm
Package Dimensions
168 × 120 × 60 mm
Gross Weight Per Set
570 g
How is this forklift work light tested before release?
Every DXZ forklift-light model goes through repeated laboratory testing before release. See the DXZ laboratory and test-method library when comparing suppliers. For H-37FS-31, send us your application and configuration so we can review the test information relevant to your order.
Which certificates can I get for this forklift work light?
The available documents list H-37FS-31 among their models. Download FCC PDF (2026-02-02), CE-EMC PDF (2022-11-16) and RoHS PDF (2022-11-16), or view the certificate library. Contact DXZ for the latest documents for your model and destination market.
