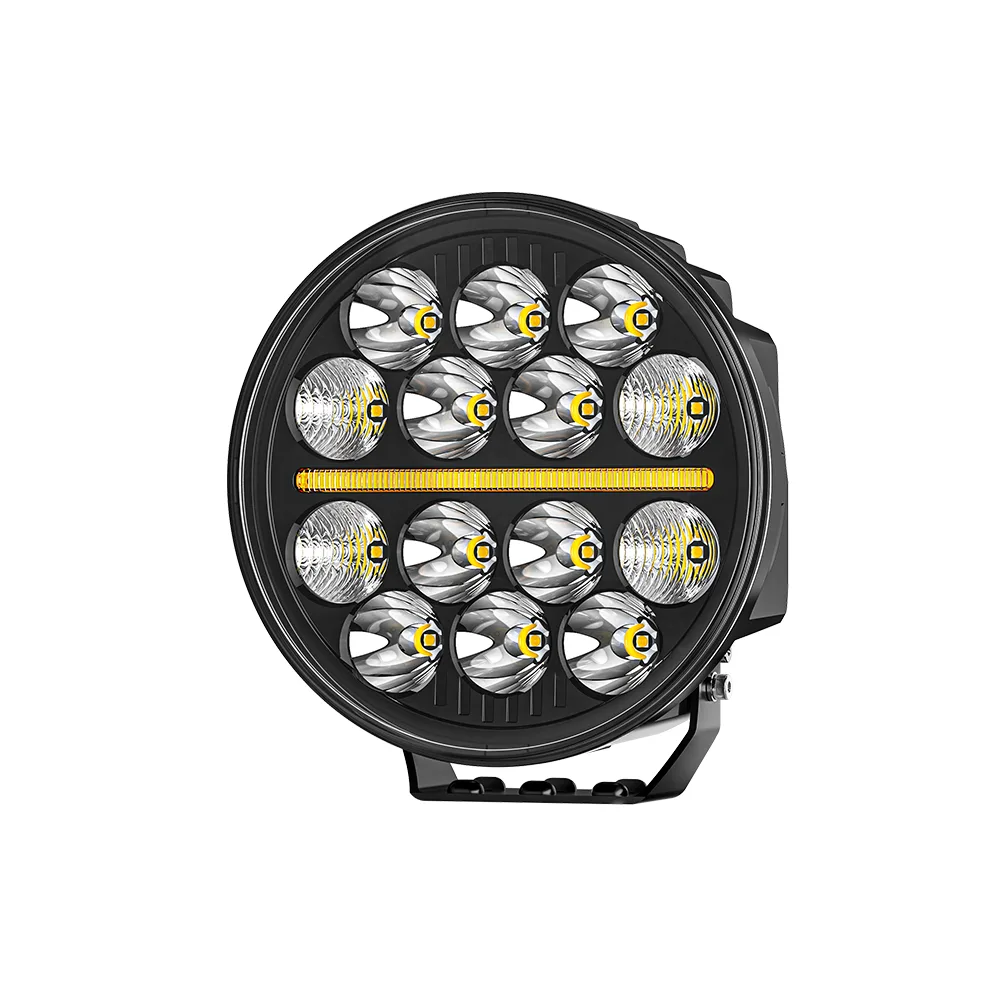

7-Inch Round Dual-Row LED Driving Light with DRL

COLOR : White+Yellow

SKU: 7R01

Contact for Price
In stock
7-Inch Round Dual-Row LED Driving Light with DRL

7-Inch Round Dual-Row LED Driving Light with DRL

SKU: 7R01

Share this:

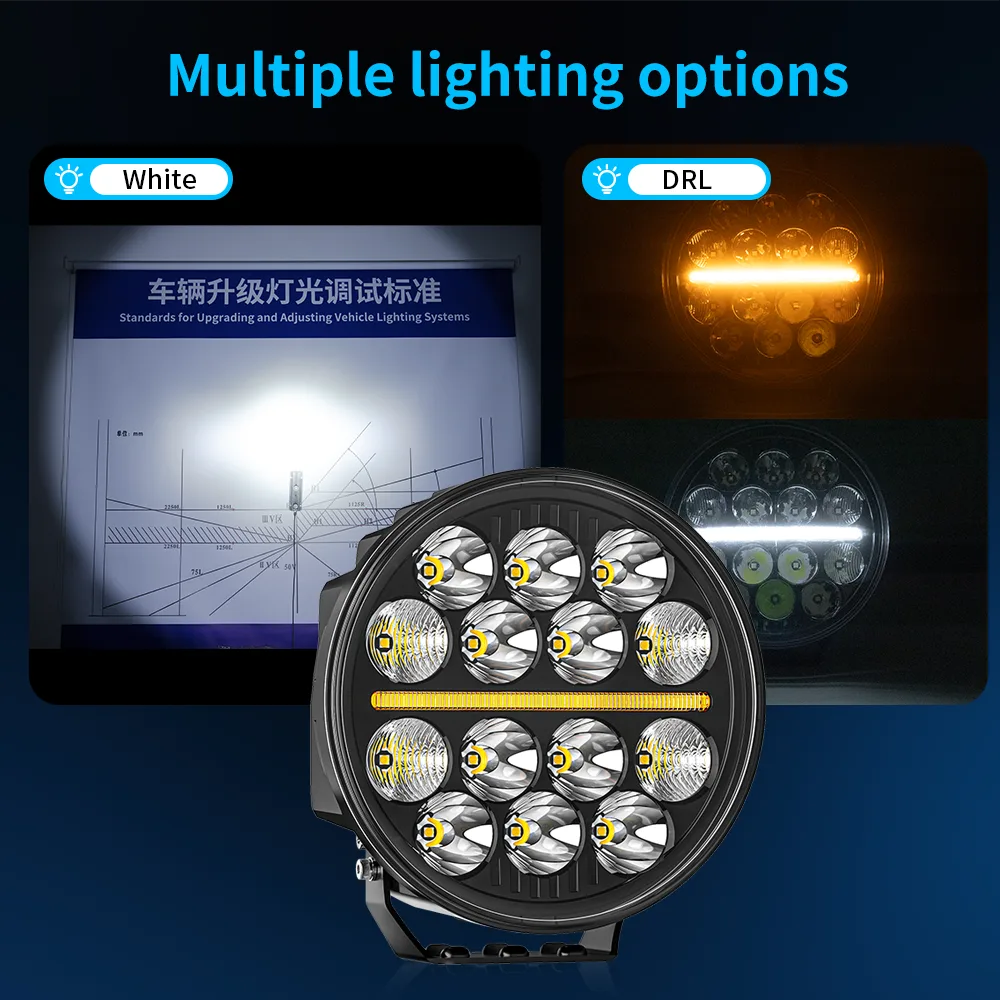

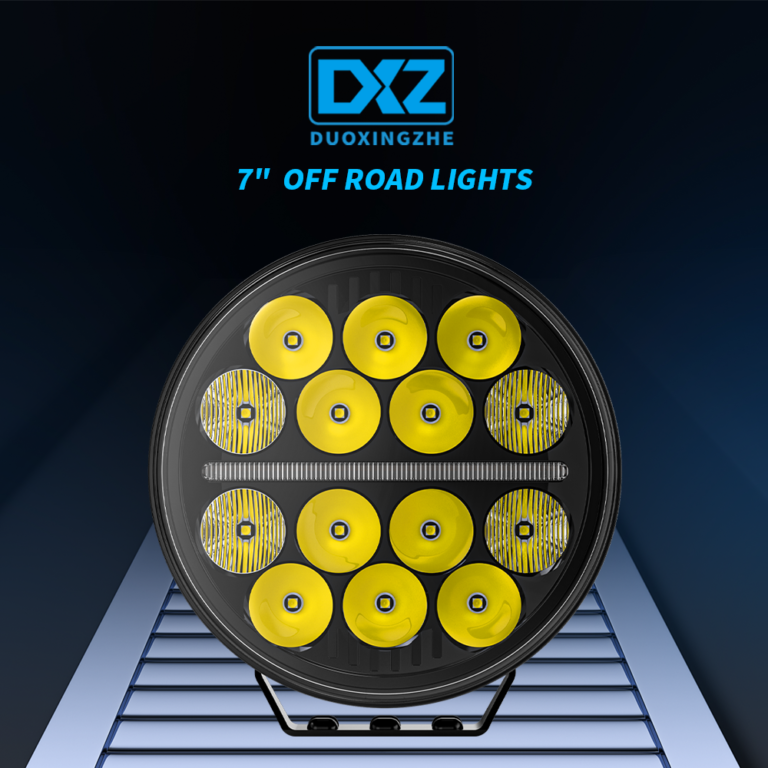

The 7-Inch Round Dual-Row LED Driving Light with DRL is a round auxiliary driving lamp for supplemental forward illumination. Its two horizontal optic rows and a central secondary-light strip create the real configuration difference from nearby 7-inch choices. The Spot+DRL layout combines the main driving-light task with a distinct secondary-light arrangement.

Choose this configuration when the 7-inch mounting envelope and dual-row optic face match the vehicle package, and when its 61W load suits the project’s electrical budget. Compare the installed beam distribution, mounting position, wiring and secondary-light control before final selection. Market-specific approval evidence must also match the intended use; housing size and a commercial beam label alone do not establish road-use suitability.

Voltage 12-30V
Rated Power 61W
Current 5.1A
LED Configuration MAIN LGHT:14×W (CSP/3535) DRL:40×W (SMD/3030)

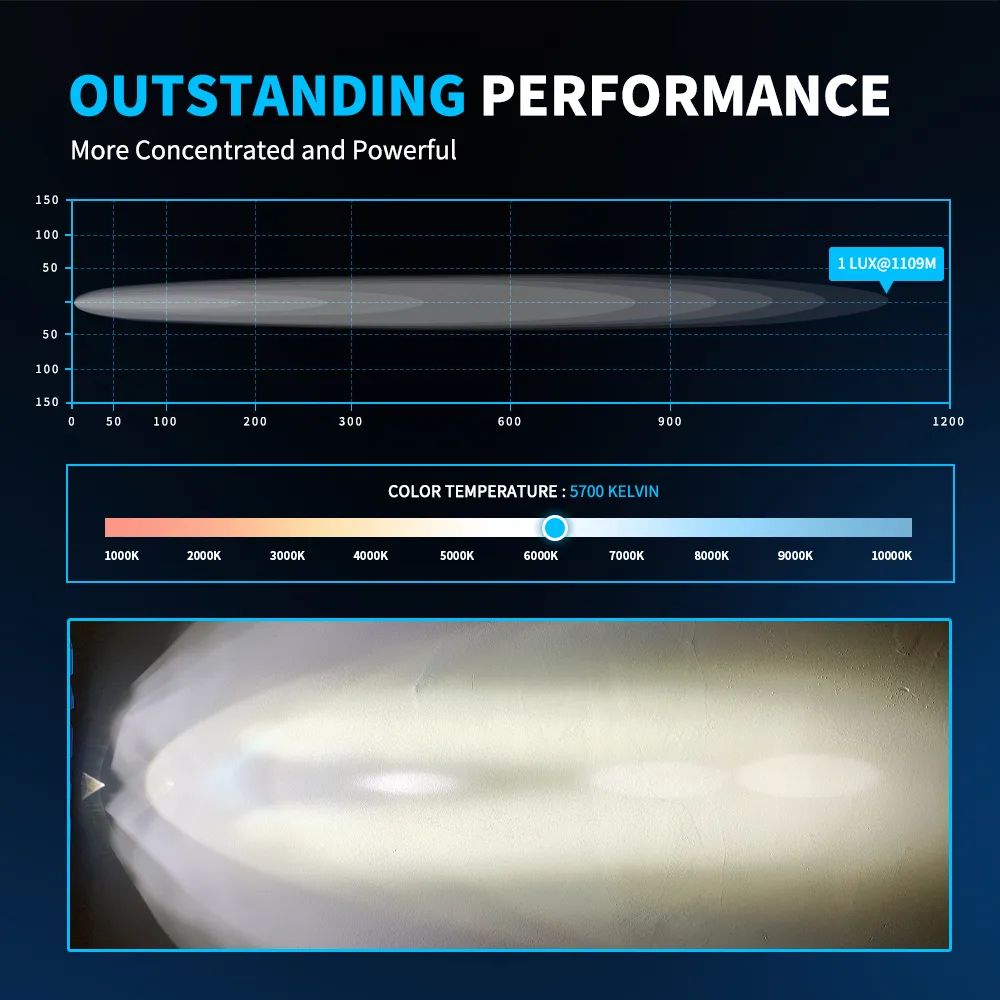

Beam Pattern Spot+DRL
Light Color White+Yellow
Theoretical Lumens 14000LM
Listed Luminous Flux 3335LM

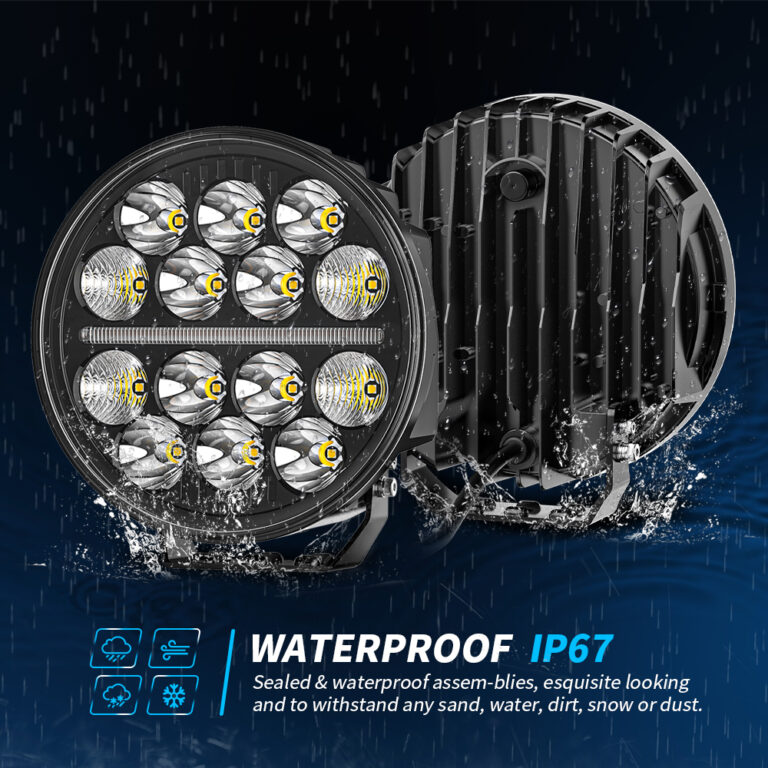

IP Rating IP68/IP69K
Cable Length 60cm
Housing Shape Round

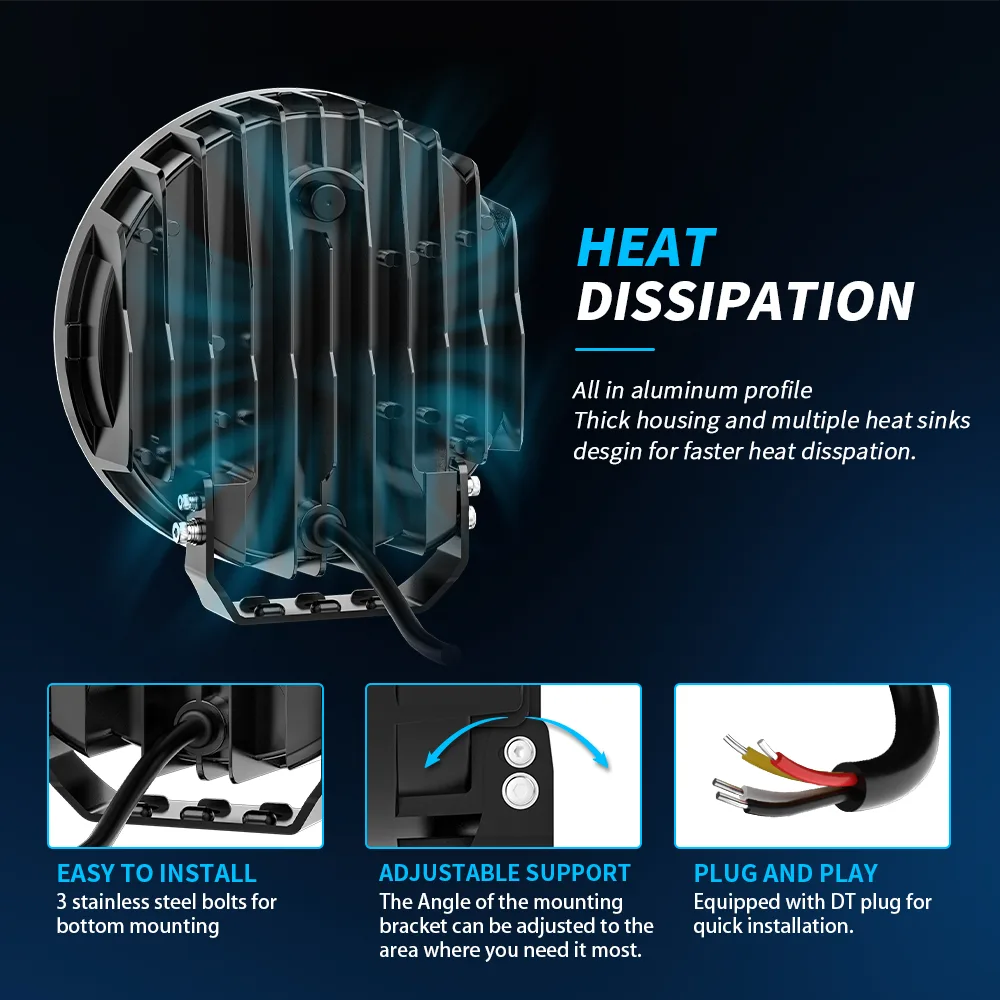

Mounting Type Bracket-mounted
Housing Material Aluminum
Nominal Size 7-Inch
Package Size 270×225×105mm
Gross Weight per Set 1700g
Quantity per Carton 5

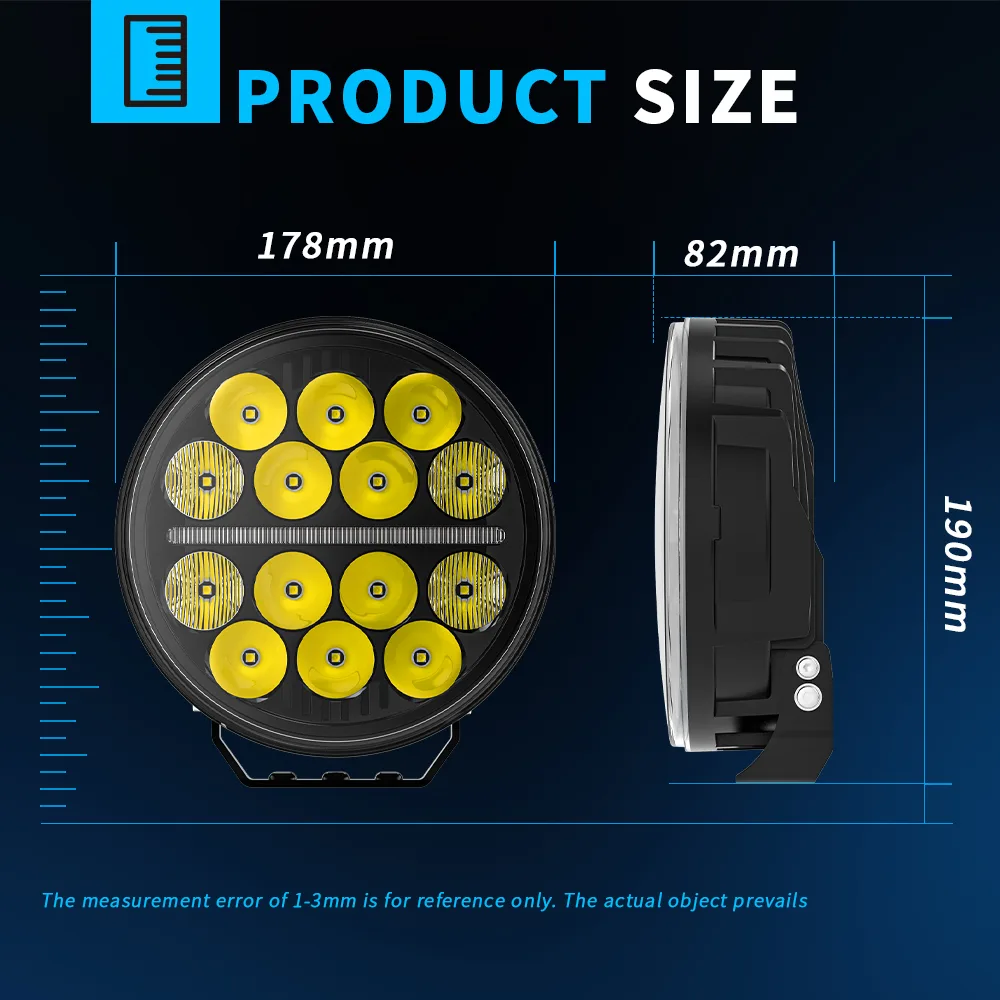

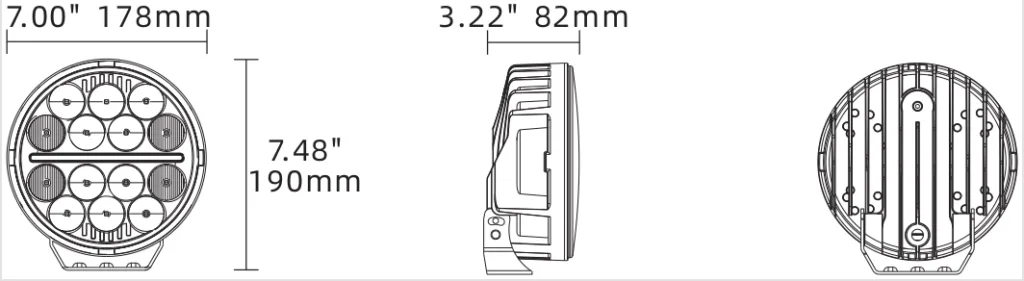

Dimensions
Dimensions

7R01´LED Driving Lights
