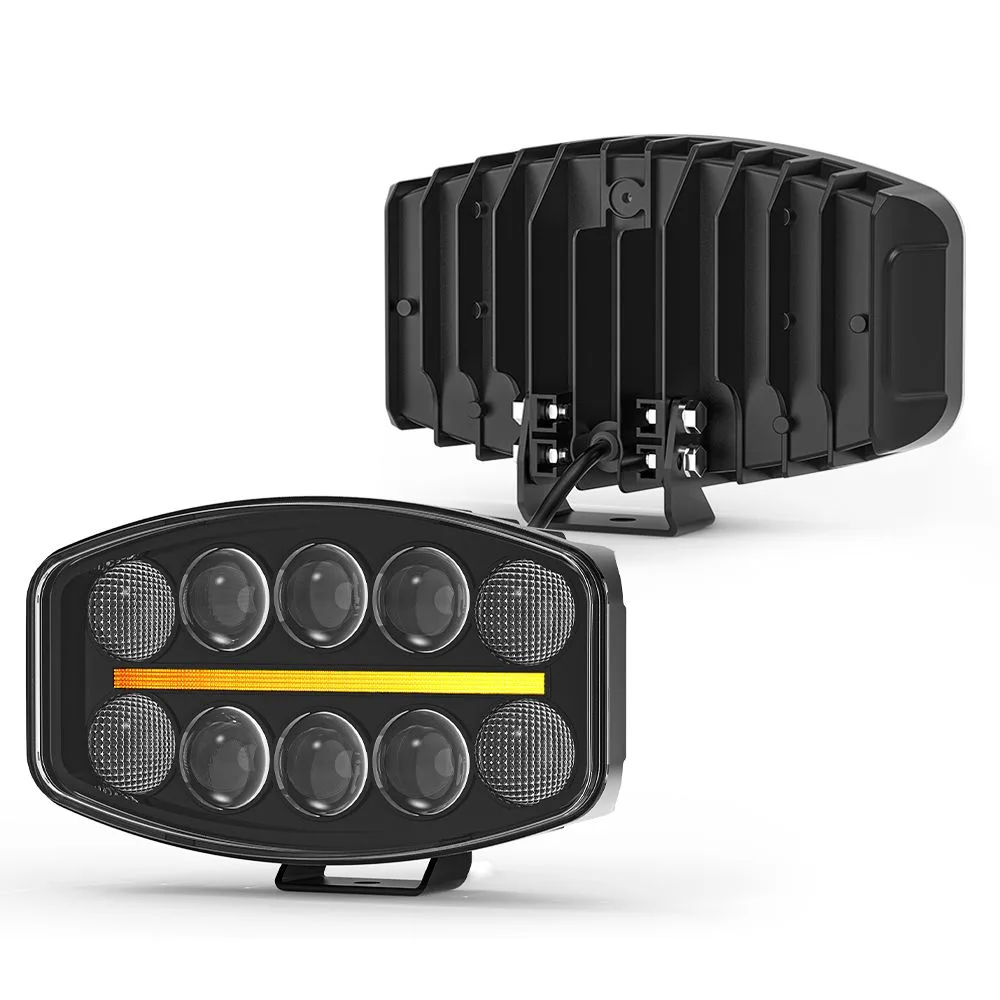

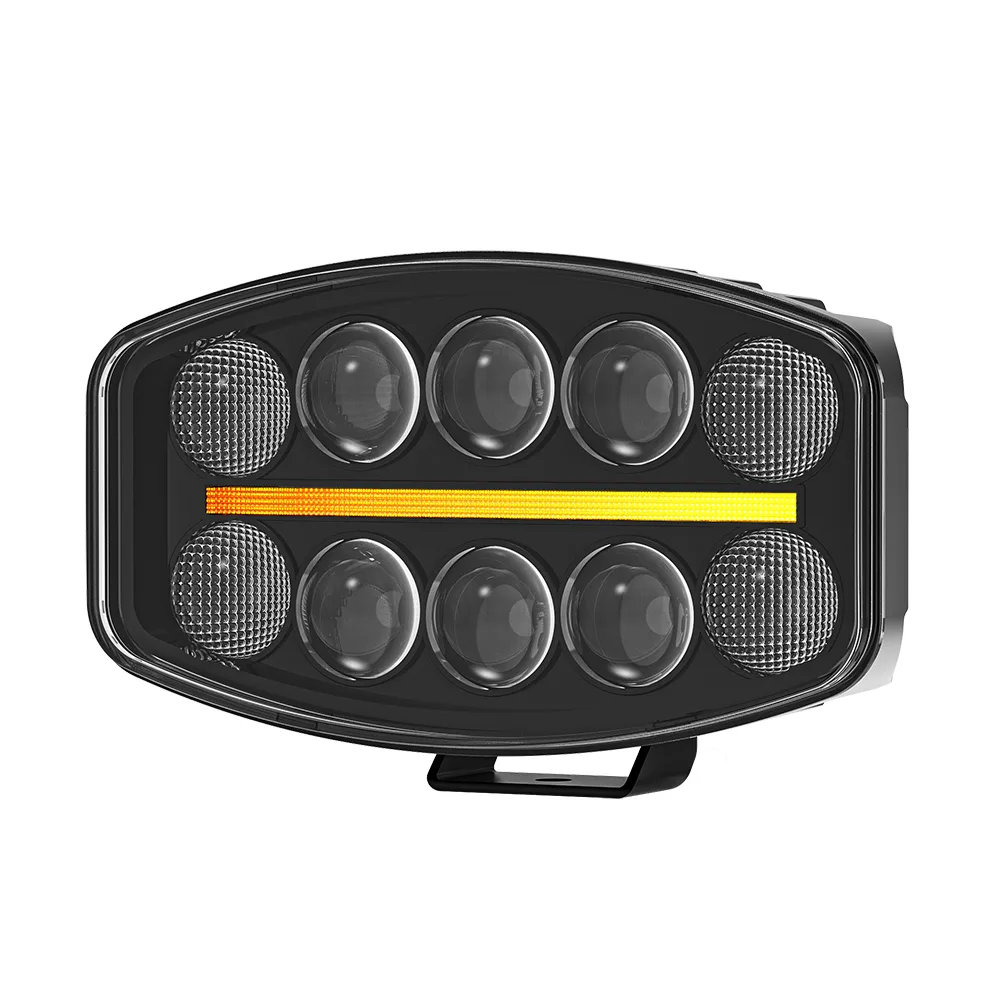

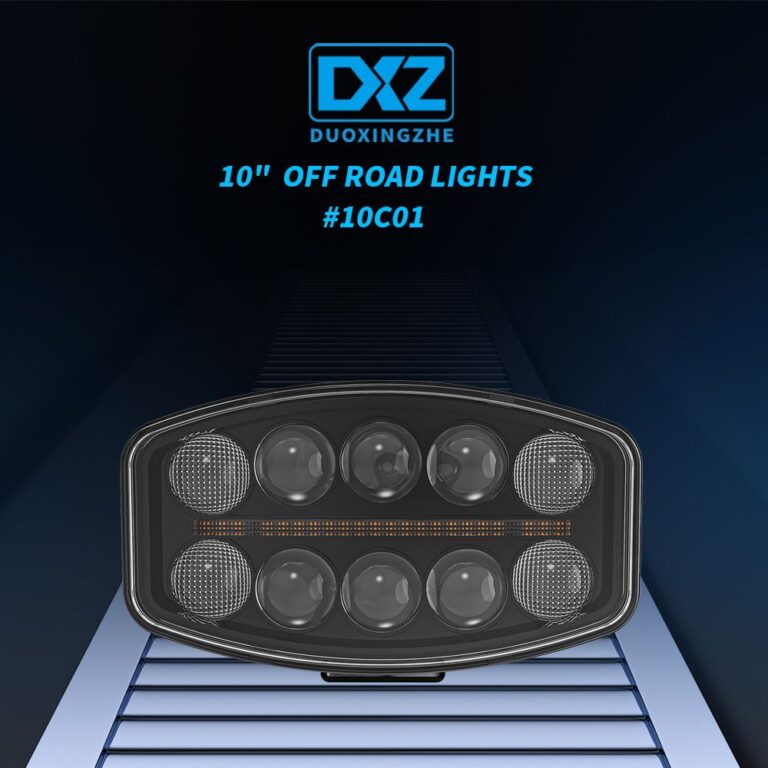

The 10-Inch Two-Row LED Driving Light with DRL is a rectangular auxiliary driving lamp for supplemental forward illumination. Its two rows of round optics and a central secondary-light strip create the real configuration difference from nearby 10-inch choices. The Spot+DRL layout combines the main driving-light task with a distinct secondary-light arrangement.

Choose this configuration when the 10-inch mounting envelope and two-row optic face match the vehicle package, and when its 44.6W load suits the project’s electrical budget. Compare the installed beam distribution, mounting position, wiring and secondary-light control before final selection. Market-specific approval evidence must also match the intended use; housing size and a commercial beam label alone do not establish road-use suitability.

Voltage 12-30V
Rated Power 44.6W
Current 3.7A
LED Configuration MAIN LGHT:10×W (CSP/3535) DRL:22×W (SMD/3030)

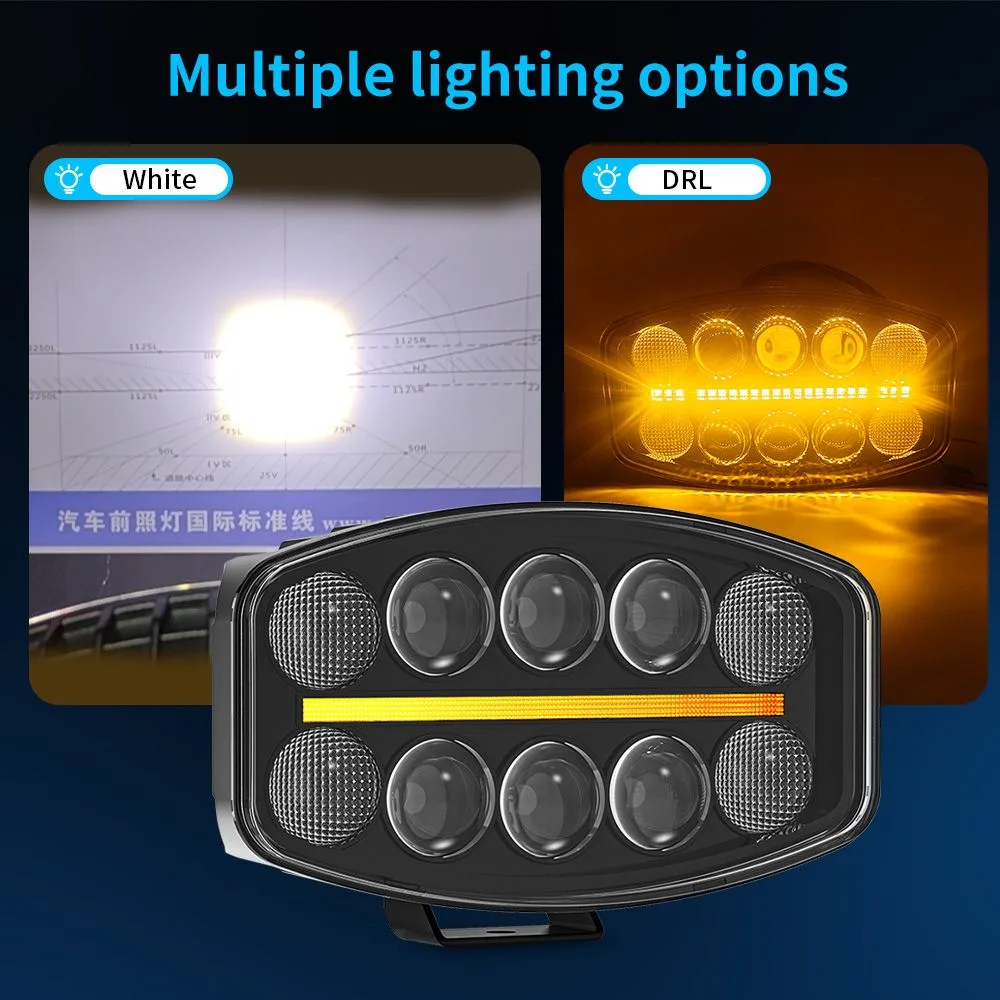

Beam Pattern Spot+DRL
Light Color White+Yellow
Theoretical Lumens 10000LM
Listed Luminous Flux 1097LM

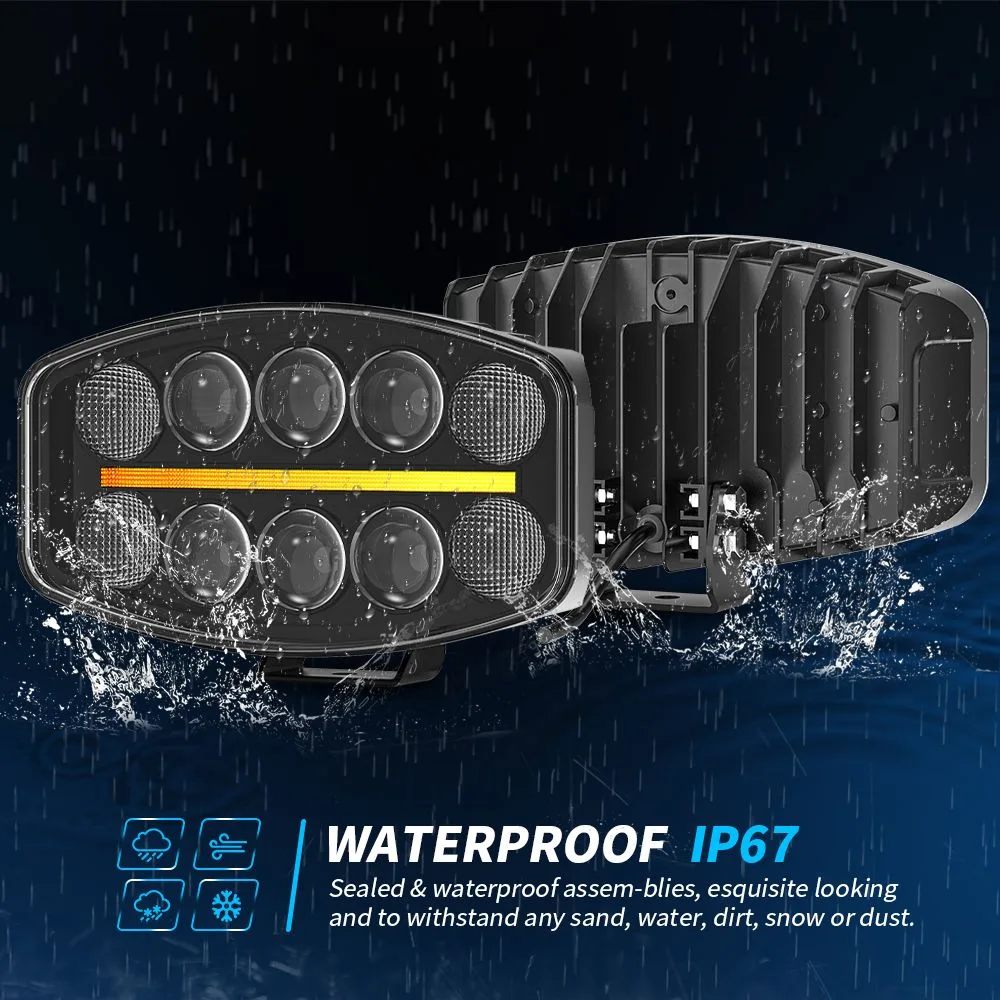

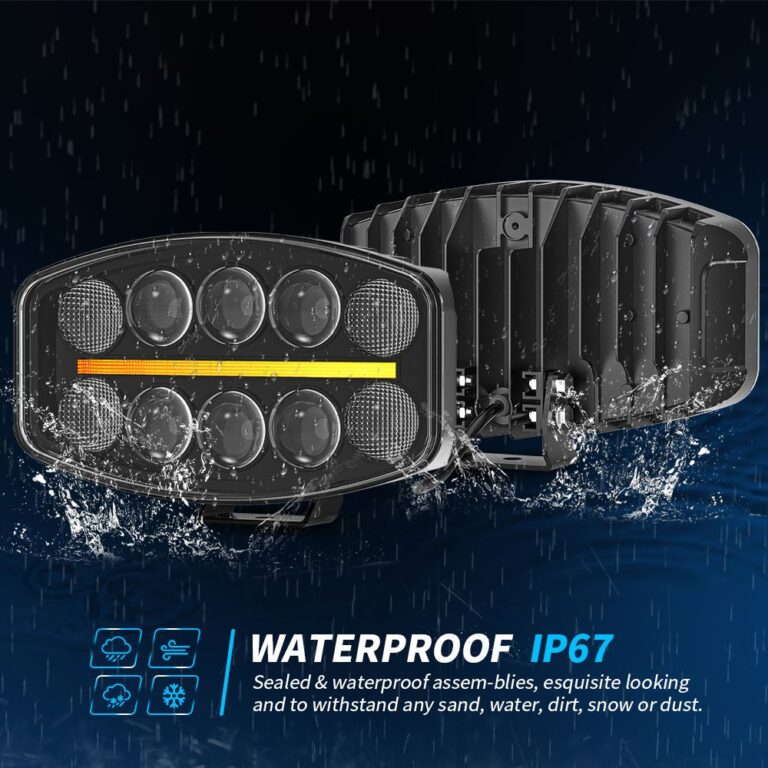

IP Rating IP68/IP69K
Cable Length 45cm
Housing Shape Rectangular
Mounting Type Bracket-mounted

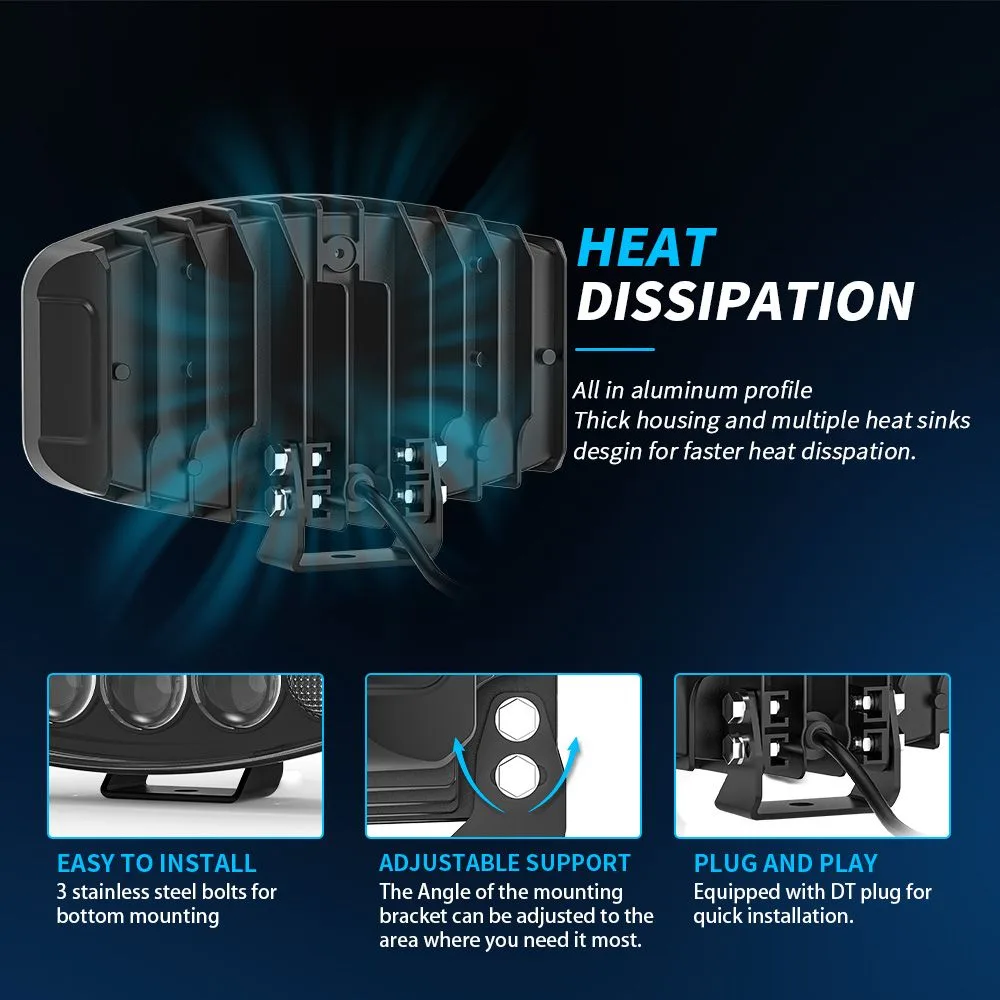

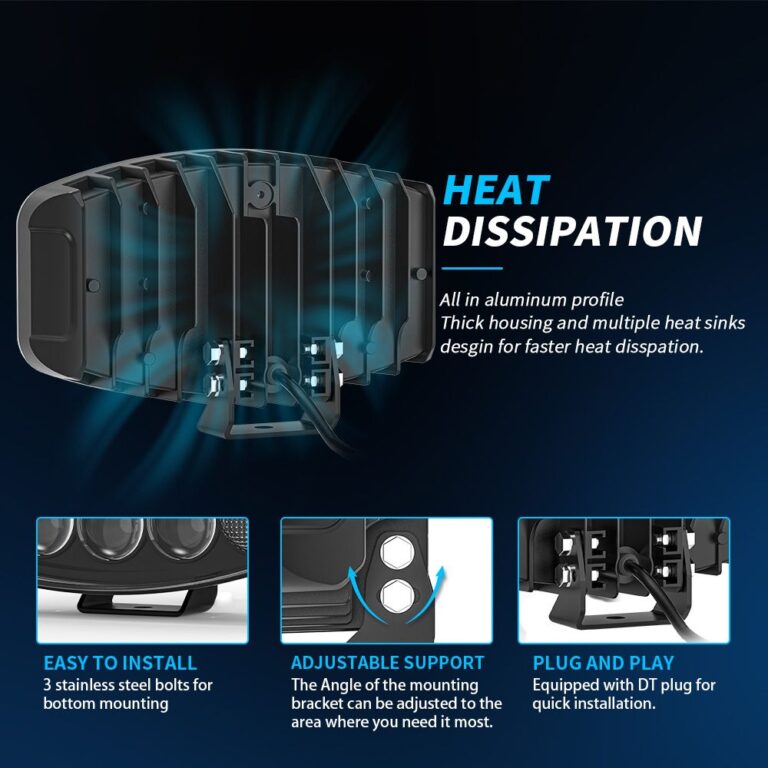

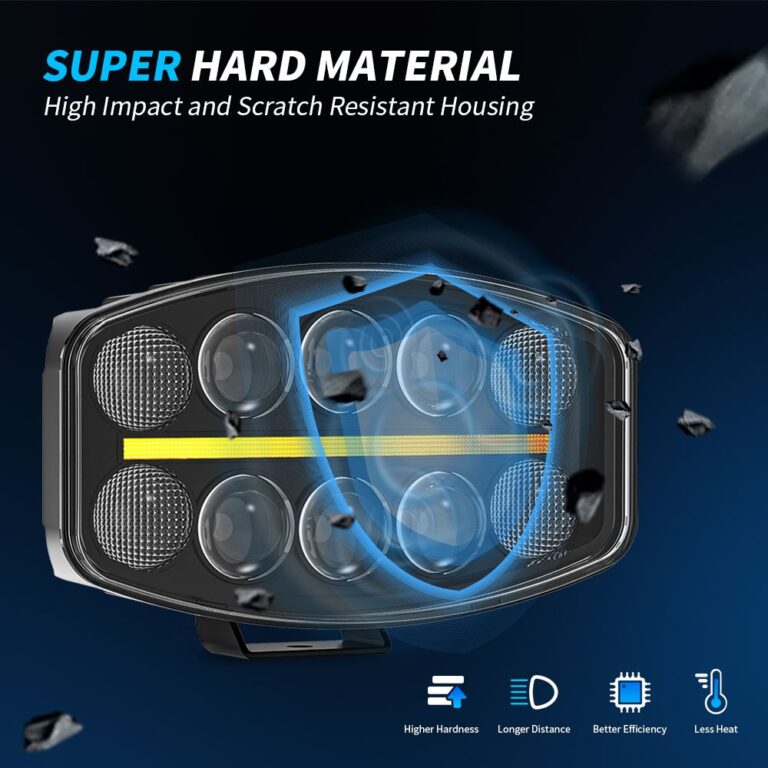

Housing Material Aluminum
Nominal Size 10-Inch
Package Size 280×195×120mm
Gross Weight per Set 1718g
Quantity per Carton 10

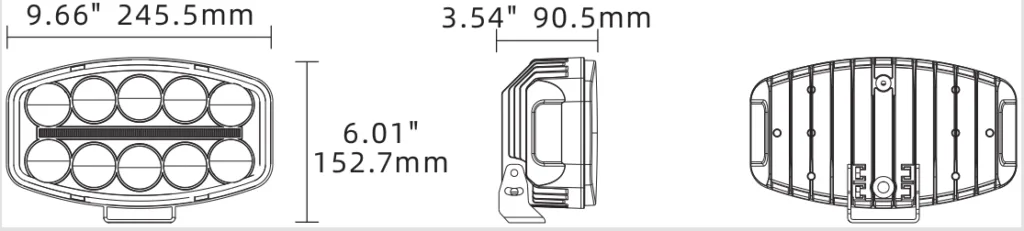

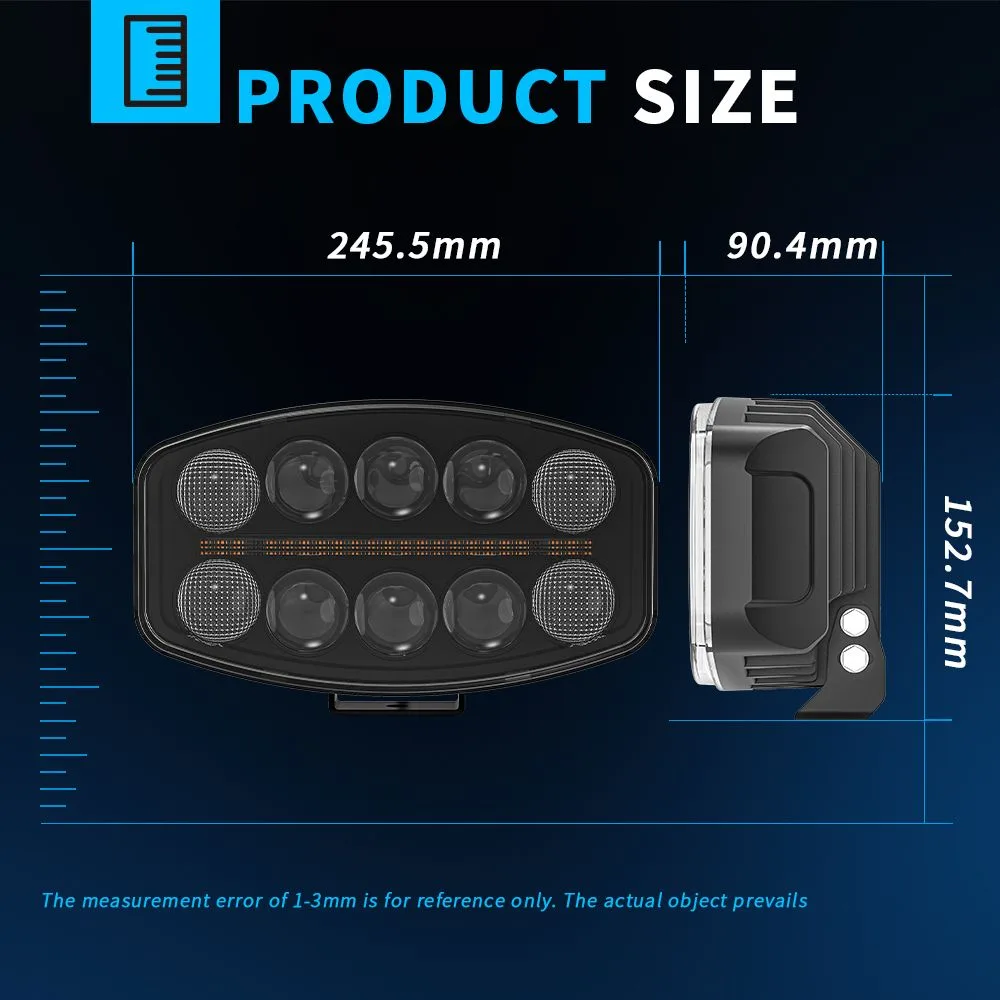

Dimensions
Dimensions

10C01´LED Driving Lights
