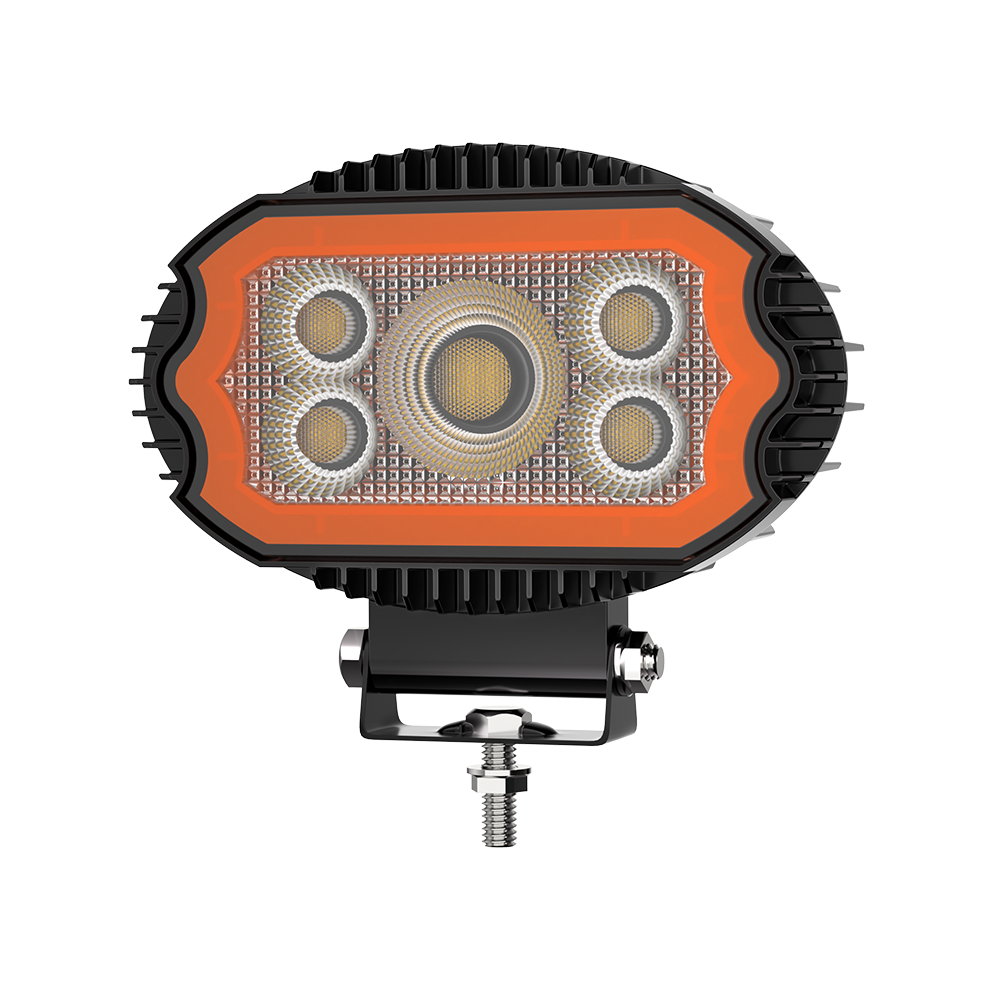

6-Optic Side-Bar Amber-DRL Spot LED Work Light

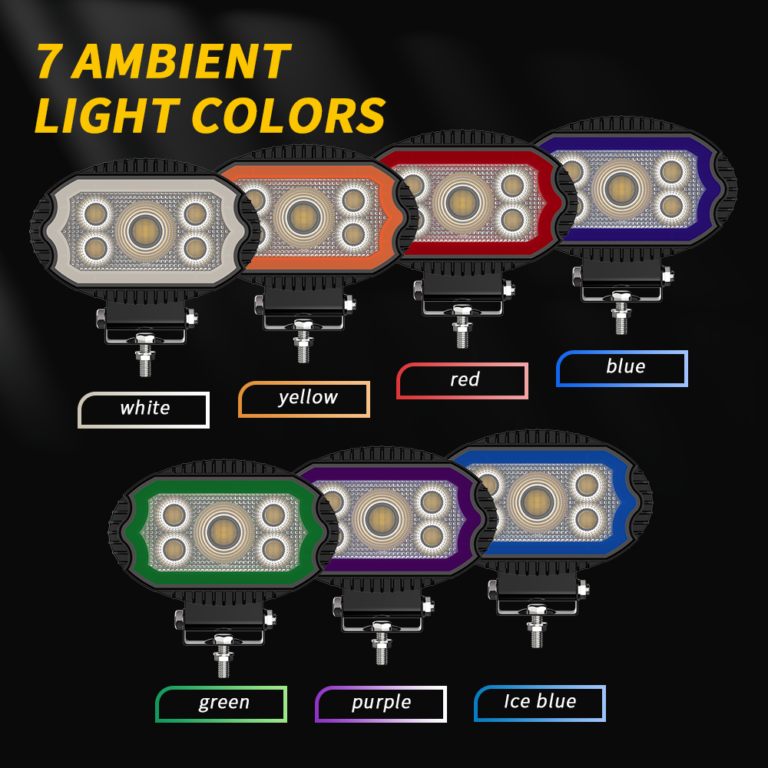

white/yellow/red/blue/green/purple/ice blue

In stock

55C-SQ-T2

Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support Sea · Air · Land Freight
Technical & After-Sales Support

Product details

The 6-Optic Side-Bar Amber-DRL Spot LED Work Light packages six round optics with side amber bars into a rectangular bracket-mounted work lamp. Its catalog-listed flood pattern is positioned for task illumination with a separately visible accent or secondary-light element. The housing and face design make the model easy to assess against nearby structures, brackets and operator sight lines.

The choice becomes clearer when the visible amber or dual-color element is required alongside the main work-light face, while the rectangular bracket-mounted housing and six round optics with side amber bars match the available mounting position. It is relevant to custom equipment builds and upfits that call for a verified white/amber configuration. The model should be integrated only after checking voltage, space, orientation and the visual task from the operator’s position.

Material Aluminum
Input Voltage 9-36V

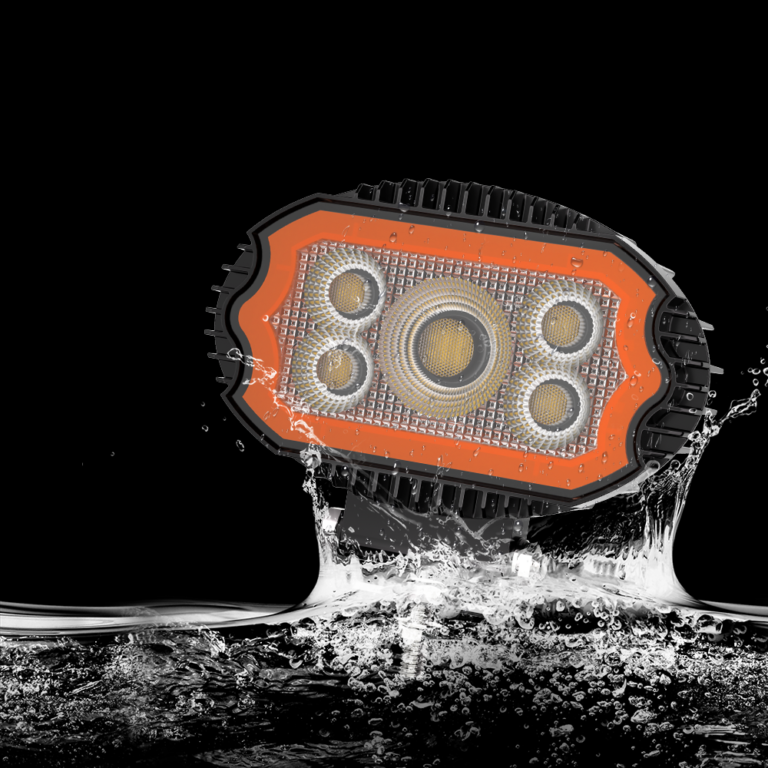

Ingress Protection IP68/IP69K
LED Configuration Main light — 25 × 1 W (SMD 3030) DRL — 22 × 0.5 W (SMD 3030)
Rated Power 16W
Operating Current 1.3A
Theoretical Luminous Flux 9600LM
Light Color White+Amber
Beam Pattern Flood
Cable 26cm
Certificate Listing CE /ECE R10
Package Dimensions 130 × 130 × 65 mm
Gross Weight Per Set 380g

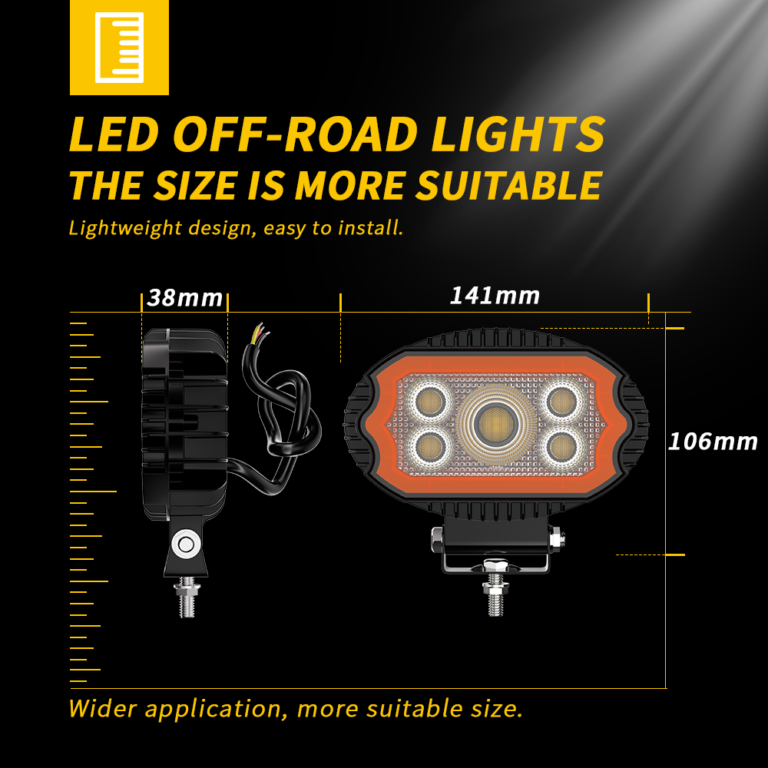

Dimensions
