4-Inch Nine-Lens Off-Road Spot Light Kit
SKU: BF4-9
✓
4-Inch Nine-Lens Off-Road Spot Light Kit
SET+ Wire harness
SKU: BF4-9
Contact for Price
In stock
This 4-inch nine-lens off-road spot light kit combines a pair of compact square auxiliary lamps with a yellow cross-shaped DRL and a supplied wiring harness. The nine-optic main-light layout provides a distinct BF4 configuration for buyers comparing compact spot-beam auxiliary lighting against nearby ten-lens and fourteen-lens variants.
Confirmed catalog data includes 9–36V DC input, 32.5W rated power at 12V, 2.7A current draw, IP68/IP69K protection and a 3 m cable. The lamp uses nine 5W CSP3535 main LEDs with eleven 0.5W SMD3030 DRL LEDs, with 2600 lm theoretical output, 2875 lm measured luminous flux and a 1 lux test point at 372 m. The aluminum housing measures 109 × 120 × 68 mm with a side-supported U-shaped bracket, giving distributors and project buyers clear optical, electrical, mounting and kit-configuration data for comparison.
Voltage
9-36V DC
Rated Power
32.5W @ 12V
Current
2.7A @ 12V
LED Configuration
Main 9 × 5W CSP3535 + DRL 11 × 0.5W SMD3030
Beam Pattern
Spot
Light Color
White + Yellow
Theoretical Lumens
2600 lm
Measured Luminous Flux
2875 lm
Illuminance Test Point
1 lux @ 372 m
IP Rating
IP68/IP69K
Operating Temperature
-40°C to 85°C
Cable Length
3 m
Certification
CE / ECE R10
Housing Material
Aluminum
Product Form
4-inch square LED pod pair

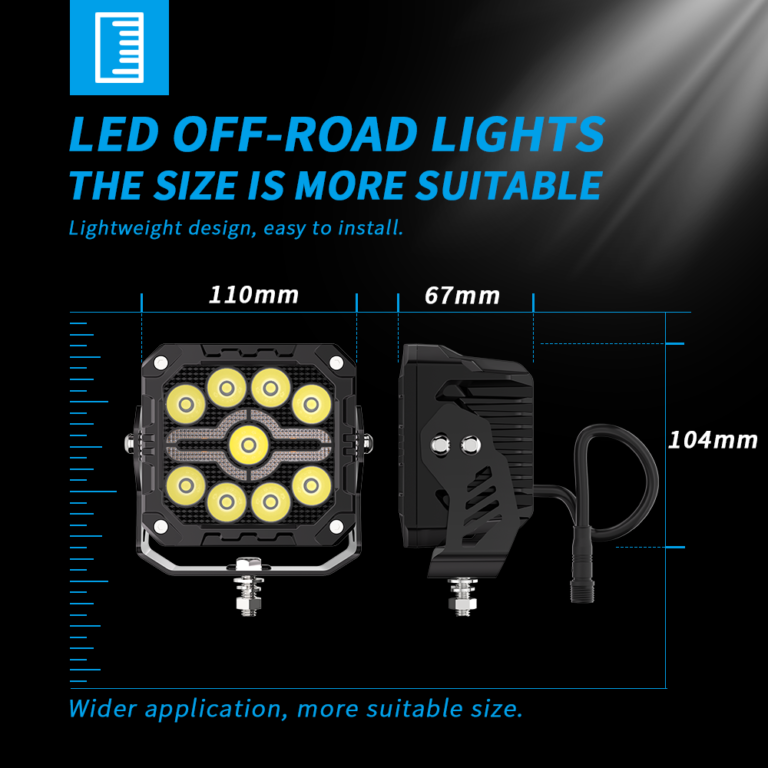

Lamp Dimensions
109 × 120 × 68 mm

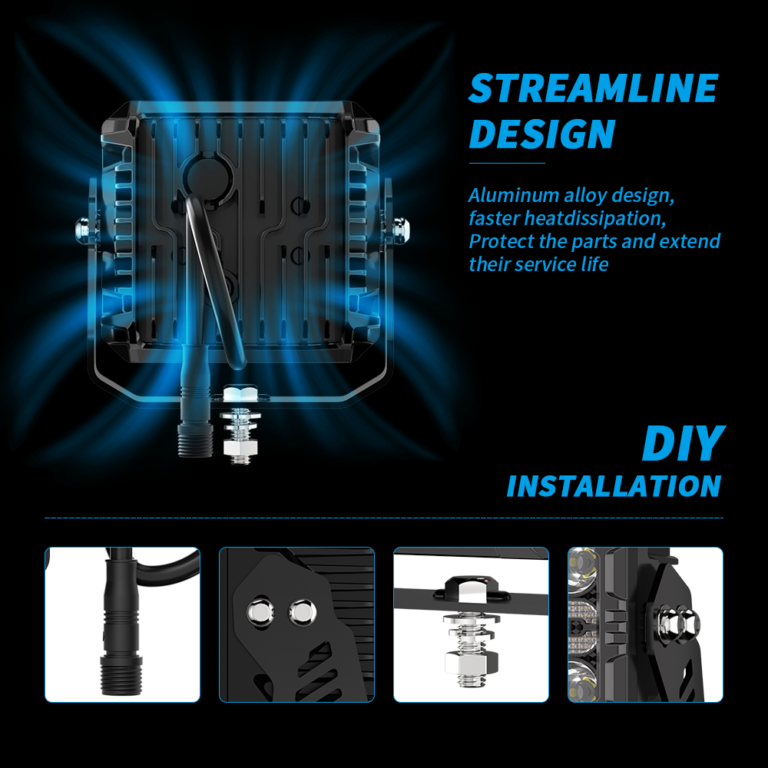

Mounting Type
Side-supported U-shaped bracket

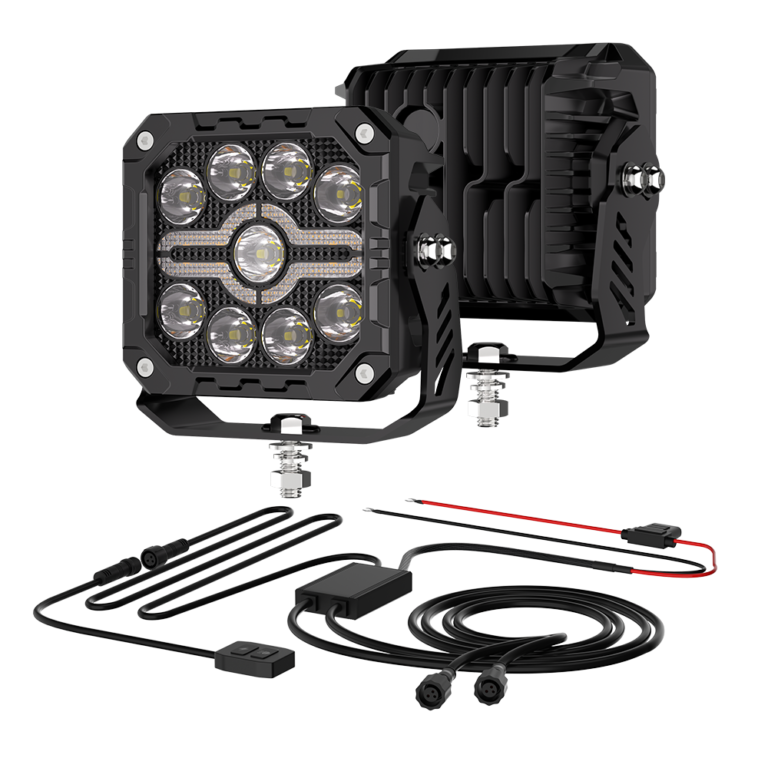

Product Configuration
Set + wiring harness
Package Size
318 × 256 × 85 mm
Gross Weight per Set
2600 g
Quantity per Carton
5 sets
Carton Size
465 × 340 × 275 mm
Carton Gross Weight
14 kg
