128-LED Red/Blue Low-Profile Mini Warning Bar
JB-F8-128-R+B
✓
128-LED Red/Blue Low-Profile Mini Warning Bar
Red+Blue
JB-F8-128-R+B
✓
White+Yellow
JB-F8-128-W+Y
✓
Yellow
JB-F8-128-Y
✓
JB-F8-128-R+B
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
JB-F8-128-R+B combines a 128-LED face with the compact F8 mini-bar housing for a red/blue warning configuration.
The unit keeps the warning optics, synchronized connection and mounting enclosure together, simplifying sourcing where a single low-profile assembly is preferred. Select it when 128 SMD 3030 LEDs, 12-24 V DC input and the red/blue variant are written into the equipment specification. Confirm the power connection, mounting method, selected color and local operating rules before the mini bar is assigned to a vehicle program.
Voltage
12-24V DC
LED Configuration
128 SMD 3030 LEDs
Light Color
Red+Blue (white+yellow and yellow variants also listed)
Operating Modes
Three-wire synchronized operation with constant-current control

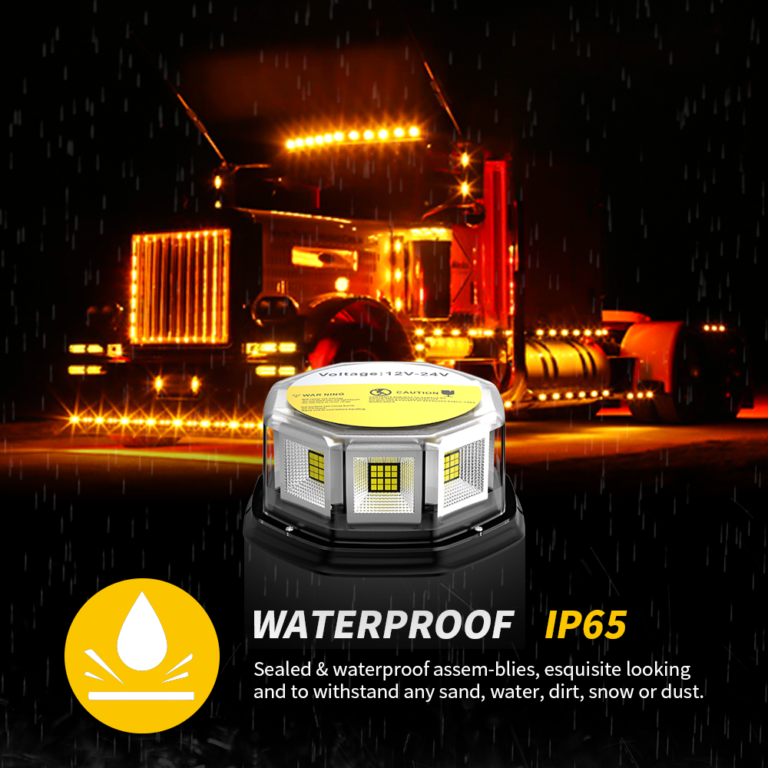

IP Rating
IP65
Housing Material
ABS
Product Form
low-profile multi-face mini warning bar
Package Size
200 x 175 x 85 mm
Gross Weight
850g
Packing Quantity
10 pcs/carton
Carton Size
45.5 x 37 x 21.5 cm
Carton Gross Weight
9Kg
