4-Piece 4-LED Manual-Switch Strobe Light Kit
I-BS-M4-4
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details

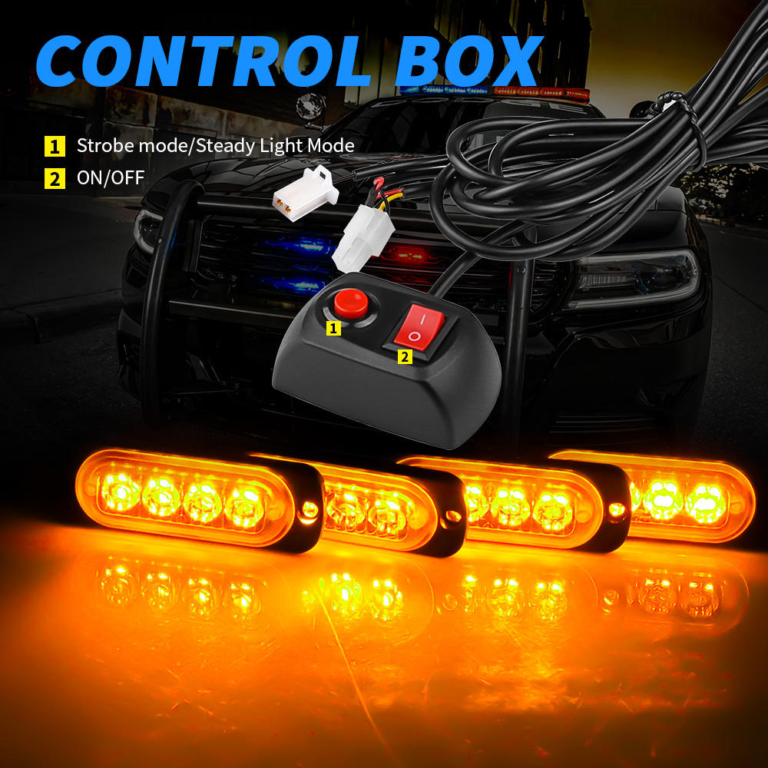

The 18-mode control system coordinates the four 4-LED heads, avoiding the need to operate each mounting point independently. I-BS-M4-4 gives installers four small warning heads, a central controller and a direct manual switching interface for an in-cab or equipment-panel installation.
Choose this entry-level head layout when the project calls for a complete four-point kit with 12 V input but does not require wireless mode control. Lock the switch position, controller location, cable routes and selected color variant together so the four heads remain one coordinated installation.
Voltage
12V DC
Rated Power
16W
Measured Current
0.46A
LED Configuration
4 LEDs per lighthead x 4 lightheads
Light Color
White / Yellow / Red / Blue / White+Yellow / Red+Blue
Operating Modes
Steady + strobe, 18 modes with manual switching
IP Rating
IP65
Housing Material
ABS
Product Form

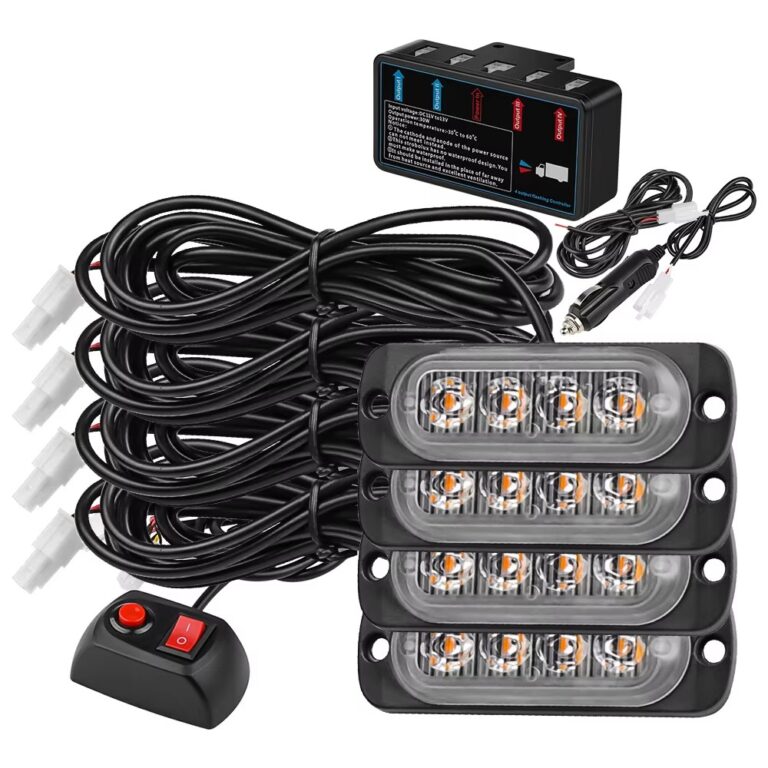

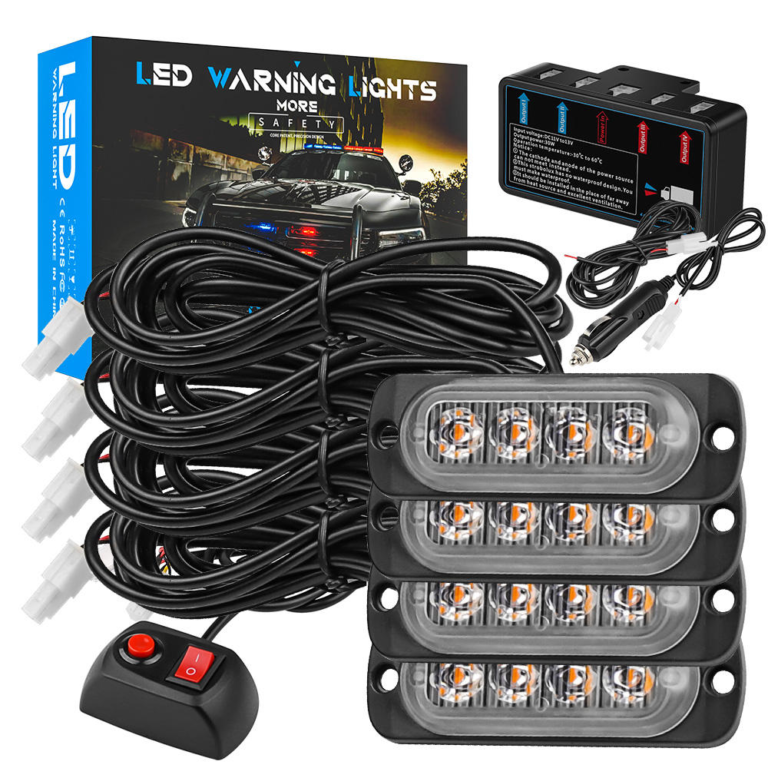

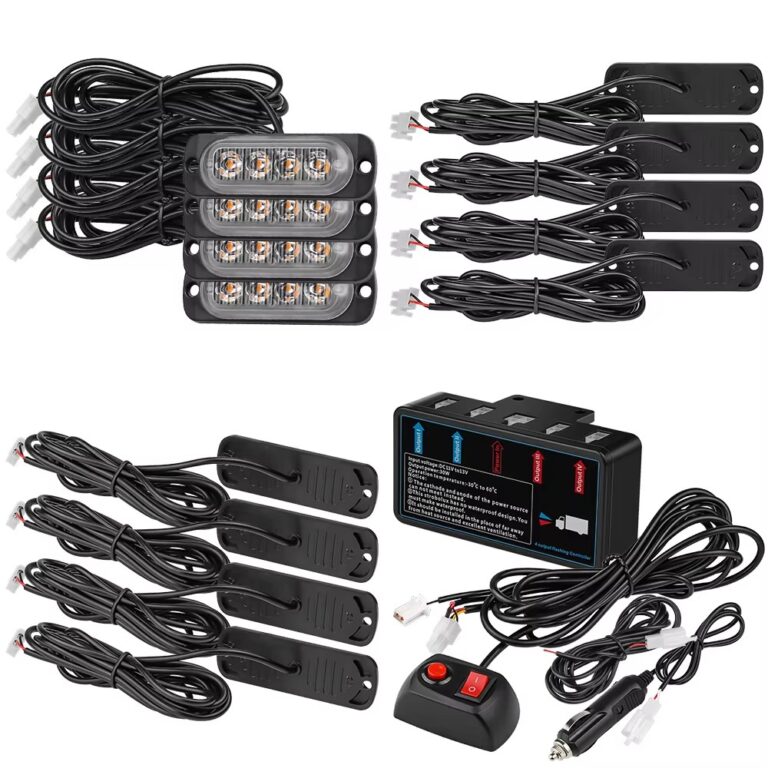

four-piece strobe lighthead kit with wired controller and switch
Package Size
210 x 160 x 60 mm
Gross Weight
550g
Packing Quantity
20 pcs/carton
Carton Size
44 x 34 x 33 cm
Carton Gross Weight
11.5Kg
