BUILT FOR AUXILIARY LIGHTING
A practical wiring solution for auxiliary LED lighting, with 12–60 V input support, 3 m cabling and wired controller. Check the listed current and load limits before installation.

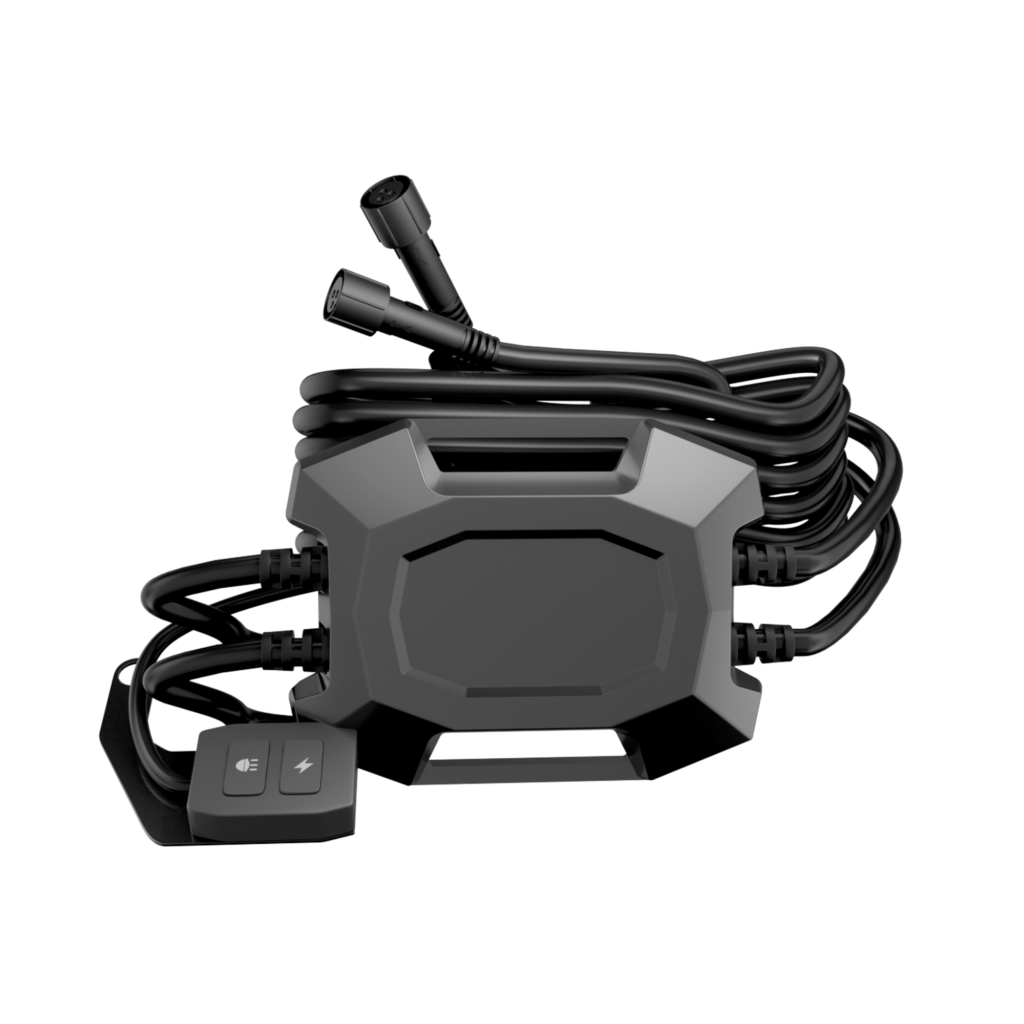

Dual-Lead 12–60V LED Light Wiring Harness with Wired Controller – XS-M-2
XS-M-2
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
Description
The XS-M-2 is an LED auxiliary-light wiring harness designed to simplify power and control connections for vehicle lighting. It uses 2×0.5 mm² cable, a 3 m harness and supports 12–60 V with a recommended load of 40 W. The listed current range is 0–8 A, and the set includes a wired controller.
Installation-Focused Accessory
Match the harness to the connected lamps and vehicle electrical system using the voltage, current and load limits shown above. It is a practical accessory for auxiliary driving, off-road and work-light installations where a dedicated harness helps keep wiring organized.
Wire Specification
2x0.5 mm²
Wire Length
3 m
Configuration
2-circuit, 0.5 mm²
Recommended Load
40 W
Current Range
0–8 A
Operating Voltage
12–60 V
Included Control / Hardware
Wired controller
Lead Configuration
2 in 1
Package Size
185 × 82 × 89 mm
Gross Weight / Set
247 g
Carton Quantity
50 pcs
Carton Size
470 × 440 × 400 mm
Carton Gross Weight
12.9 kg
