8-Optic Round-Lens Bar LED Work Light

White+Yellow

In stock

45C-BW-F6X

Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support Sea · Air · Land Freight
Technical & After-Sales Support

Product details

A clearly defined eight round optics in a slim row sets the 8-Optic Round-Lens Bar LED Work Light apart within a slim rectangular bracket-mounted format. Its catalog-listed spot+drl pattern is positioned for task illumination with a separately visible accent or secondary-light element. Its profile is most useful when the optical arrangement and available installation space are evaluated together.

The model is differentiated for cases in which the visible amber or dual-color element is required alongside the main work-light face, while the slim rectangular bracket-mounted housing and eight round optics in a slim row match the available mounting position. It is relevant to custom equipment builds and upfits that call for a verified white/amber configuration. Before release, confirm that the power system, selected position, adjustment angle and target zone suit this configuration.

Material Aluminum
Input Voltage 9-36V

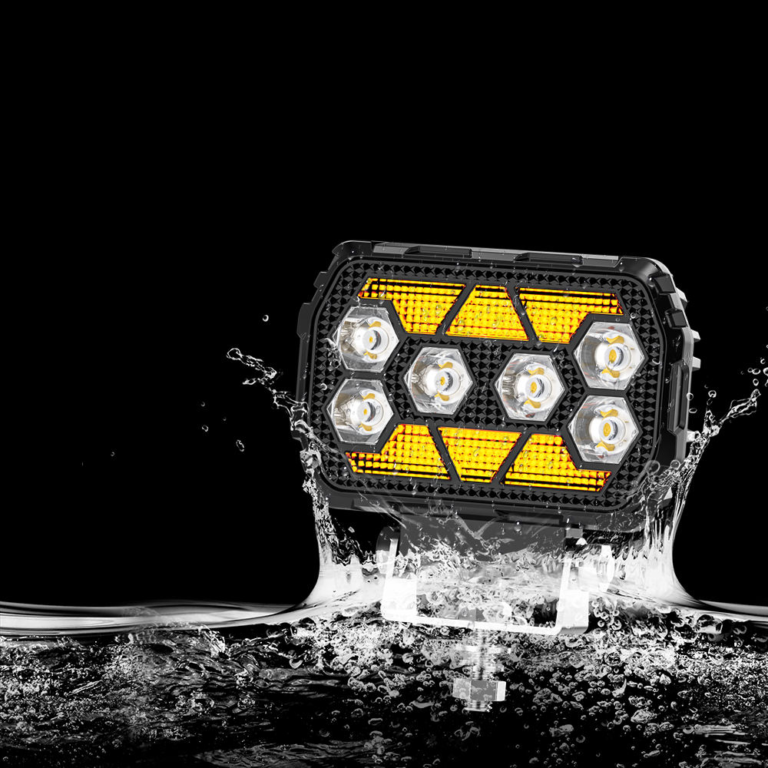

Ingress Protection IP68/IP69K
LED Configuration Main light — 6 × 5 W (SMD 陶瓷3535) DRL — 22 × 0.5 W (SMD 3030)
Rated Power 24W
Operating Current 2A
Theoretical Luminous Flux 6000LM
Light Color White+Amber

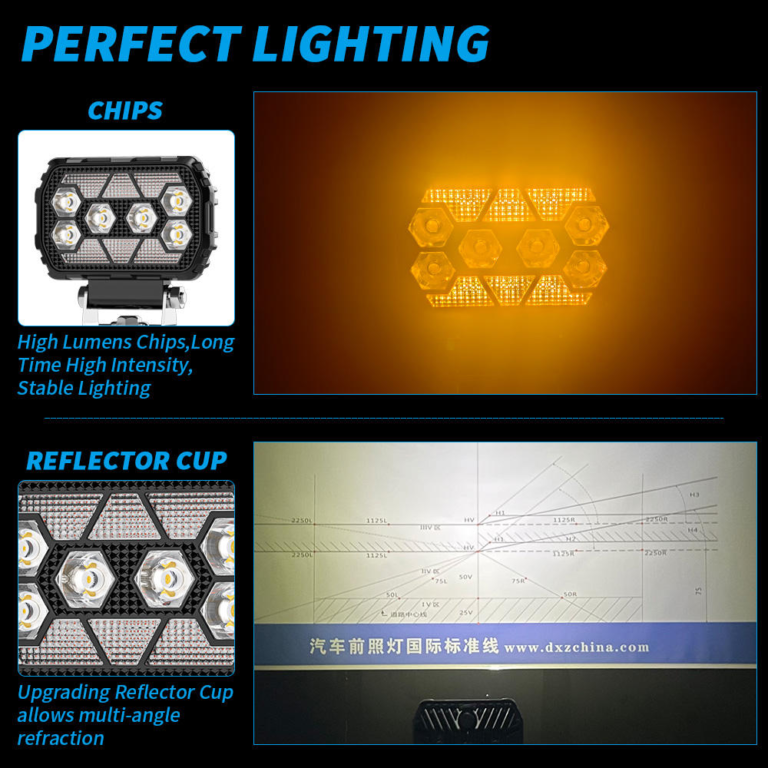

Beam Pattern Spot+DRL
Cable 26cm
Certificate Listing CE /ECE R10
Package Dimensions 130 × 130 × 60 mm
Gross Weight Per Set 470g

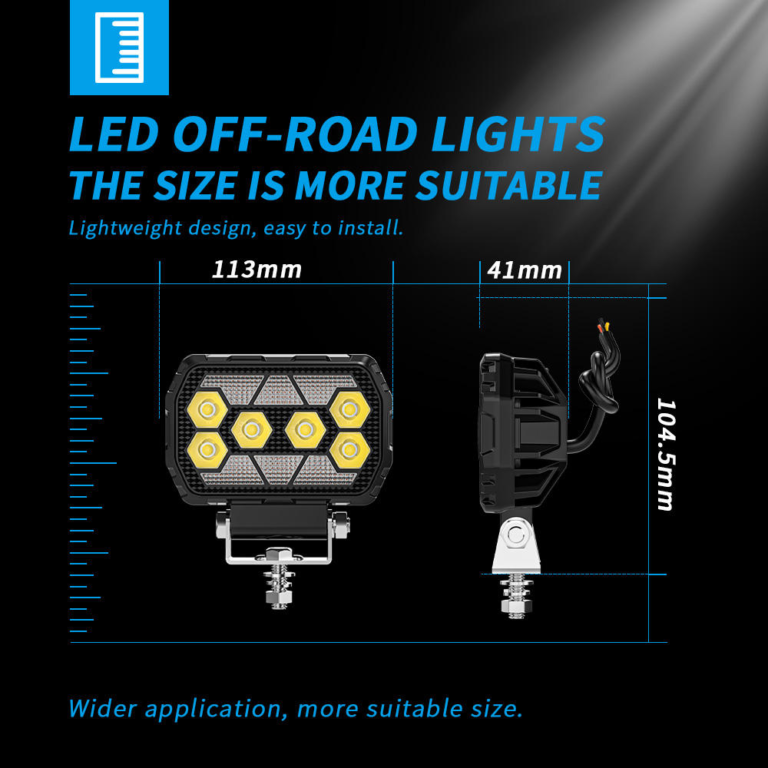

Dimensions

4.5´LED WORK LIGHTS
