9-Optic Textured Square Spot LED Work Light

White

In stock

H-MINI-Y-19

Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support Sea · Air · Land Freight
Technical & After-Sales Support

Product details

This square bracket-mounted 9-Optic Textured Square Spot LED Work Light uses nine textured optics in a square housing as its defining optical arrangement. A flood distribution places this model in applications centered on broad work-area illumination around mobile machinery. This configuration supports a focused comparison based on mounting geometry, optical face and intended work area.

Choose this model when a broad catalog-listed flood pattern and this specific optical-face layout match the nearby task zone, while the square bracket-mounted housing and nine textured optics in a square housing match the available mounting position. Its use case centers on construction, agricultural, utility and service equipment work zones. The purchase decision should include the available circuit, physical space, desired angle and location of the visual target.

Material Aluminum
Input Voltage 9-36V
Ingress Protection IP65
LED Configuration Main light — 19 × 1 W (SMD 3030)
Rated Power 13.44W
Operating Current 1.12A
Theoretical Luminous Flux 1900LM
Light Color White
Beam Pattern Flood
Cable 22cm
Certificate Listing CE /ECE R10

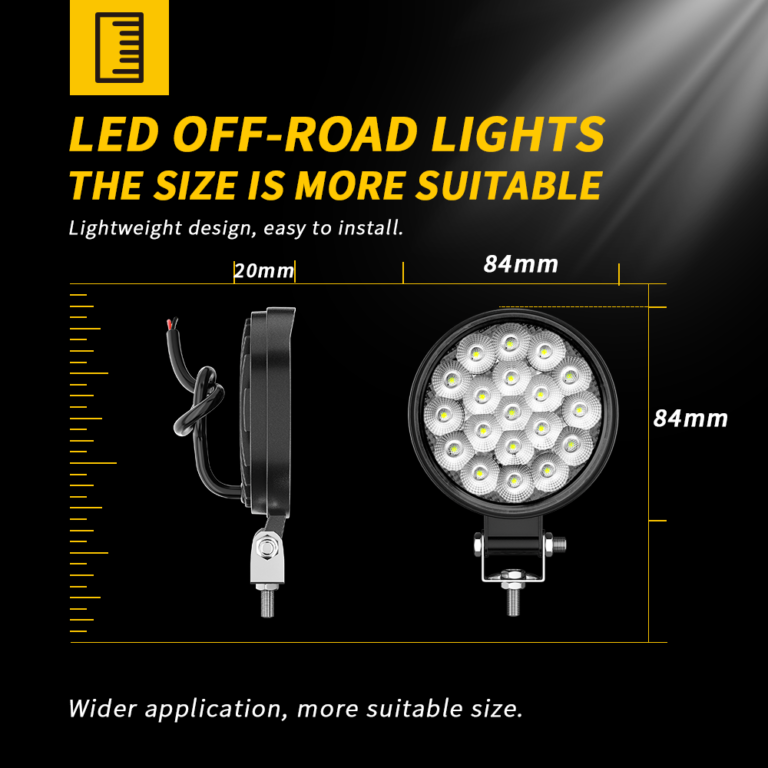

Package Dimensions 110 × 88 × 35 mm
Gross Weight Per Set 130g
