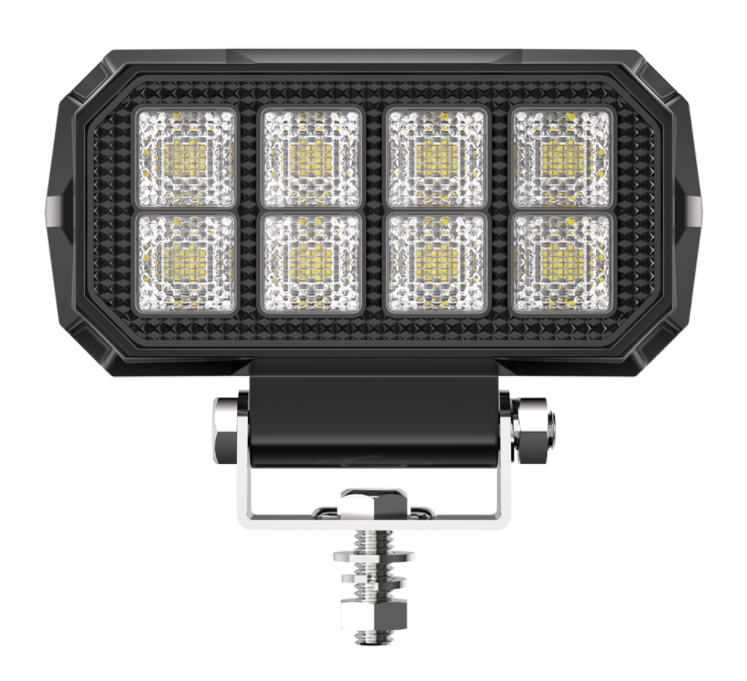

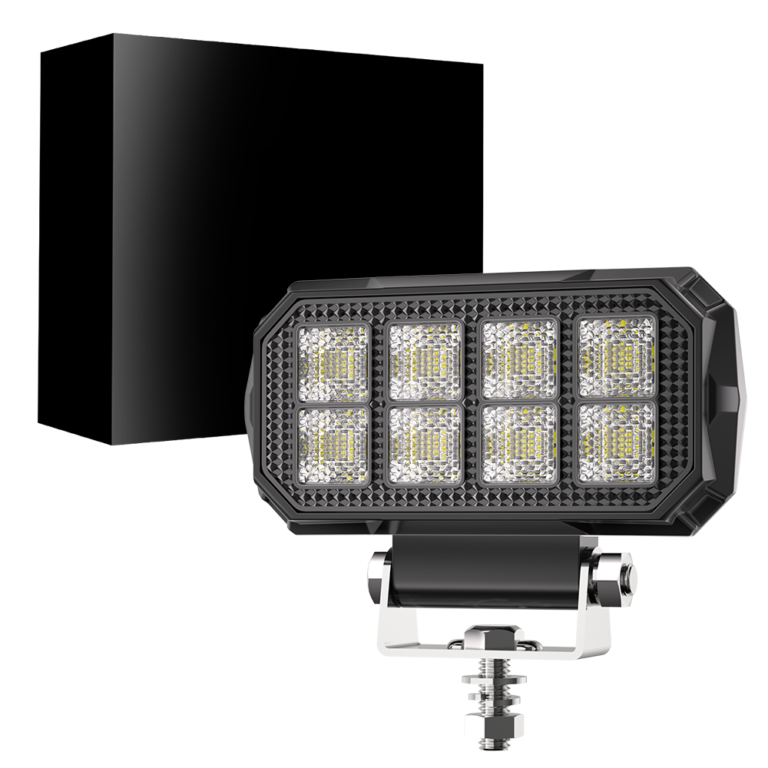

80-Cell Quad-Cluster Flood LED Work Light

White+Yellow

In stock

35C-BW-F-F29

Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support Sea · Air · Land Freight
Technical & After-Sales Support

Product details

For equipment integration, the 80-Cell Quad-Cluster Flood LED Work Light provides four large square modules in a square bracket-mounted housing. The optical configuration is paired with a catalog-listed flood beam for task illumination with a separately visible accent or secondary-light element. This combination gives planners a direct way to compare face layout, mounting envelope and the nearby work zone.

It earns its place in a comparison when the visible amber or dual-color element is required alongside the main work-light face, while the square bracket-mounted housing and four large square modules match the available mounting position. This choice applies to custom equipment builds and upfits that call for a verified white/amber configuration. For the finished build, validate voltage, cable routing, mounting room and how the light face will be aimed at the task.

Material Aluminum
Input Voltage 9-36V

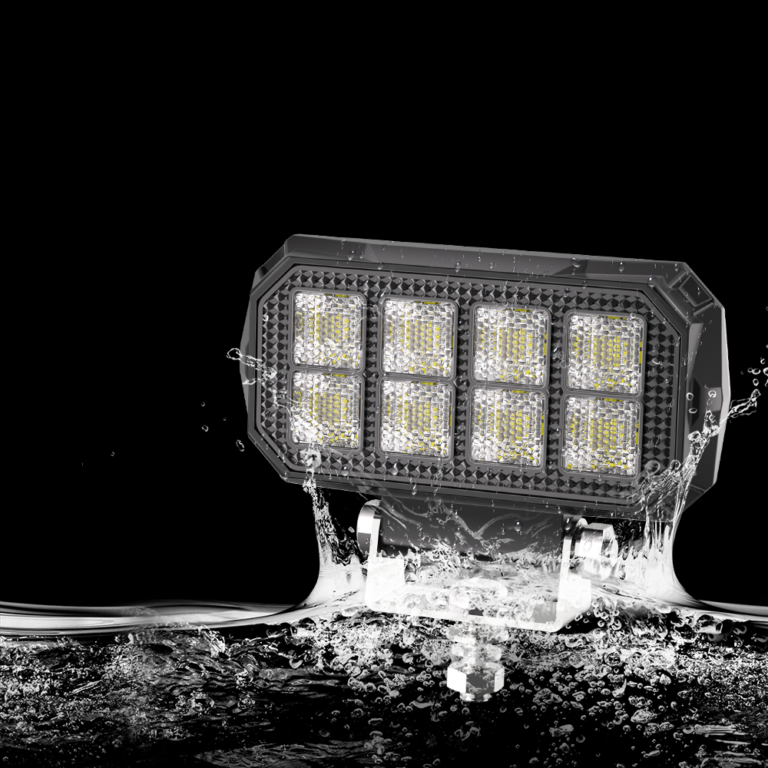

Ingress Protection IP68/IP69K
LED Configuration Main light — 32 × 1 W (SMD 3030) DRL — 6 × 0.5 W (SMD 3030)
Rated Power 24W
Operating Current 1.97A
Theoretical Luminous Flux 3500LM
Light Color White+Yellow
Beam Pattern Flood
Cable 25cm
Certificate Listing CE /ECE R10
Package Dimensions 130 × 130 × 60 mm
Gross Weight Per Set 430g

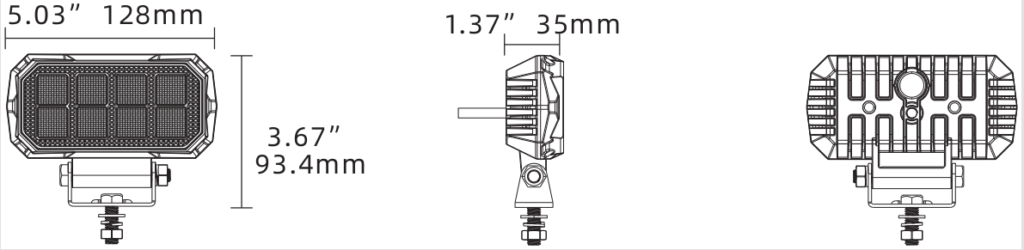

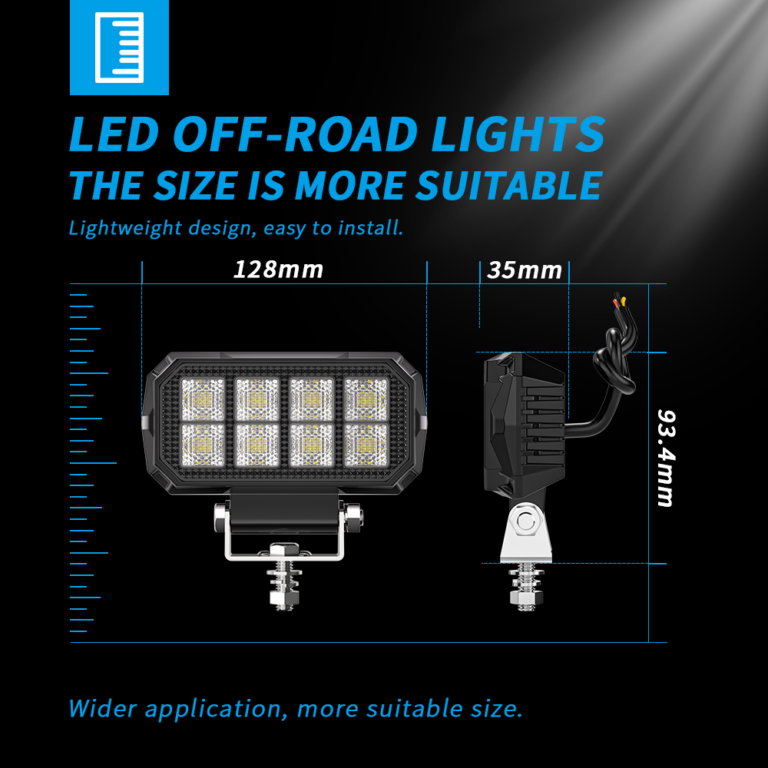

Dimensions
