4-Piece C-Style 12-LED Manual Strobe Kit
I-BS-M4-C-12
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details

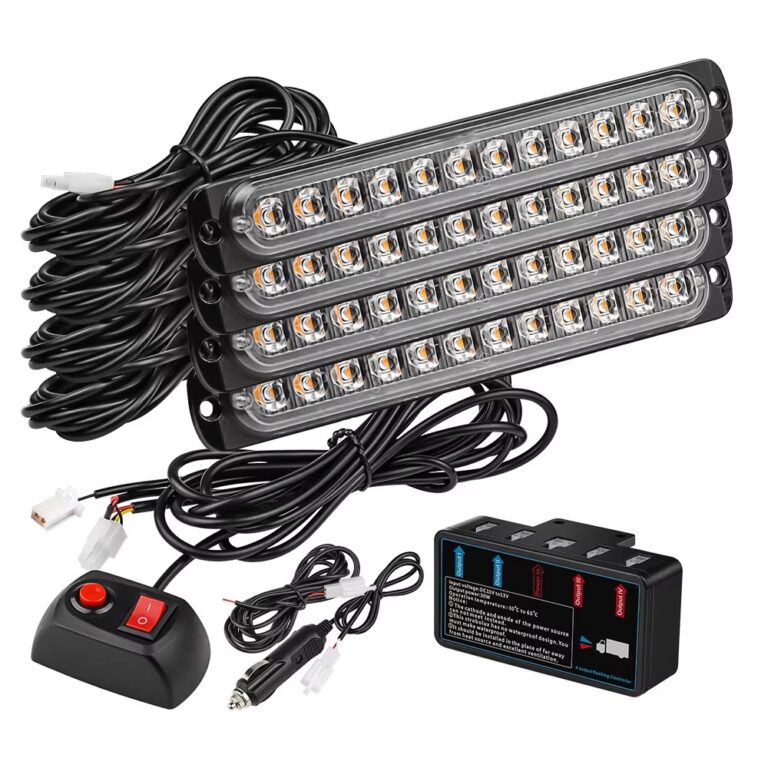

I-BS-M4-C-12 gives the manual M4 system a distinct C-style head, with twelve LEDs in each of four aluminum lightheads. Select this SKU when the C-style face fits the brand range or installation design and the 710 g, 48 W configuration is the correct purchasing record.

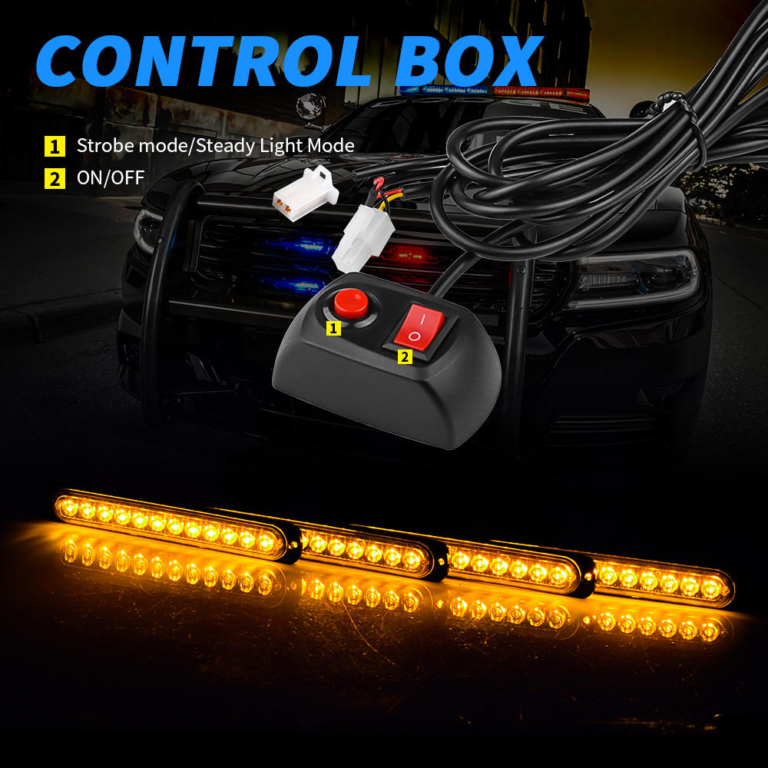

A central controller and wired switch manage eighteen operating modes across all four positions on a 12 V electrical system. Lock the switch position, controller location, cable routes and selected color variant together so the four heads remain one coordinated installation.
Voltage
12V DC
Rated Power
48W
Measured Current
0.46A
LED Configuration
12 LEDs per lighthead x 4 lightheads

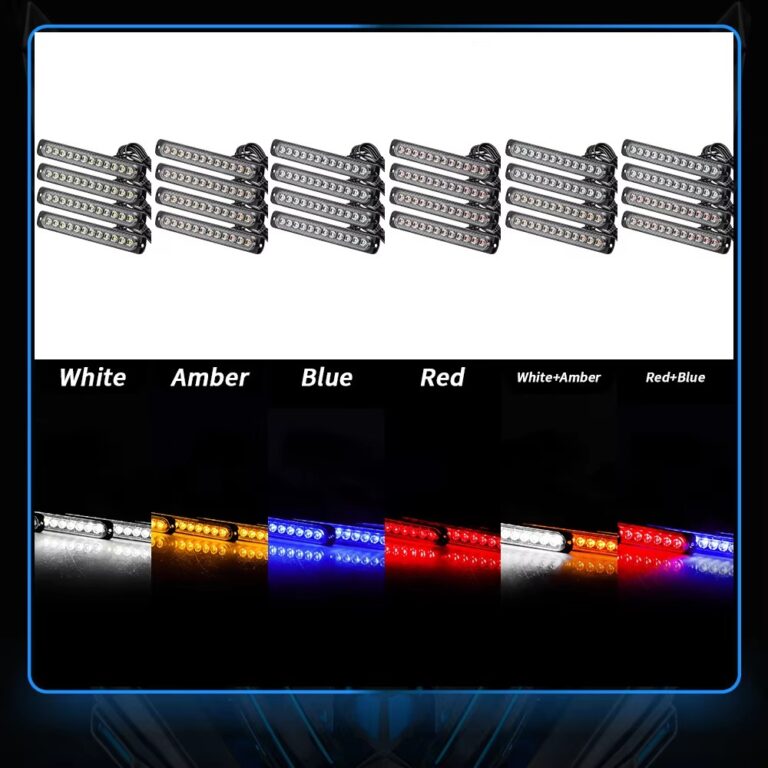

Light Color
White / Yellow / Red / Blue / White+Yellow / Red+Blue
Operating Modes
Steady + strobe, 18 modes with manual switching
IP Rating
IP65
Housing Material
Aluminum
Product Form

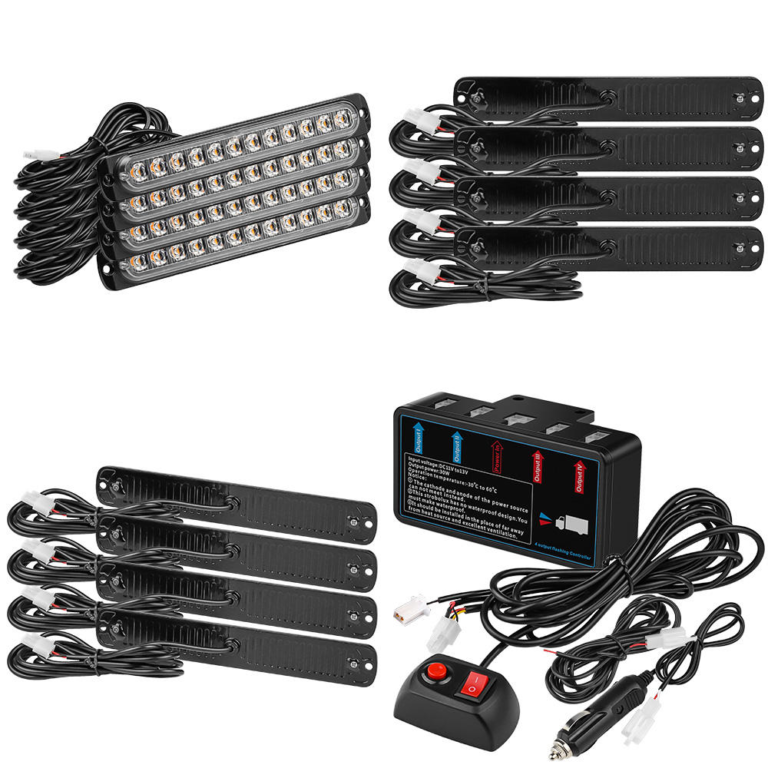

four-piece C-style strobe kit with wired controller
Package Size
210 x 160 x 60 mm
Gross Weight
710g
Packing Quantity
20 pcs/carton
Carton Size
44 x 34 x 33 cm
Carton Gross Weight
14.7Kg
