4-Piece 20-LED Manual-Switch Strobe Light Kit
I-BS-M4-20
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details
The aluminum heads, shared controller and eighteen manually selected modes form a complete 12 V warning system for distributed mounting. I-BS-M4-20 uses twenty LEDs in each of four elongated lightheads, creating the longest optical face in the manual M4 kit group.
Choose it when the installation has room for the long heads and the 40 W configuration is the intended bill-of-materials entry. Lock the switch position, controller location, cable routes and selected color variant together so the four heads remain one coordinated installation.
Voltage
12V DC
Rated Power
40W
Measured Current
0.46A
LED Configuration
20 LEDs per lighthead x 4 lightheads
Light Color

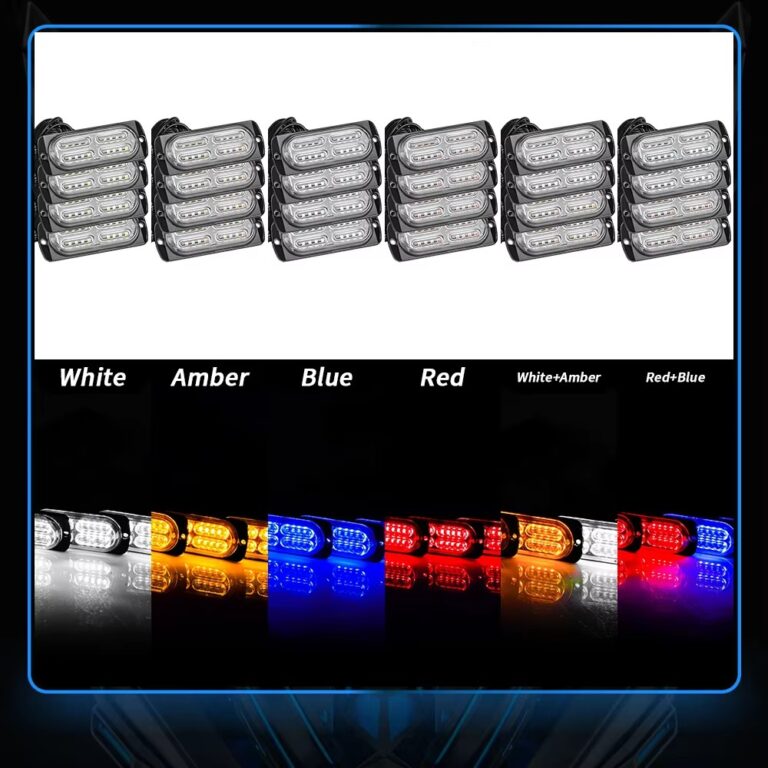

White / Yellow / Red / Blue / White+Yellow / Red+Blue
Operating Modes

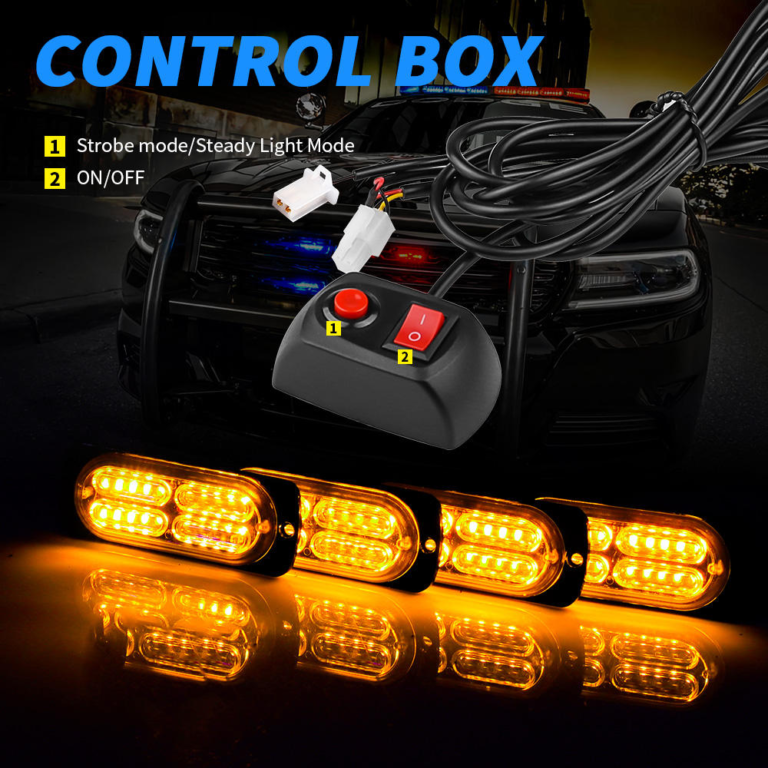

Steady + strobe, 18 modes with manual switching
IP Rating
IP65
Housing Material
Aluminum
Product Form

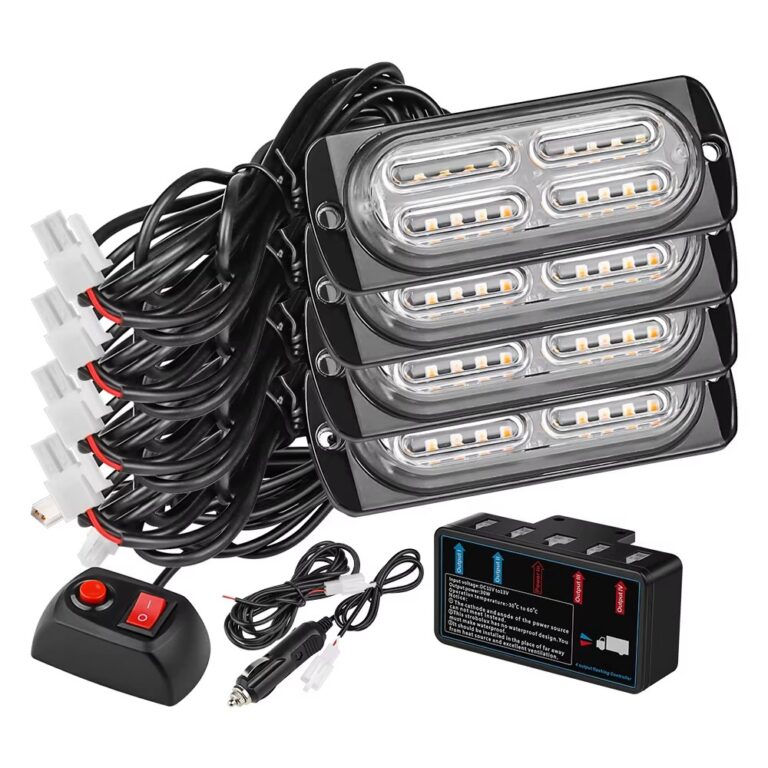

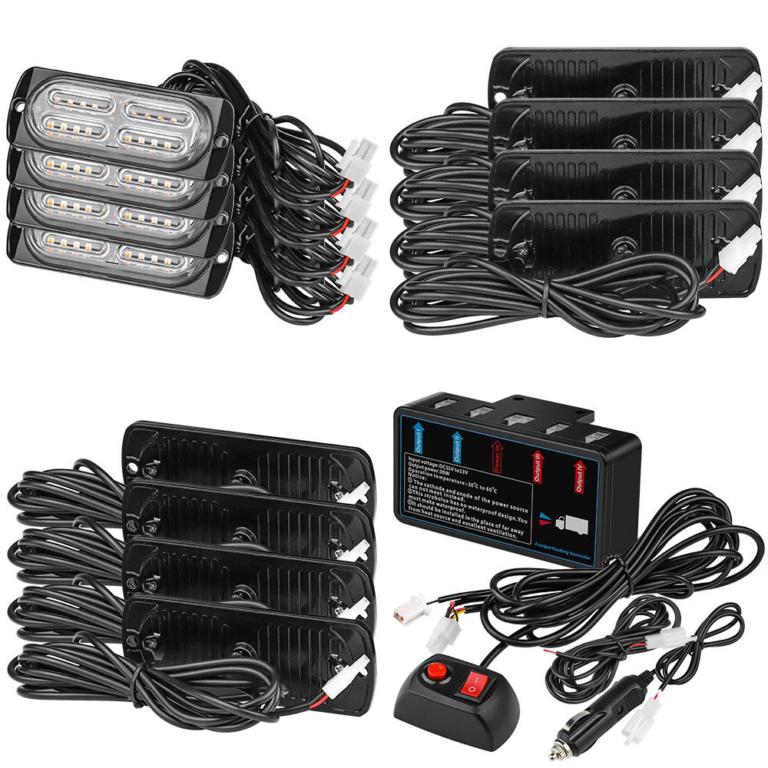

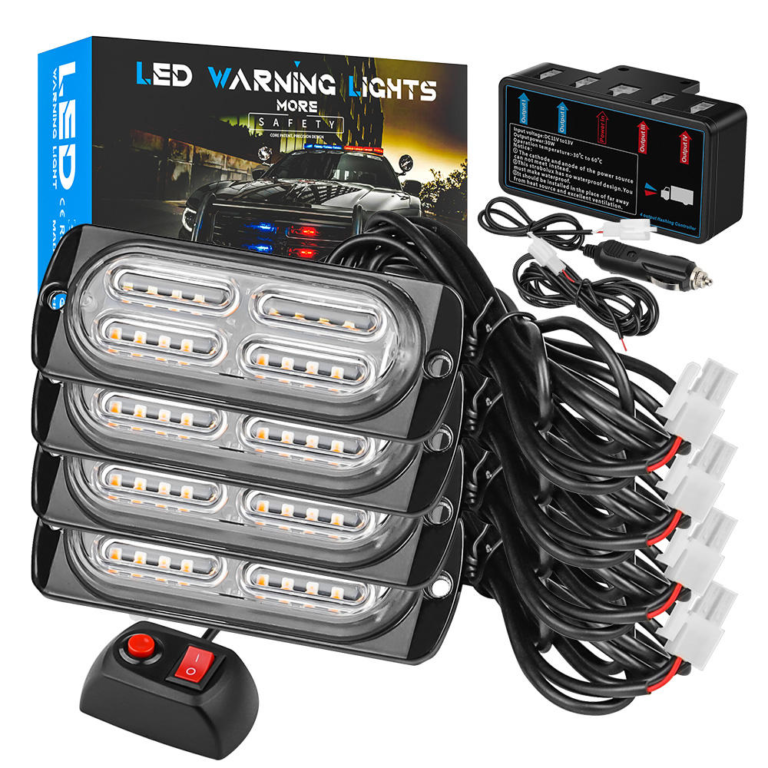

four-piece long-face strobe kit with wired controller
Package Size
210 x 160 x 60 mm
Gross Weight
680g
Packing Quantity
20 pcs/carton
Carton Size
44 x 34 x 33 cm
Carton Gross Weight
14.1Kg
