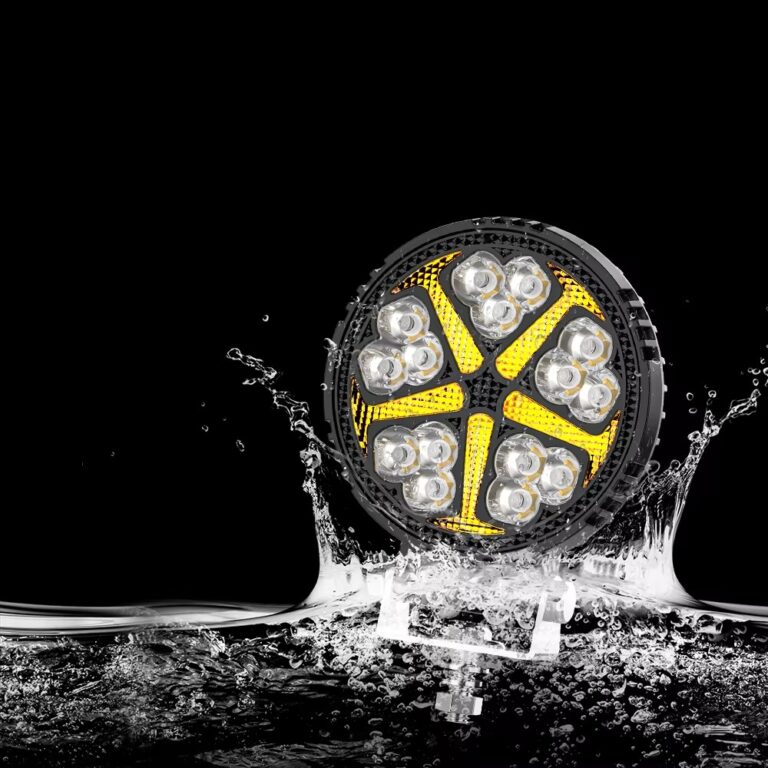

38-Cell Multi-Zone Combo LED Work Light

White+Yellow

In stock

4C-BW-Y15

Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support Sea · Air · Land Freight
Technical & After-Sales Support

Product details

The 38-Cell Multi-Zone Combo LED Work Light is shaped around multi-zone square optic grid and a square bracket-mounted installation format. A spot+drl distribution places this model in applications centered on task illumination with a separately visible accent or secondary-light element. This makes the lamp a layout-led choice for a defined equipment position instead of a general-purpose size substitute.

This layout is appropriate when the visible amber or dual-color element is required alongside the main work-light face, while the square bracket-mounted housing and multi-zone square optic grid match the available mounting position. Its use case centers on custom equipment builds and upfits that call for a verified white/amber configuration. Good integration depends on checking power compatibility, structure clearance, orientation and the working area that needs light.

Material Aluminum
Input Voltage 9-36V
Ingress Protection IP68/IP69K
LED Configuration Main light — 15 × 1.5 W (SMD 3030) DRL — 30 × 0.5 W (SMD 3030)
Rated Power 17.3W
Operating Current 1.44A
Theoretical Luminous Flux 3000LM
Light Color White+Amber
Beam Pattern Spot+DRL
Cable 26cm
Certificate Listing CE /ECE R10
Package Dimensions 130 × 130 × 60 mm
Gross Weight Per Set 459g

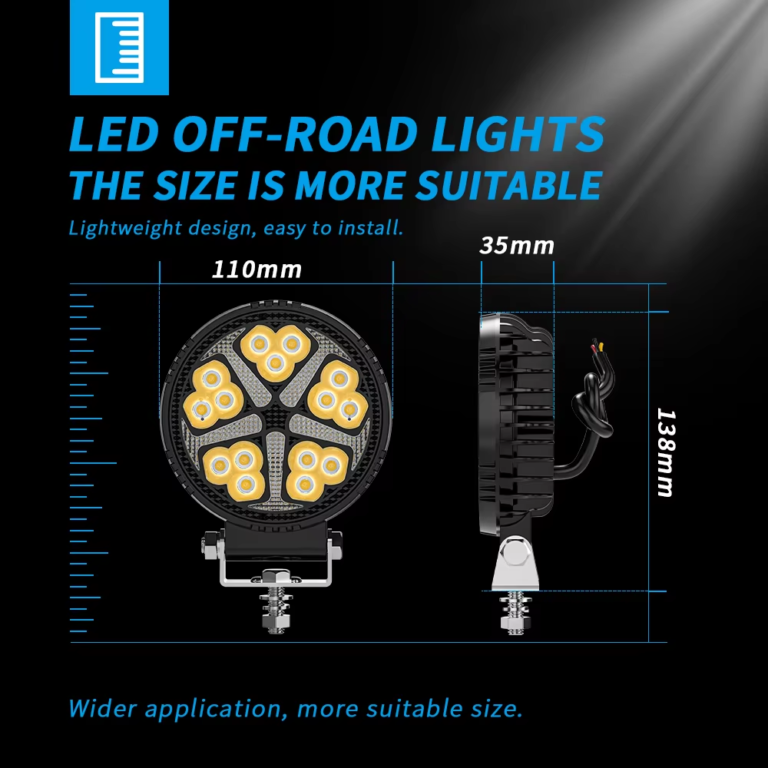

Dimensions
Heat Map

4´LED WORK LIGHTS
