36-Cell Oval Eight-Module Flood LED Work Light

White

In stock

H-MINI-F-28

Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support Sea · Air · Land Freight
Technical & After-Sales Support

Product details

With eight square flood modules in an oval face, the 36-Cell Oval Eight-Module Flood LED Work Light uses a oval bracket-mounted layout for equipment-mounted task lighting. A spot+flood distribution places this model in applications centered on combined near-field coverage and directed task visibility. The lamp’s selection logic rests on its visible arrangement and the defined installation location on the equipment.

The model is differentiated for cases in which the task needs both local coverage and a directed component from one optical face, while the oval bracket-mounted housing and eight square flood modules in an oval face match the available mounting position. Its use case centers on machinery positions where both the immediate zone and a forward target matter. Confirm the vehicle circuit, chosen mounting point, adjustment range and sight line so the lamp serves the intended task.

Material Aluminum
Input Voltage 9-36V
Ingress Protection IP65
LED Configuration Main light — 28 × 0.5 W (SMD 3030)
Rated Power 12W
Operating Current 1A
Theoretical Luminous Flux 2240LM
Light Color White
Beam Pattern Spot+Flood
Cable 22cm
Certificate Listing CE /ECE R10

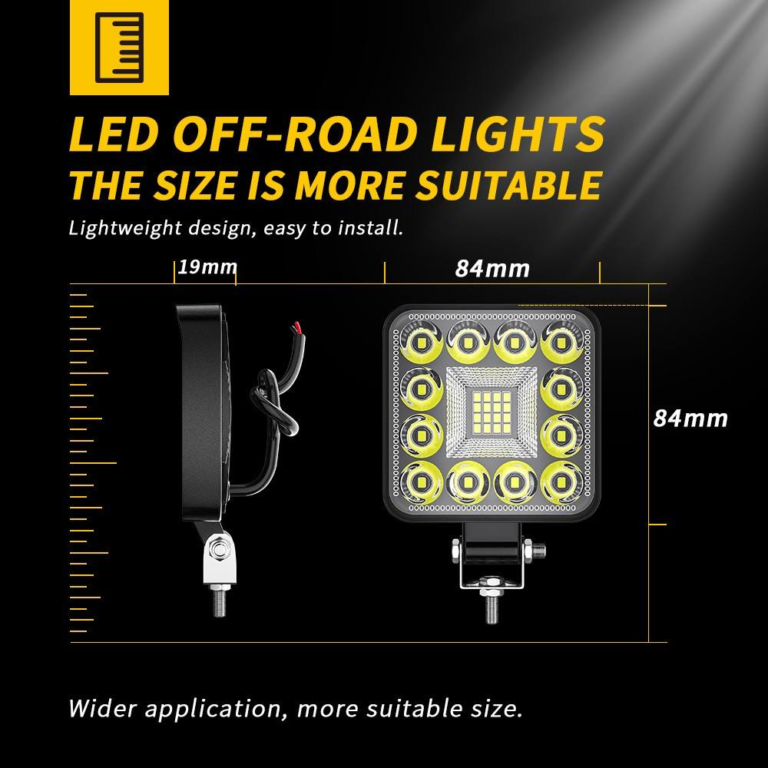

Package Dimensions 110 × 88 × 35 mm
Gross Weight Per Set 130g
