32cm 12-LED Linear Warning Light Strip
GD-3030-6LED-2
✓
32cm 12-LED Linear Warning Light Strip
32CM Yellow
GD-3030-6LED-2
✓
62.5CM Yellow
GD-3030-6LED-4
✓
92.5CM Yellow
GD-3030-6LED-6
✓
123.5CM Yellow
GD-3030-6LED-8
✓
32CM White+Yellow
GD-3030-SS-6LED-2
✓
62.5CM White+Yellow
GD-3030-SS-6LED-4
✓
92.5CM White+Yellow
GD-3030-SS-6LED-6
✓
123.5CM White+Yellow
GD-3030-SS-6LED-8
✓
GD-3030-6LED-2
Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support
Sea · Air · Land Freight
Technical & After-Sales Support
Product details

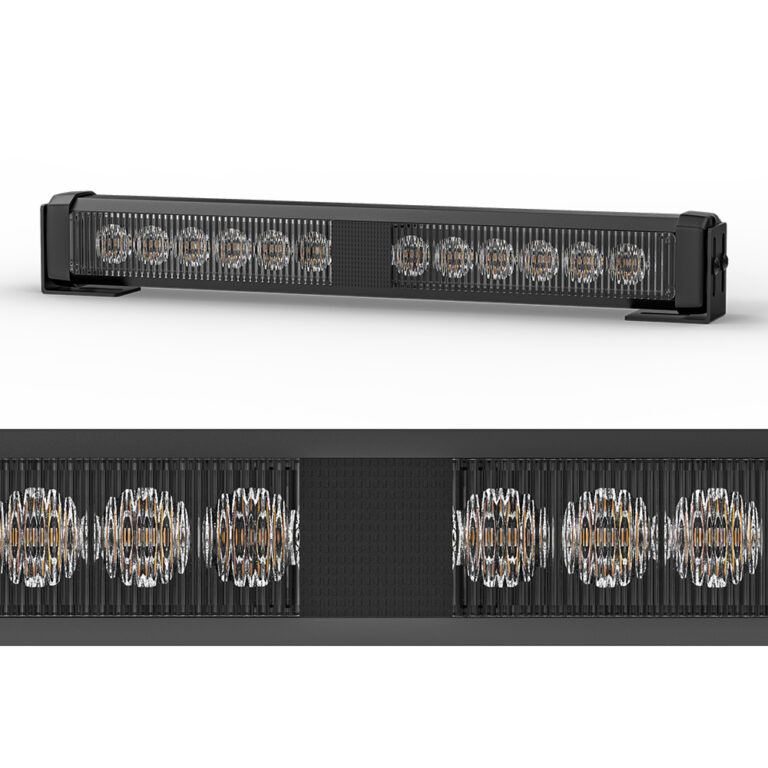

GD-3030-6LED-2 extends the separated-cluster concept to a 32 cm housing with six LEDs in each of two optical sections. The strip is offered in yellow or white-plus-yellow configurations and supports steady/strobe operation on 12-24 V DC with an aluminum, IP67 product platform.
Specify it when the mounting run can accept 32 cm and the twelve-LED, two-cluster layout provides the intended visual spacing. Check overall length, cable exit, surface clearance, selected color and control wiring against the body drawing before the strip is released for production.
Voltage
12-24V DC
Rated Power
3W
Current
0.25A
LED Configuration
12 SMD 3030 LEDs across 2 clusters
Light Color
Yellow / White+Yellow (yellow strobe)
Operating Modes
Steady + strobe
IP Rating
IP67
Housing Material
Aluminum
Product Form
slim two-cluster linear surface-mount strip
Product Length
32 cm
Package Size
490 x 60 x 50 mm
Packing Quantity
20 pcs/carton
Carton Size
50.5 x 26.5 x 27.5 cm
LED Warning Light
