26-Cell Red-Blue Square LED Work Light

White+Yellow

In stock

57C-BW-9

Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support Sea · Air · Land Freight
Technical & After-Sales Support

Product details

A square bracket-mounted structure and split white optics with a red-blue center strip define the 26-Cell Red-Blue Square LED Work Light. A spot+drl distribution places this model in applications centered on task lighting with a visibly separate red-blue auxiliary element. Its visible architecture provides a practical reference for matching the lamp to a particular work-zone direction.

This model is the stronger fit where the separate red-blue auxiliary element is part of the required configuration, while the square bracket-mounted housing and split white optics with a red-blue center strip match the available mounting position. Its use case centers on special-purpose equipment builds where the additional colored element is explicitly required. Specify it only after the machine’s power supply, available envelope, aiming position and work-zone direction are confirmed.

Material Aluminum
Input Voltage 9-36V

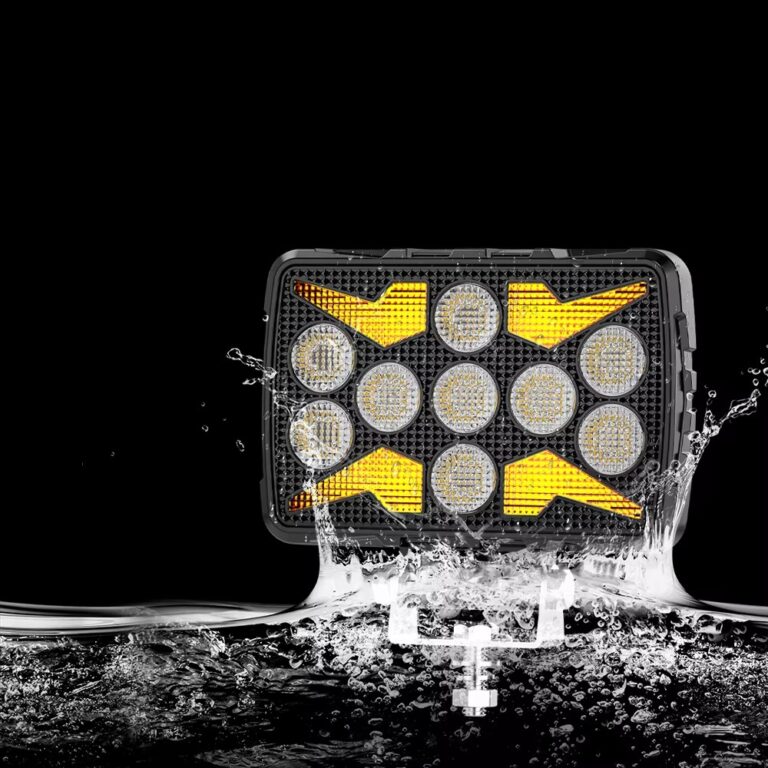

Ingress Protection IP68/IP69K
LED Configuration Main light — 36 × 1.5 W (SMD 3030) DRL — 24 × 0.5 W (SMD 3030)
Rated Power 38W
Operating Current 3.1A
Theoretical Luminous Flux 1800LM
Light Color White+Amber
Beam Pattern Spot+DRL
Cable 26cm
Certificate Listing CE /ECE R10
Package Dimensions 170 × 130 × 60 mm
Gross Weight Per Set 700g

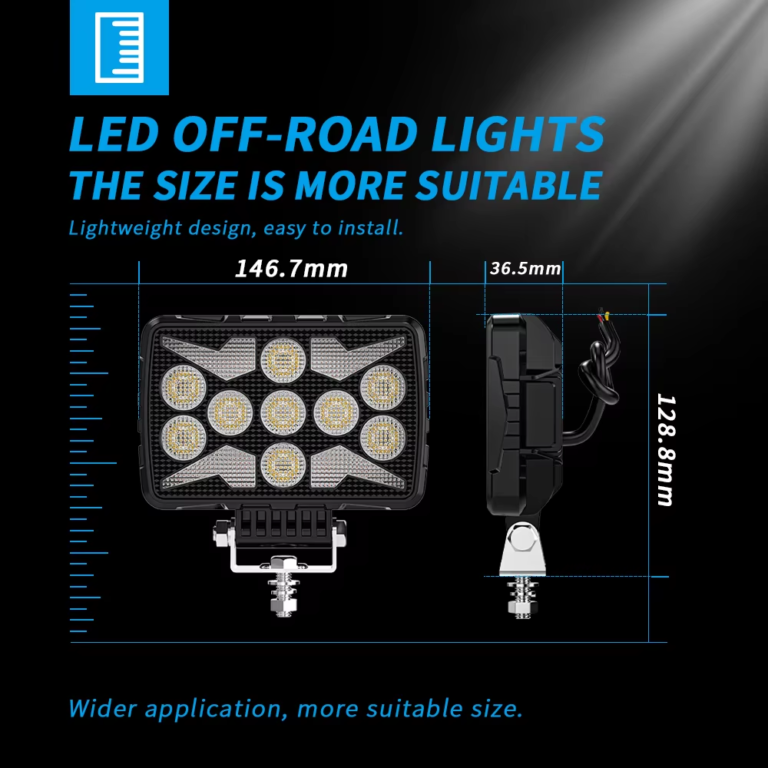

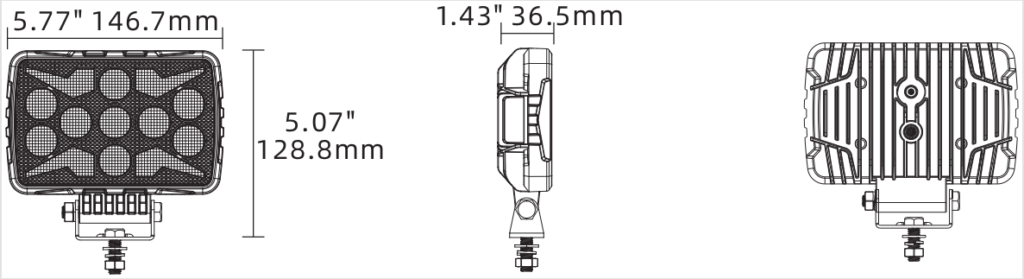

Dimensions

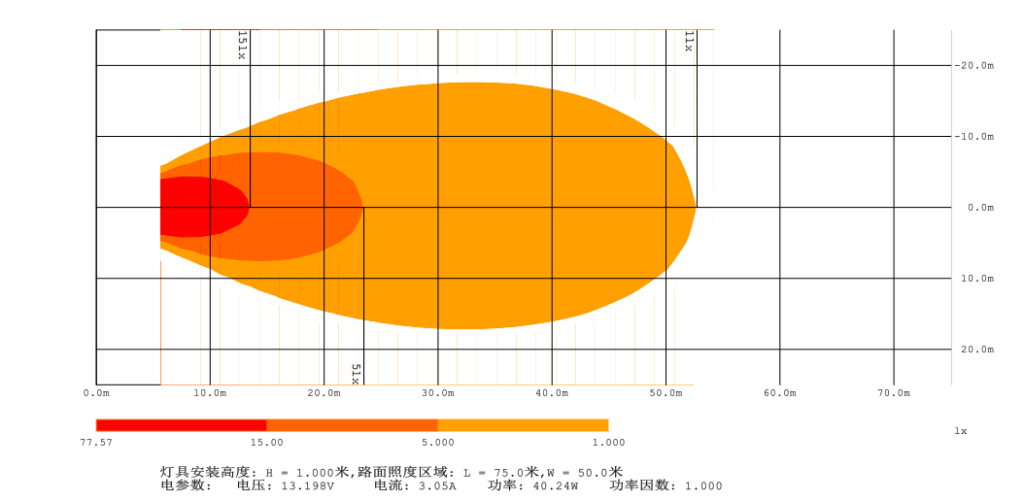

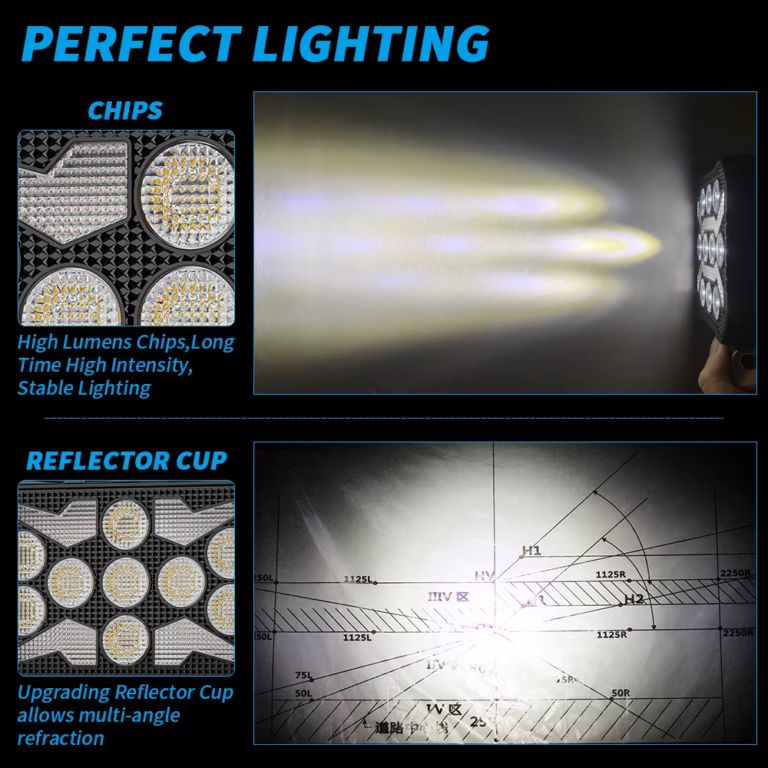

Heat Map
